TG16ES 16000rpm Micro CentrifugeMicro is useful for routine application in biotechnology, PCR, life science and clinical labs, etc. This is suitable for routine sample analysis in Medical, Hospital, and Institutional laboratories. With a wide choice of rotor and adapters, this unit is truly versatile.
Feature
- Microcomputer control with LED display, Driven by AC frequency conversion motor.
- RCF and speed separately and switching free, automatically calculate RCF.
- Up to 10 level accelerate and decelerate control.
- Displayed in seconds when the countdown time is less than one minute.
- Electronic locks with full steel inner cavity protective cover.
- Imported energy-efficient ECO friendly refrigeration system.
- One key pre-cooling function.
Product Specification
| Model | TG16ES | TGL16ES |
| Max. Speed | 16000rpm | |
| Speed Accuracy | ±20rpm | |
| Max. RCF | 19040×g | |
| Max. Capacity | 10×5ml | |
| Time Range | 0~99h59min | |
| RPM/RCF Convert | Yes | |
| Noise (dB) | ≤ 65 | ≤ 55 |
| Temperautre Range | / | -20℃~40℃ |
| Temperature Accuracy | / | ±1℃ |
| Acc/Dec | 10 Kinds | |
| Power Supply | AC 220V/110V 50HZ/60HZ | |
| Dimension | 202×208×306mm | 480×480×275mm |
| N.W./G.W. | 16KG | 48KG |
Available Rotors
| Order No | Rotor | Max speed (rpm) | Max Volume (ml) | Max RCF (g) |
| G16-1 | Angle rotor | 14000 | 4×8PCR | 12070 |
| G16-2 | Angle rotor | 13000 | 6×8PCR | 16080 |
| G16-3 | Angle rotor | 14000 | 8×8PCR | 13390 |
| G16-4 | Angle rotor | 13000 | 12×8PCR | 17220 |
| G16-5 | Angle Rotor | 15000 | 30×0.5ml | 18510 |
| G16-6 | Angle Rotor | 14000 | 40×0.5ml | 19970 |

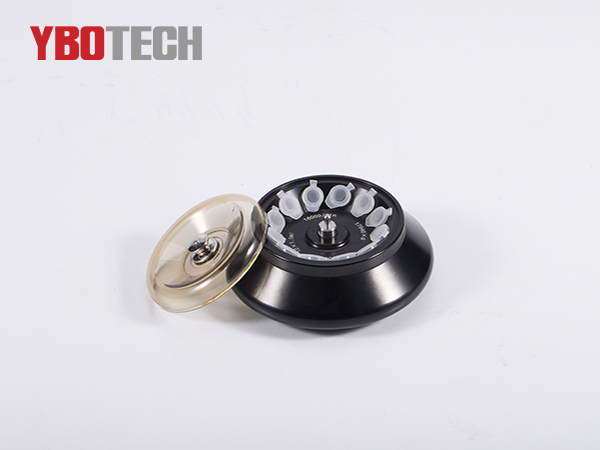

| G16-7 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |

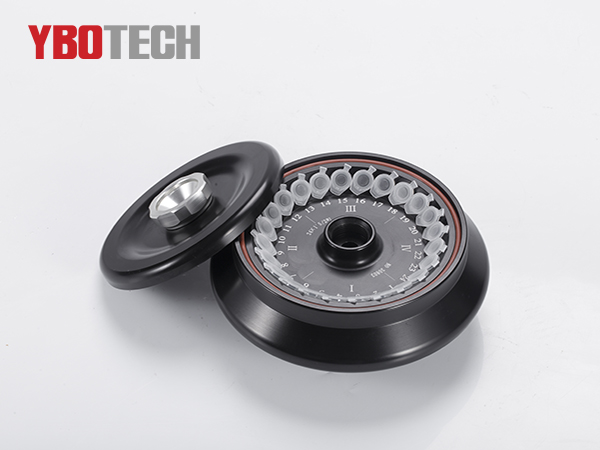

| G16-8 | Angle Rotor | 15000 | 24×1.5/2ml | 20600 |
| G16-9 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
| G16-10 | Angle Rotor | 11000 | 48×1.5/2ml | 12840 |
| G16-11 | Angle Rotor | 15000 | 16×5ml | 19350 |
| G16-12 | Angle Rotor | 14000 | 12×7ml | 16370 |
| G16-13 | Angle Rotor | 14000 | 6×10ml | 16460 |
| G16-14 | Angle Rotor | 12000 | 12×10ml | 14510 |
| G16-15 | Angle Rotor | 10000 | 12×15ml | 11840 |
| G16-16 | Angle Rotor | 5000 | 24×15ml | 3080 |
| G16-17 | Angle Rotor | 5000 | 30×15ml | 3830 |
| G16-18 | Angle Rotor | 12000 | 8×20ml | 14510 |
| G16-19 | Angle Rotor | 12000 | 6×30ml | 14000 |
| G16-20 | Angle Rotor | 11000 | 6×50ml | 13480 |
| G16-21 | Angle Rotor | 12000 | 6×70ml | 10810 |
| G16-22 | Angle Rotor | 8000 | 6×100ml | 7280 |
| G16-23 | Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |

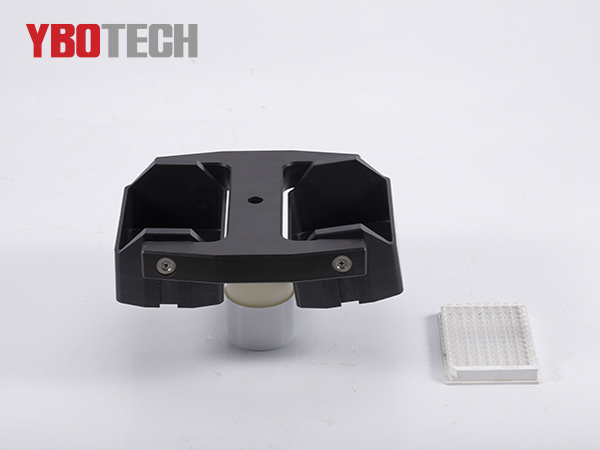

| G16-24 | Microplate rotor | 4000 | 2×3×48 Well | 2300 |
