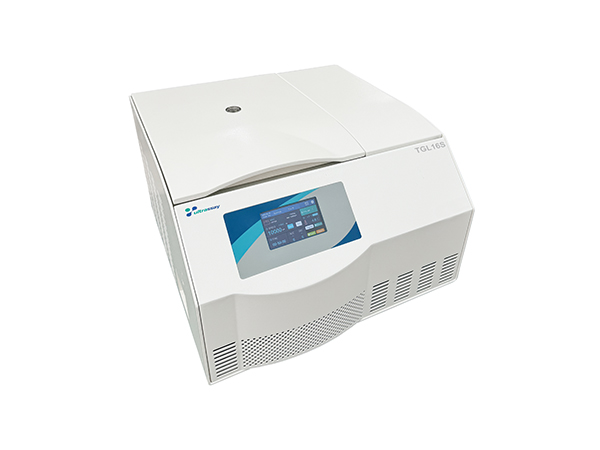

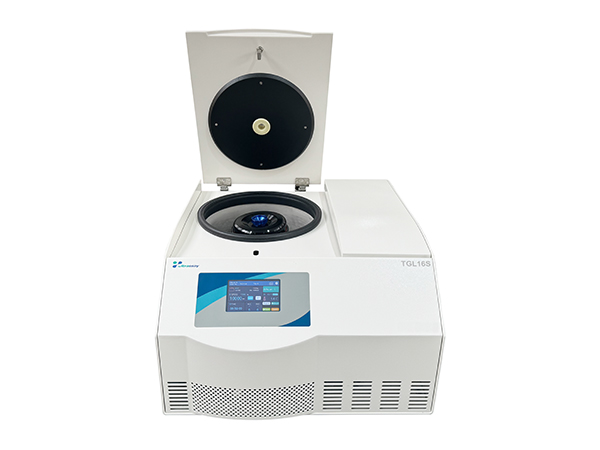

YBOTECH TGL16S 16000rpm Tabletop High Speed Refrigerated Centrifuge is useful for routine application in biotechnology, PCR, life science and clinical labs, etc. This is suitable for routine sample analysis in Medical, Hospital, and Institutional laboratories. With a wide choice of rotor and adapters, this unit is truly versatile.
Feature
- Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Microprocessor control
- 7” LCD Touch screen, displays in time, speed and RCF.
- 100 kinds of program stored in the memory, 100 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, 3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
Product Specification
| Model | TG16S | TGL16S |
| Max. Speed | 16000rpm | |
| Speed Accuracy | ±20rpm | |
| Max. RCF | 20600×g | |
| Max. Capacity | 6×100ml | |
| Time Range | 0~99h59min | |
| RPM/RCF Convert | Yes | |
| Noise (dB) | ≤ 65 | ≤ 58 |
| Temperautre Range | / | -20℃~40℃ |
| Temperature Accuracy | / | ±1℃ |
| Acc/Dec | 10 Kinds | |
| Power Supply | AC 220V/110V 50HZ/60HZ | |
| Dimension | 513×370×320mm | 513×370×320mm |
| N.W./G.W. | 48KG/55kg | 84KG |
Available Rotors
| No. | Capacity | Max. Speed | Max. RFC |
| 1 | Angle rotor 4×8PCR | 14000 rpm | 12070 xg |
| 2 | Angle rotor 6×8PCR | 13000 rpm | 16080 xg |
| 3 | Angle rotor 8×8PCR | 14000 rpm | 13390 xg |
| 4 | Angle rotor 12×8PCR | 13000 rpm | 17220 xg |
| 5 | Angle rotor 30×0.5ml | 15000 rpm | 18510 xg |
| 6 | Angle rotor 40×0.5ml | 14000 rpm | 19970 xg |
| 7 | Angle rotor 12×1.5/2ml | 16000 rpm | 17940 xg |
| 8 | Angle rotor 24×1.5/2ml | 15000 rpm | 20600 xg |
| 9 | Angle rotor 30×1.5/2ml | 13500 rpm | 19340 xg |
| 10 | Angle rotor 48×1.5/2ml | 11000 rpm | 12840 xg |
| 11 | Angle rotor 16×5ml | 15000 rpm | 19350 xg |
| 12 | Angle rotor 16×7ml | 14000 rpm | 16370 xg |
| 13 | Angle rotor 6×10ml | 14000 rpm | 16460 xg |
| 14 | Angle rotor 12×10ml | 13000 rpm | 14510 xg |
| 15 | Angle rotor 12×15ml | 10000 rpm | 11840 xg |
| 16 | Angle rotor 24×15ml | 5000 rpm | 3080 xg |
| 17 | Angle rotor 30×15ml | 5000 rpm | 3830 xg |
| 18 | Angle rotor 8×20ml | 12000 rpm | 14510 xg |
| 19 | Angle rotor 6×30ml | 12000 rpm | 14000 xg |
| 20 | Angle rotor 6×50ml | 11000 rpm | 13480 xg |
| 21 | Angle rotor 6×70ml | 12000 rpm | 10810 xg |
| 22 | Angle rotor 6×100ml | 8000 rpm | 7280 xg |
| 23 | 24 pieces capillary vessel | 12000 rpm | 15800 xg |
| 24 | Microplate rotor 2×3×48 Well | 4000 rpm | 2300 xg |
| 25 | Angle rotor 4x100ml | 12000 rpm | 14850 xg |
