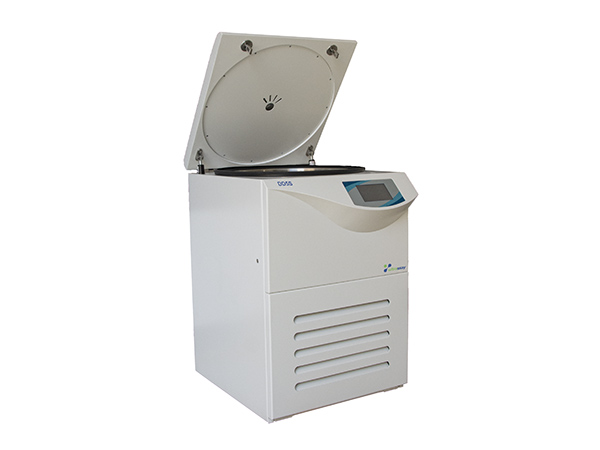

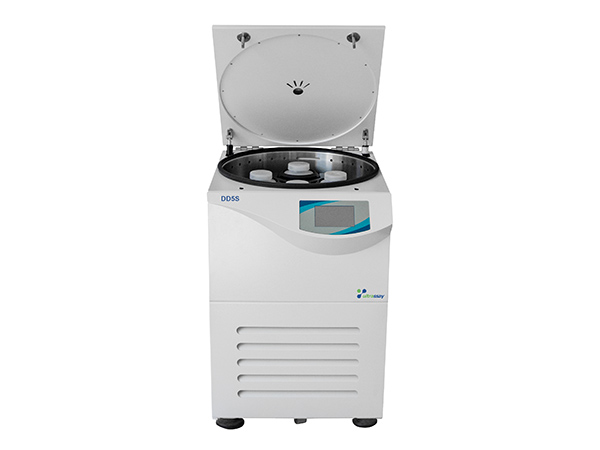

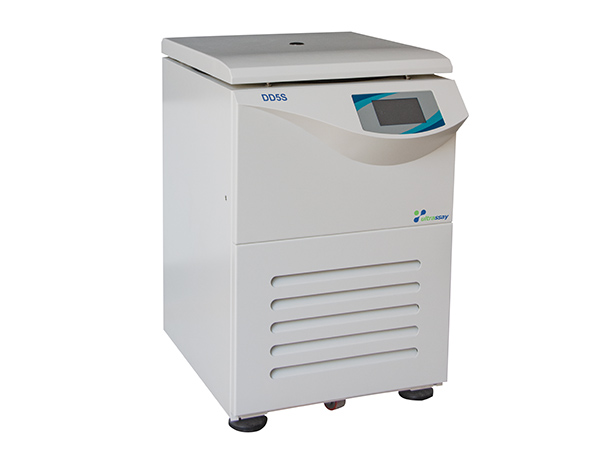

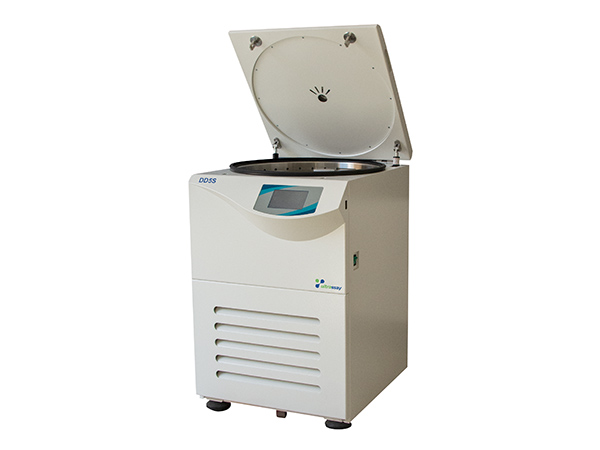

5000rpm Floor Stand Low Speed Centrifuges with variety of rotors and adapters which been used for separation and purification of radio immunity clinical medicine, biochemistry, pharmaceuticals and blood products.
Feature
- Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Microprocessor control
- 7” LCD Touch screen, displays in time, speed and RCF.
- 100 kinds of program stored in the memory, 100 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, 3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
Product Specification
Model | DD5S | DDL5S (Refrigerated) |
Max. Capacity | 4x800ml (4x450ml blood bag) | |
Max. Speed | 5000rpm | |
Speed Accuracy | ±20rpm | |
Max. RCF | 4730×g | |
Time Range | 0~99min | |
Display | 7” LCD Touch Screen | |
Temp. Range | / | -20~40℃ |
Temp. Accuracy | / | ±1℃ |
Noise | ≤ 58dBA | |
Acc/Dec | 100 Kinds | |
RPM/RCF Convert | Yes | |
Power Supply | AC 220V 50HZ/60HZ | |
Dimension (mm) | 600x510x800 | 670x560x800 |
N.W. (kg) | 108 | 180 |
Available Rotors
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
D5-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
D5-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
D5-3 | Swing Rotor | 4000 | 4×500ml | 3380 |
D5-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |
D5-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
D5-6 | 2×3×48(well) | 2300 | ||
D5-7 | Swing rotor | 5000 | 4×1×50ml | 4730 |
4×1×100ml | 4730 | |||
4000 | 4×2×100ml | 3020 | ||
4000 | 4×2×50ml | 3200 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
D5-8 | Swing rotor | 4000 | 4×8×15ml | 3200 |
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2880 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
D5-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
4000 | 4×31×5ml Khan tubes | 2480 | ||
D5-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
4000 | 4×31×7ml Khan tubes | 3140 | ||
4000 | 4×30×7ml vacuum tube | 3140 | ||
4000 | 4×30×5ml vacuum tube | 3140 | ||
4000 | 4×40×7ml vacuum tube | 3270 | ||
4000 | 4×18×10ml vacuum tube | 3140 | ||
D5-11 | Swing rotor | 4000 | Dairy bottle | 3830 |
D5-12 | Fixed rotor | 5000 | 6×15ml | 2540 |
D5-13 | 5000 | 12×15ml | 3080 | |
D5-14 | 5000 | 24×15ml | 3500 | |
D5-15 | 5000 | 30×15ml | 3830 | |
D5-16 | 5000 | 4×50ml | 2520 | |
D5-17 | 5000 | 6×50ml | 2850 | |
D5-18 | 5000 | 12×50ml | 3860 | |
D5-19 | 4000 | 24×50ml | 2970 | |
D5-20 | 5000 | 4×100ml | 2630 | |
D5-21 | 5000 | 6×100ml | 3130 | |
D5-22 | 4000 | 12×100ml | 2970 |
