5000rpm Tabletop Low Speed Refrigerated Centrifuges are equipped with variety of rotors and adapters which been used for separation and purification of radio immunity clinical medicine, biochemistry, pharmaceuticals and blood products.

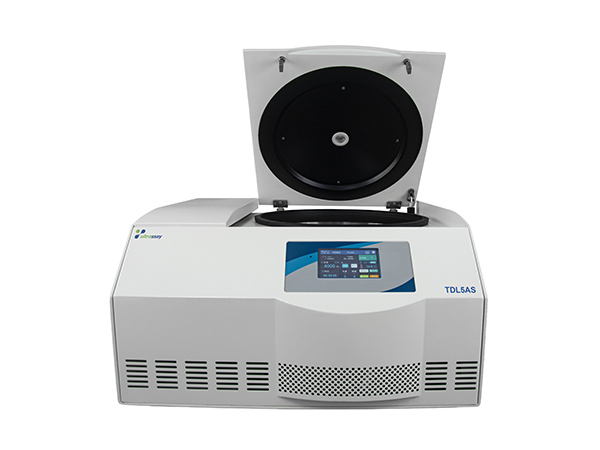

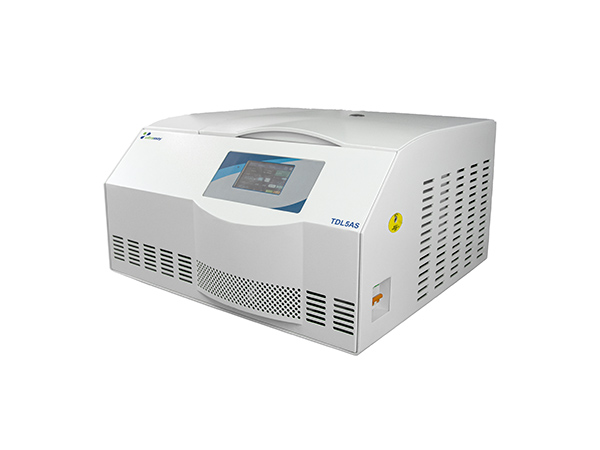

TDL5S/TDL5AS/TDL5BS/TDL5CS/TDL5ES Tabletop Low Speed Refrigerated Centrifuges
Feature
- Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Microprocessor control
- 7” LCD Touch screen, displays in time, speed and RCF.
- 100 kinds of program stored in the memory, 100 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, 3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
Product Specification
Model |
TDL5S |
TDL5AS | TDL5BS | TDL5CS |
TDL5ES |
Max. Capacity |
4x250ml |
4x300ml | 4x600ml | 4x800ml |
4x180ml |
Max. Speed |
5000rpm |
||||
Speed Accuracy |
±20rpm |
||||
Max. RCF |
4730×g |
||||
Time Range |
0~99min |
||||
Temp. Range |
-20~40℃ |
||||
Temp. Accuracy |
±1℃ |
||||
Display |
7” LCD Touch Screen |
||||
Noise |
≤ 58dBA |
||||
Acc/Dec |
10 Kinds |
||||
RPM/RCF Convert |
Yes |
||||
Power Supply |
AC 220V 50HZ |
||||
Dimension (mm) |
620×600×360 |
660×660×375 | 720×720×400 | 820×735×535 |
570×600×340 |
N.W. (kg) |
90 |
100 | 116 | 130 |
68 |
Product Specification
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
5B-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
5B-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
5B-3 | Swing Rotor | 4000 | 4×500ml | 3380 |
5B-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |
5B-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
5B-6 | 2×3×48(well) | 2300 | ||
5B-7 | Swing rotor | 5000 | 4×1×50ml | 4730 |
4×1×100ml | 4730 | |||
4000 | 4×2×100ml | 3020 | ||
4000 | 4×2×50ml | 3200 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
5B-8 | Swing rotor | 4000 | 4×8×15ml | 3200 |
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2880 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
5B-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
4000 | 4×31×5ml Khan tubes | 2480 | ||
5B-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
4000 | 4×31×7ml Khan tubes | 3140 | ||
4000 | 4×30×7ml vacuum tube | 3140 | ||
4000 | 4×30×5ml vacuum tube | 3140 | ||
4000 | 4×40×7ml vacuum tube | 3270 | ||
4000 | 4×18×10ml vacuum tube | 3140 | ||
5B-11 | Swing rotor | 4000 | Dairy bottle | 3830 |
5B-12 | Fixed rotor | 5000 | 6×15ml | 2540 |
5B-13 | 5000 | 12×15ml | 3080 | |
5B-14 | 5000 | 24×15ml | 3500 | |
5B-15 | 5000 | 30×15ml | 3830 | |
5B-16 | 5000 | 4×50ml | 2520 | |
5B-17 | 5000 | 6×50ml | 2850 | |
5B-18 | 5000 | 12×50ml | 3860 | |
5B-19 | 4000 | 24×50ml | 2970 | |
5B-20 | 5000 | 4×100ml | 2630 | |
5B-21 | 5000 | 6×100ml | 3130 | |
5B-22 | 4000 | 12×100ml | 2970 |
Request for quotation
