6 Channels LCD Digital Hotplate Magnetic Stirrer
MS-H280-S6
YBOTECH 6 Channels LCD Digital Hotplate Magnetic Stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
It is widely used in chemical synthesis, physical and chemical analysis, bio pharmaceuticals etc.
The design of 4/6 channel hotplate magnetic stirrers aim to turn your laboratory into a space-saving, safe, highly efficient, tidy and neat benchmark among peers. They are well recognized by higher education, pharmaceutic manufacturer, biotech company, research institute and food manufacturer as an eco-friendly magnetic stirrer for synthesis.

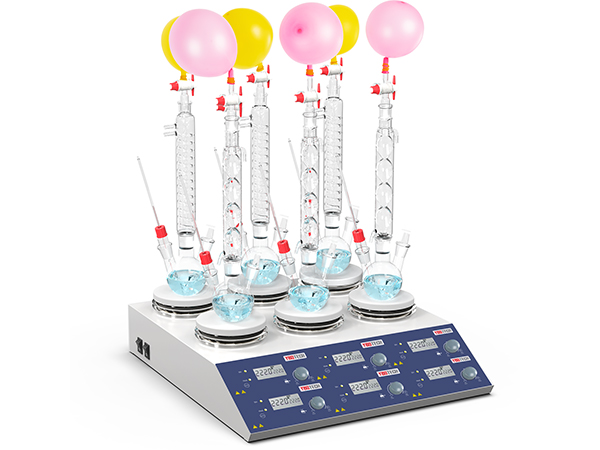

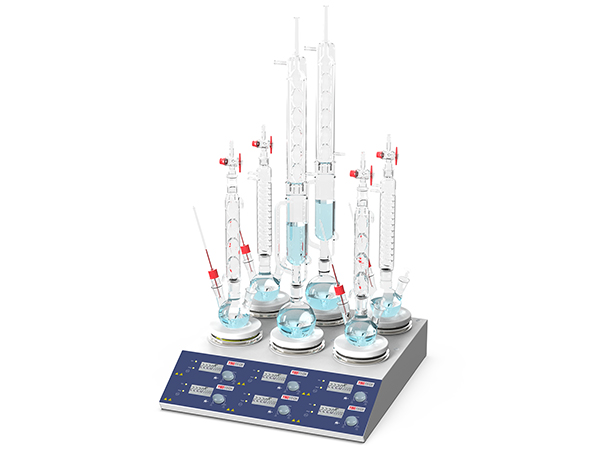

The 4/6 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4 or 6 tests at the same time with stable performance, good reproducbility, high accuracy and easy operation.

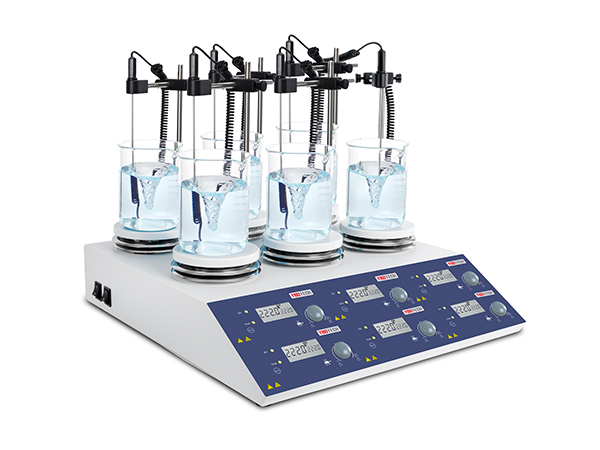

- 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
- Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
- Powerful, rapid heating with accurate PID temperature control
- Spark-free DC brushless motor with extended life and no maintenance

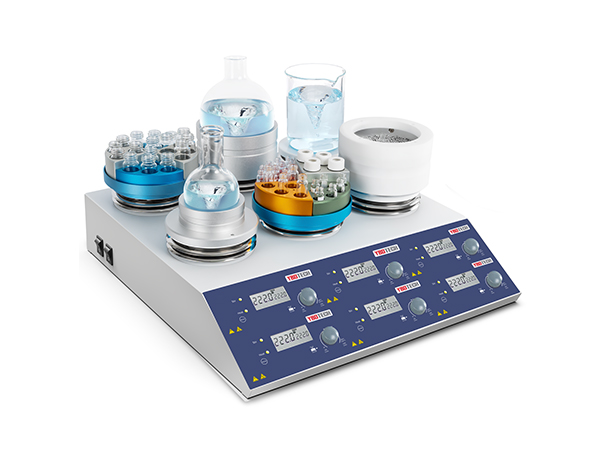

- Compatible with various heating block or reaction vessels for a variety of application scenario
- Ultra space-saving with 4/6 channel integrated in one instrument
- “HOT” warning flashes on the LCD display if the work plate temperature is above 50ºC after the user turn off the power switch.
- Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
- Reliable safety mechanism, compliant to IEC61010\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.
Model |
MS-H280-S4
|
MS-M-S4 | MS-H280-S6 | MS-M-S6 |
Work plate dimension
|
Ø134mm
|
Ø134mm | Ø134mm | Ø134mm |
Work plate material
|
Aluminum with ceramic coating
|
Aluminum with ceramic coating | Aluminum with ceramic coating | Aluminum with ceramic coating |
Motor type
|
Brushless DC motor
|
Brushless DC motor
|
Brushless DC motor
|
Brushless DC motor
|
Motor rating output
|
5WX4
|
5WX4 | 5WX6 | 5WX6 |
Heating power
|
600WX4 | – | 600WX6 | – |
Total power
|
605WX4 | 5WX4 | 605WX6 | 5WX6 |
Voltage, Frequency
|
100-120V,50Hz;
200-220V,60Hz
|
100-120V,50Hz;
200-220V,60Hz
|
100-120V,50Hz;
200-220V,60Hz
|
100-120V,50Hz;
200-220V,60Hz
|
Stirring positions
|
4 | 4 | 6 | 6 |
Max. stirring quantity (H2O)
|
3LX4
|
3LX4 | 3LX6 | 3LX6 |
Max. stirring quantity (H2O) per channel
|
3L | 3L | 3L | 3L |
Max. magnetic bar (length)
|
40mm
|
40mm | 40mm | 40mm |
Speed range+
|
200-1500rpm | 200-1500rpm | 200-1500rpm | 200-1500rpm |
Speed control accuracy (rpm)
|
±20
|
±20 | ±20 | ±20 |
Speed display
|
LCD
|
LCD
|
LCD
|
LCD
|
Temperature display
|
LCD
|
LCD
|
LCD
|
LCD
|
Heating temperature range
|
25-280ºC
|
– | 25-280ºC | – |
Overheating protection
|
420ºC | – | 420ºC | – |
Temperature display resolution
|
0.1ºC
|
– | 0.1ºC | – |
Temperature control accuracy
|
±1ºC(<100ºC), ±1%(>100ºC) | – | ±1ºC(<100ºC), ±1%(>100ºC) | – |
External temperature sensor
|
PT1000 (accuracy±0.2ºC) | – | PT1000 (accuracy±0.2ºC) | – |
IP protection class
|
IP21 | IP21 | IP21 | IP21 |
Dimensions (WxDxH)
|
701X265X127mm | 701X265X127mm | 564X523X127mm | 564X523X127mm |
Weight
|
8.7KG | 8.7KG | 12.7KG | 12.7KG |
Permissible ambient
temperature and humidity
|
5~40ºC, 80% RH | 5~40ºC, 80% RH | 5~40ºC, 80% RH | 5~40ºC, 80% RH |
