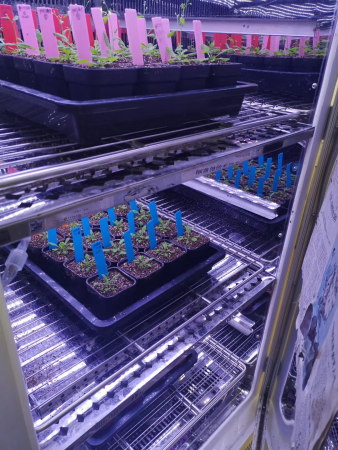

Ybotech Artificial climate chamber is suitable for plant growth and tissue culture, seed germination, seedling, and microbial culture experiments; Breeding of insects and small animals ; BOD determination for water quality monitoring; Ideal test equipment for aging and service life testing of medicinal materials, wood, building materials, etc., as well as light, constant temperature and constant humidity for other purposes.
Feature
- Double refrigeration systems automatically switch in turn to ensure that long time operation without failure.
- International brand fluorine-free compressor, environment friendly and reliable.
- International brand humidity sensor, high accuracy for humidity.

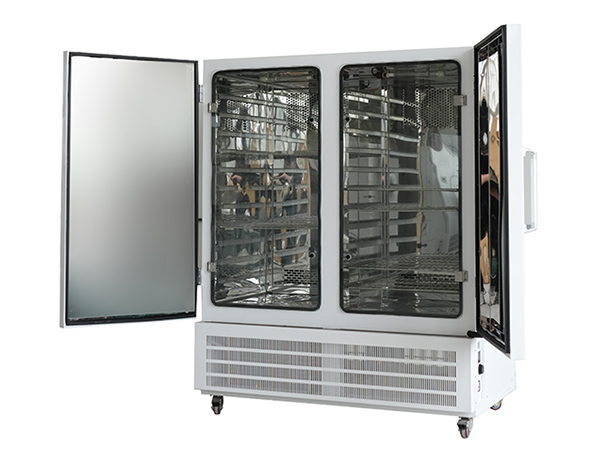

- Double door design. The inner door is made of tempered glass for easy observation, the outer door with magnetic strip, good sealing.
- Large LCD screen to display temperature and humidity, light intensity. Multi-segment timing program control technology, high precision.
- Polished stainless-steel chamber, moveable grids can be freely adjusted, easy for cleaning. Powder coating steel housing.
- External water tank. Electric heater humidification system.
- It can simulate the temperature changes of nature during the day and night.
- JAKEL circulation fan, unique air duct structure, effectively guarantee the temperature stability inside the box.
- The parameters can be saved automatically in case of power failure, and the original setting programme will be run when power is restored.
- In case of failure of the incubator, a fault message appears on the LCD display, and the operational faults can be seen at a glance.
- Equipped with leakage protection and a spare mechanical thermostat to ensure the product work normally even the main temperature control failed (for heating).
- USB port for recording data.
Safety Device
- Over temperature protection
- Compressor over current protection
- Over compressing protection
- Water shortage protection
- Heater overheats protection
- Audible and visual alarm system
Options:
CO2 control system
Product Specification
| Model | YAC-175
-N |
YAC-275
-N |
YAC-375-
N |
YAC-475-
N |
YAC-800
-N |
YAC-800
D-N |
YAC-107
5-N |
YAC-107
5D-N |
YAC-16
75D-N |
| Chamber Volume | 175L | 275L | 375L | 475L | 800L | 800L | 1075L | 1075L | 1675L |
| Temp. Range | With Illumination:10～55℃ Without Illumination:0～55℃ | ||||||||
| Temp. Stability | ≦±1℃ | ||||||||
| Display Resolution | 0.1℃ | ||||||||
| Temp. Uniformity | ≦±1℃ | ||||||||
| Humidity Range | 30~95%RH | ||||||||
| Humidity Deviation | ±3%RH | ||||||||
| Illumination (LX) | 0~12000
6 levels adjustable |
0~20000
6 levels adjustable |
0~25000
6 levels adjustable |
0~30000
6 levels adjustable |
0~30000
6 levels adjustable |
0~30000
6 levels adjustable |
0~30000
6 levels adjustable |
0~30000
6 levels adjustable |
0~30000
6 levels adjustable |
| Power Rating | 1650W | 2200W | 2700W | 2900W | 4200W | 4200W | 4200W | 4200W | 4600W |
| Power Supply | AC220V, 50HZ | ||||||||
| Operating Temperature | +5～35℃ | ||||||||
| Chamber Size(W×D×H)cm | 45*42*93 | 58*51*94 | 59*55*116 | 70*55*125 | 96*61*137 | 126*50*127.5 | 95*70*160 | 126*67*127.5 | 146*85*135 |
| Exterior Size(W×D×H)cm | 65*73*175 | 77*74*171 | 78*87*191.5 | 88*87*199.5 | 110*93*227 | 141.8*78.1*195 | 101*90*234 | 141.8*95.1*195 | 162.5*122*204 |
| Number of Shelf (Std/Max) | 3/16 | 3/16 | 3/21 | 3/22 | 3/22 | 6/18 (2 shelves in one floor) | 3/22 | 6/18 (2 shelves in one floor) | 6/20 (2 shelves in one floor) |
