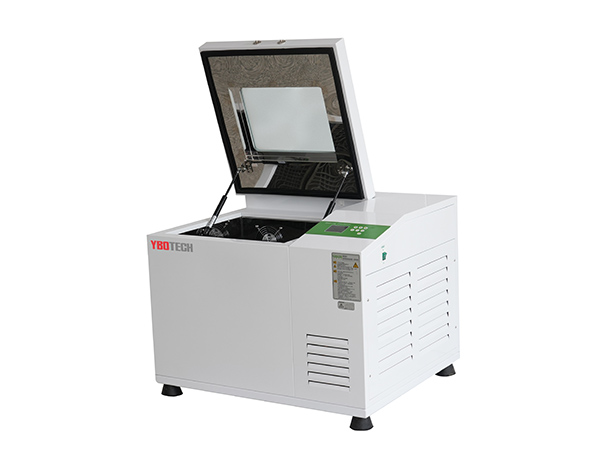

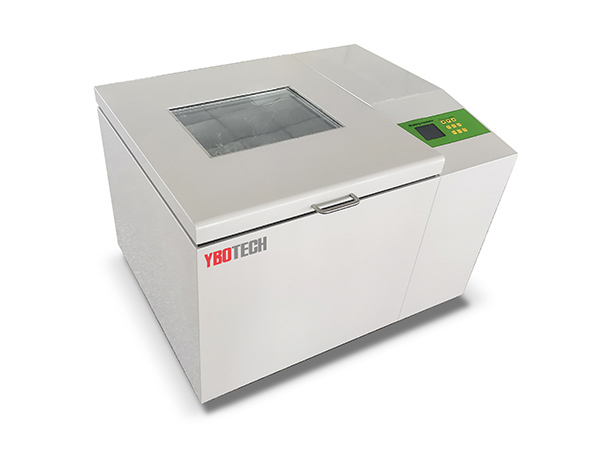

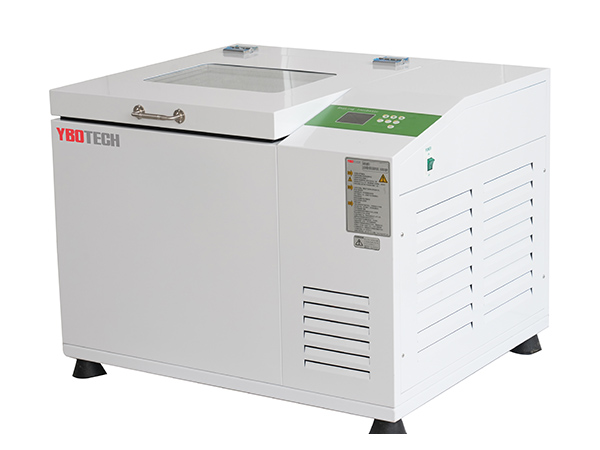

Benchtop Shaking Incubator

Ybotech Benchtop Shaking Incubator is a special constant temperature culture device for the cultivation and breeding of molds and microorganisms. It is especially suitable for scientific research and production in the fields of bioengineering, chemical engineering, medical research, agriculture and forestry sciences, aquatic products, animal husbandry, and environmental protection.

Inquire

Brochure Download

Feature

Integrated with incubator and shaker to save space and cost with tempered glass window.
ABS shell, stainless steel chamber.
LCD display to display temperature and shaking velocity.
With easy operations of storage function of working parameters.
Auto-recovery after power interruption as originally programmed.
Auto-stop protection to keep samples safe when the door is opened. Strong air spring rod with easy opening and closing.
Brushless DC motor, more stable and reliable
Equipped with leakage protection.

Optional Accessories:

Universal spring rack
Flask rack

Product Specification

Model	YBSI-103B	YBSI-103B-II	YBSI-100B	YBSI-200B
Model	YBSI-103B	YBSI-103B-II	YBSI-100B-II	YBSI-200B-II
Volume	18L	26L	48L	69L
Shaking Speed	20~300rpm
Speed Precision	±1 rpm
Oscillation Amplitude	φ26mm
Flask Rack (Standard)	100ml×9	100ml×9	50ml×4 100ml×4 250ml×3 500ml×3	50ml×5 100ml×5 250ml×4 500ml×3
Max. Volume (Optional)	50ml×12 100ml×9 250ml×6	50ml×12 100ml×9 250ml×9 500ml×4	50ml×20 100ml×16 250ml×12 500ml×9 1000ml×4	100ml×20 250ml×16 500ml×12 1000ml×5 2000ml×4
Tray Size	295×253mm*1	295×253mm*1	450×370mm*1	450×410mm*1
Timing Range	0-999h
Temperature Range	RT+5~60°C			4~60°C Cooling
Temperature Precision	±0.1°C (constant temperature)
Temp. Uniformity	±1°C
Display	LCD
N.W	31kg	41kg	72kg	100kg
Chamber Size	320x295x190	370×320×220mm	440x405x270mm	480x450x320
Overall Size	440×410×390mm	560×480×440mm	685×625×610mm	830×720×640mm
Power Consumption	220W	220W	320W	580W
Power Supply	AC220V-240V ±10% 50~60HZ
