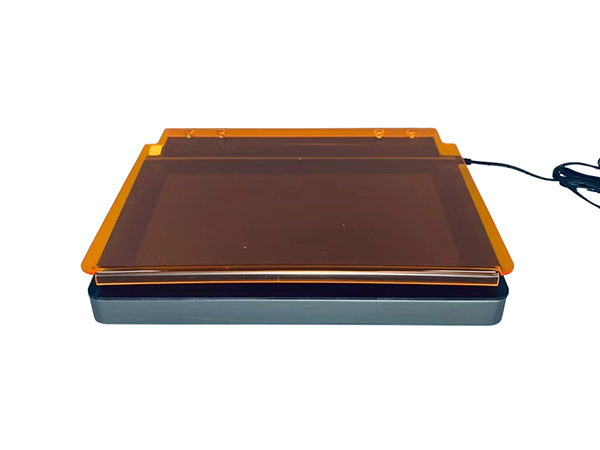

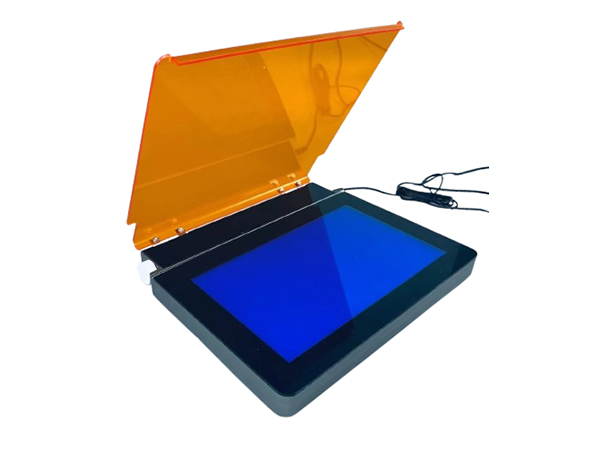

Ultrassay® Blue/White LED Transilluminator is a high-quality LED 470nm blue light transmission device that used for the observation of nucleic acid and protein gel stains without the risks of UV light. It can be used with a variety of nucleic acid dyes to achieve perfectly clear bands.
Features
- Unique bottom light-emitting module, can evely excite the gel sheet, high brightness, low background;
- Blue 470nm LED light emitting module has high brightness, long life time of more than 50,000 hours, and low power consumption;
- Amber cover filters the intense blue light to 580nm and only lets the emission light through, allowing observation and gel-cutting without protective light filtering goggles;
- Creates a mini darkroom to record your results with a quick snapshot from your phone, tablet or camera;
- Includes an Exact precision knife and an extra blade to precisely cut the gel band containing the sequence of interest.
Applications
Compatible with fluorescent dyes include GeneGreen, GelRed, GelGreen, SYBR Green, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, EB etc.
Product Specification
| Model | UB-TIDual |
| Dimension | L195 * W265 * H40cm |
| View Area | W200 * L120mm |
| Weight | 1.0kg |
| Power Supply | 100~240V 50/60Hz 1A |
| LED Source | Blue/White LED light module |
| LED Lifespan | >50,000hrs |
| LED Wavelength | 470nm |
| Auto Shutdown Time | 5 mins |
