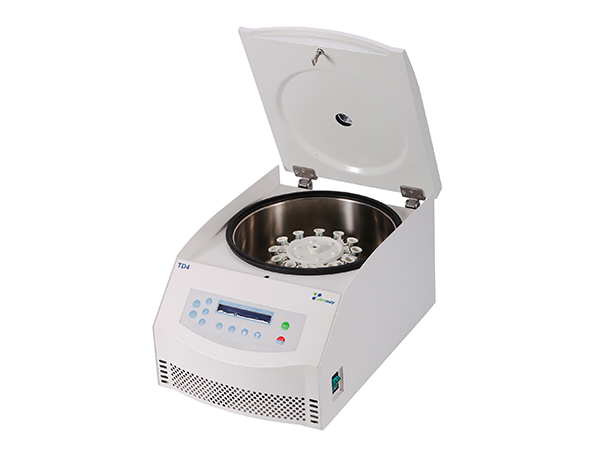

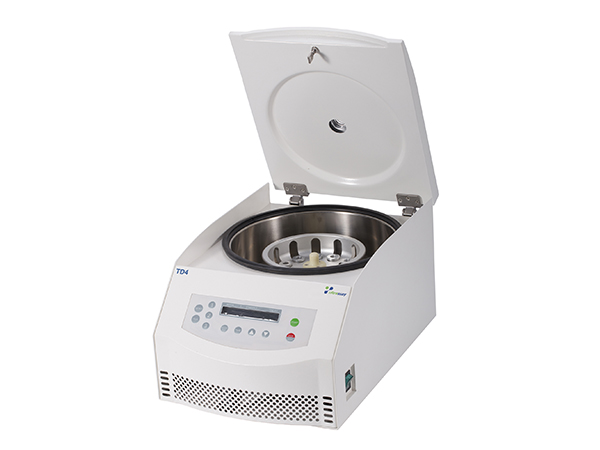

TD4 cell washer centrifuge is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, laboratory and biochemistry.
Feature
- Microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, laboratory and biochemistry.
- Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
- Special program, HLA and SERO separately.
- Micro computer control system, LED display the RCF，time and speed.
- Electric lid lock, compact design, super speed and imbalance protection.
Technical Specification
| Max. Speed | 4000rpm |
| Max. RCF | 2000 |
| Max. Capacity | 12×7 |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (WxDxH) | 485×320×255mm |
| Net Weight | 24KG |
Available Rotors
| Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
| NO31501 | SERO Rotor | 3000 | 12×7/5ml(10-13*60-100mm) | 2000 |
| NO31502 | HLA Rotor | 4000 | 12×2/1.5/0.5ml | 1000 |
| Rotor Name | Max RCF(×g) | Application | ||
| HLA rotor for Lymphocyte washing | 2000 | Lymphocyte separation incubated cell separation | ||
| 1000 | Hematoblast extenterate(thrombin disposal) | |||
| 1000 | Lymphocyte washing | |||
| SERO rotor for erythrocyte washing | 500 | Blood type determination, the image of the hematocyte | ||
| 1000 | The test of intersectant aptness | |||
| 1000 | Hematocyte washing, the distillation of the serum and plasma | |||
