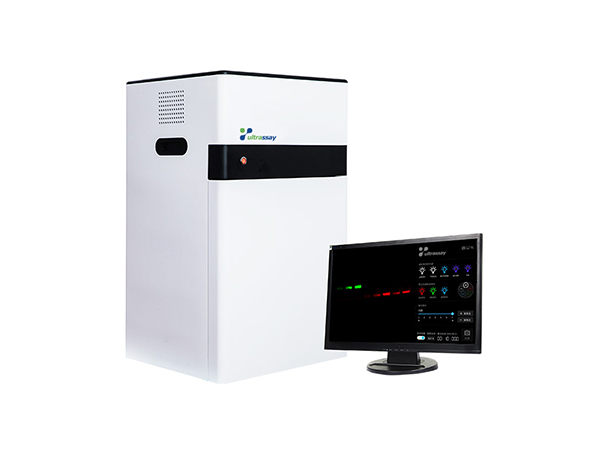

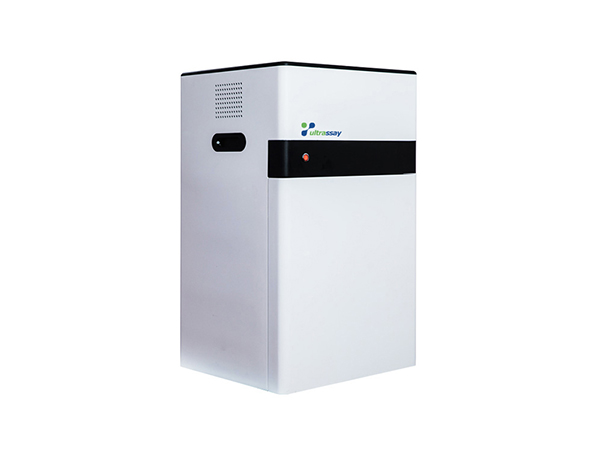

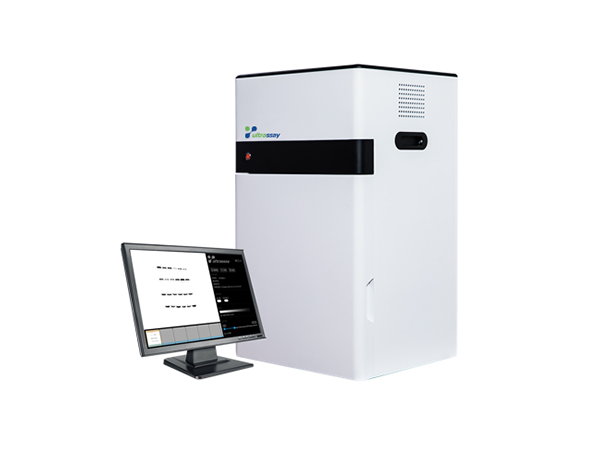

Ultrassay® Classic Multifunction Imaging System provides high performance with ease of use for visible light (RGB) and far red/near infrared (FR/NIR) fluorescence and chemiluminescence detection and all general gel documentation applications. All Ultrassay’s Imagers adopt sensitive cameras in the world-first class, which allow the imaging systems to capture utter weak signals of the bands.
Ultrassay® Magic Multifunction Imaging System
Feature
Super sensitive cooled digital camera
High Sensitivity, High resolution, High performance for long exposure time up to 30 mins (UB-Classic 100) and 60 mins (UB-Classic 523).
4 layers sample tray
Fixed 4 layers sample tray for different sizes of chemiluminescence samples.
Various LED light sources
UV transmission, White transmission, Blue transmission, Epi-White and Epi-RGB light sources are optional.
Upgrade to fluorescence module
Upgrade to fluorescence module available (Incl. Visible RGB and NIR).
Application
- Chemilluminescence Imaging, ECL Western Blotting;
- Fluorescence Imaging, Fluorescent Western Blotting;
- Gel Doc Application;
- Protein gel, SDS Pages.
Product Specification
| Model | UB-Classic 100 | UB-Classic 523 | |
| Cooled Digital Camera |
Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0 Megapixels | 6.0 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 × 4.54 μm | |
| Temperature | -60 ºC below ambient (-30 ºC regulated) | ||
| Dynamic Range | 4.8 OD | ||
| Pixel Density | 16bit (65536 Grey scales) | ||
| Bining Mode | 1×1, 2×2, 4×4, 5×5, 6×6, 8×8 | 1×1, 2×2, 4×4, 5×5, 6×6, 8×8, 12×12, 16×16, 24×24 | |
| Lens | Electronic Lens | F0.95 as standard (optional F0.8) Auto focus | |
| Samples | Chemi Imaging | 4 layers manual sample tray | |
| Gel Documentation | UV transilluminator (Area 21x26cm), Blue transilluminator (optional) | ||
| Protein Gels | White LED transilluminator (Area 19x26cm) | ||
| Optional Module | Epi-UV, RGB and NIR fluorescent detection | ||
| Filter Wheel | 5 Positions | Standard 5 positions filter wheel, Max. 8 positions | |
| Power Supply | 110~220V, 50/60Hz | ||
| Overall Size | 43×36×70cm | ||
| Weight | 21kg | ||
| Software | Capture | UBEP Capture Software | |
| Analysis |
UBEP Analysis Software |
||
