YBOTECH DO210E DO meter is a benchtop device that used to measure Dissolved Oxygen Concentration, Dissolved Oxygen Saturation and temperature.

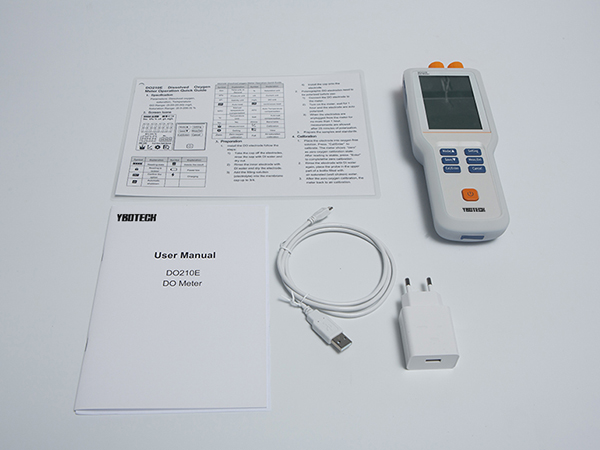

Packing Includes
- DO-957-Q polarographic DO electrode（zero oxygen calibration solution, dissolved oxygen electrolyte, 3 pcs electrode membrane cover）

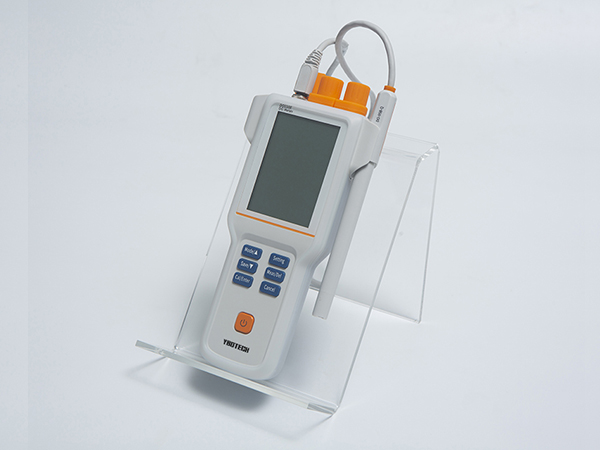

- Electrode holder
- Silicone rubber case
- Wristbands
General Features

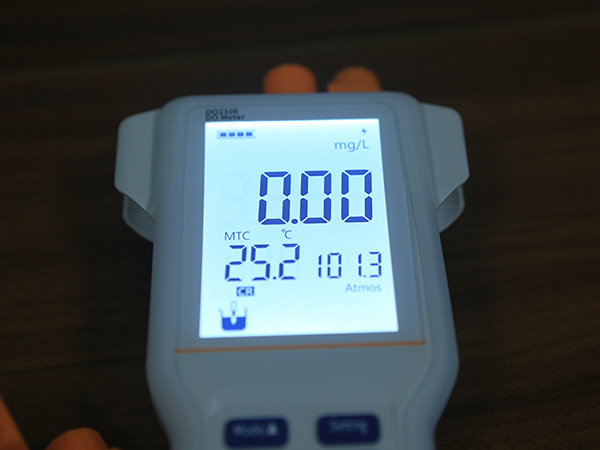

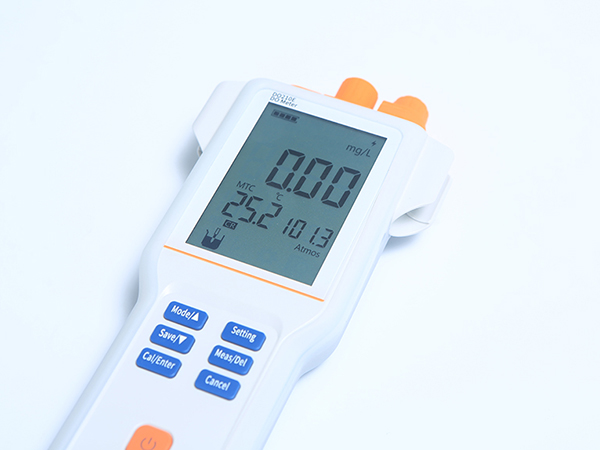

- LCD display screen, 3.5 inches.
- Multi-reading feature allows auto-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data capacity of up to 200 sets for each parameter.
- Auto-power off feature effectively extends the battery service life.
- Reset feature automatically resumes all settings back to factory default options.
- IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
- Support for air-saturated water or zero oxygen calibration
- Manual barometric pressure compensation.
- Manual Salinity Factor Correction.
Specification
|
Model
|
DO210E
|
|
|
Parameters
|
DO/Temp(DO Saturation).
|
|
|
Dissolved
Oxygen Concentration |
Sensor Type
|
Polarographic
|
|
Range
|
0.00 to 20.00 mg/L
|
|
|
Resolution
|
0.01mg/L
|
|
|
Accuracy
|
±0.3mg/L
|
|
|
Calibration Points
|
Air-saturated water or zero point
|
|
|
Barometric Compensation
|
Yes
|
|
|
Manual Salinity Factor Correction
|
Yes
|
|
|
DO Saturation
|
Range
|
(0.0 to 200.0)%
|
|
Resolution
|
0.1%
|
|
|
Accuracy
|
±2.0%
|
|
|
Temperature
|
Range
|
-5 to 110 ºC, 23 to 230 ºF
|
|
Unit
|
ºC, ºF
|
|
|
Resolution
|
0.1
|
|
|
Relative Accuracy
|
±0.2
|
|
|
Measurement
|
Reading Mode
|
Auto Read, Continuous
|
|
Reading Prompts
|
Reading, Stable, Locked
|
|
|
Temp. Compensation
|
ATC, MTC
|
|
|
Data management
|
Data Storage
|
200 results each
|
|

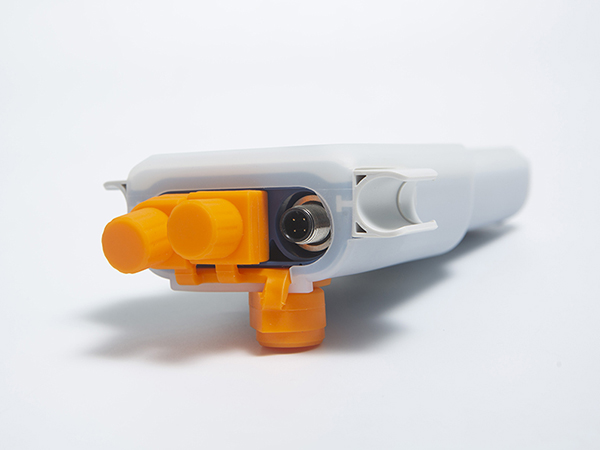

Inputs
|
DO with Temp. Probe
|
4-pin aviation connector
|
|
Display options
|
Backlight
|
Yes
|
|
Auto Shutdown
|
300, 600, 1200, 1800, 3600 sec., off
|
|
|
IP Rating
|
IP65
|
|
|
General
|
Power
|
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
|
|
Dimensions
|
80 x 255 x 35 mm
|
|
|
Weight
|
400g (0.88 lb)
|
|
