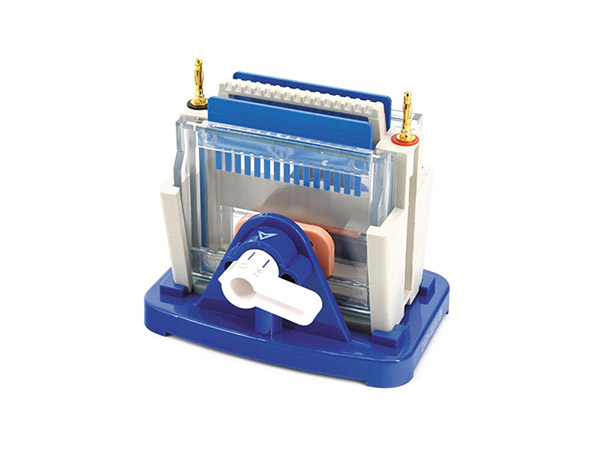

Ultrassay® DYCZ-24DN Vertical Electrophoresis Cell applies to SDS-PAGE, Protein electrophoresis.
Applications
- Made of high quality transparent polycarbonate, exquisite and durable, easy for observation;
- With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels, and save your precious time;
- Special wedge frame design can fix gel room firmly;
- Molded buffer tank equipped pure platinum electrodes;
- Easy and convenient to add samples;
- Able to run one gel or two gels at the same time;
- Save buffer solution;
- Special design of the tank avoid buffer and gel leakage;
- Removable electrodes, easy to maintain and clean;
- Auto-switch-off when the lid is opened.
Product Specification
| Dimension | Gel Size | Buffer Volume | Comb | Comb Thickness | No. Of sample | Weight | Applying Power |

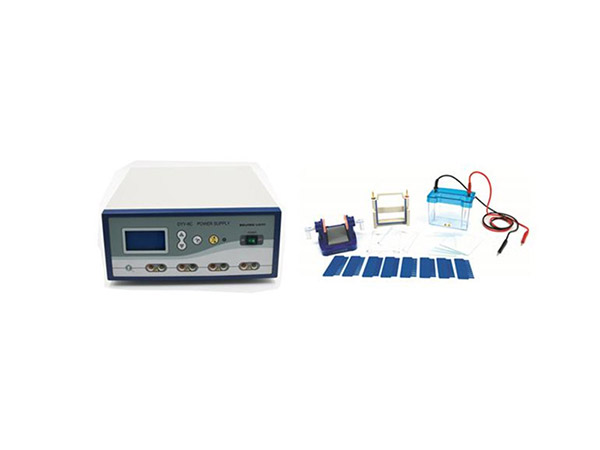

| 140*100*150mm | 75*83 mm | 400 ml | 10 wells, 15 wells | 1.0 mm (Standard)0.75, 1.5 mm (Optional) | 20~30 | 1.0 kg | DYY-6C/6D/10C/12/12C |
