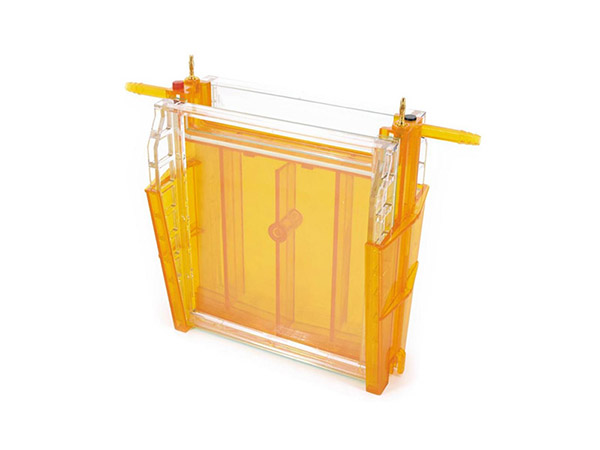

Ultrassay® DYCZ-24F Vertical Electrophoresis Cell applies to SDS-PAGE, Native PAGE electrophoresis and two-dimensional gel electrophoresis.
Applications
- Made of high quality transparent polycarbonate, exquisite and durable, easy for observation;
- With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels, and save your precious time;
- Special wedge frame design can fix gel room firmly;
- Molded buffer tank equipped pure platinum electrodes;
- Easy and convenient to add samples;
- Able to run one gel or two gels at the same time;
- Save buffer solution;
- Special design of the tank avoid buffer and gel leakage;
- Removable electrodes, easy to maintain and clean;
- Auto-switch-off when the lid is opened;
- Built-in heat exchanger can eliminate the heat produced during the running.
Product Specification
| Dimension | Gel Size | Buffer Volume | Comb | Comb Thickness | Qty of sample | Weight | Applying Power |
| 310*160*300mm | 200*175mm | 3500 ml | 16 wells
21 wells |
1.0 mm
1.5 mm |
32~42 | 4.0 kg | DYY-6C/6D/10C/12/12C |
