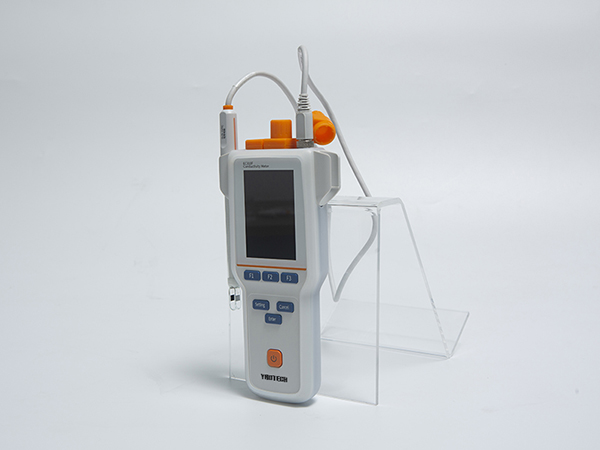

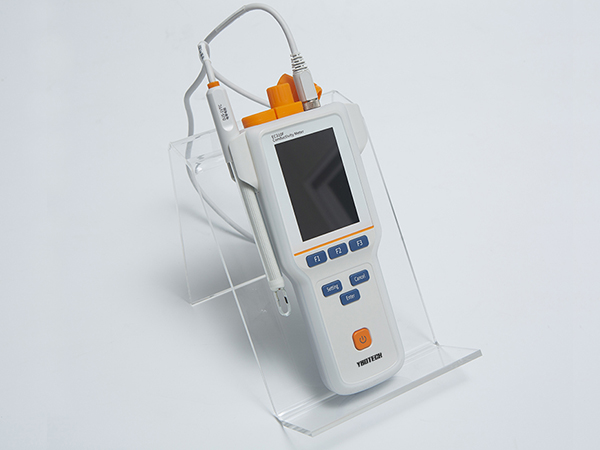

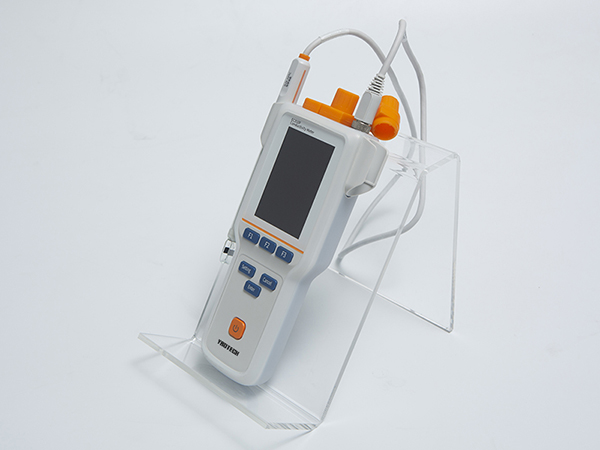

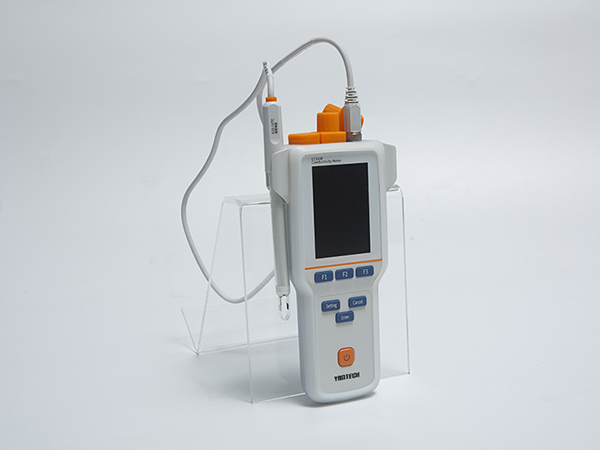

EC310F Conductivity Meter

YBOTECH EC310F Conductivity Meter is a Portable device that can measure conductivity, Resistivity, TDS, Salinity and Temperature.

  • LCD display screen, 3.5 inches.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Auto-hold feature senses and locks the measurement endpoint.
  • Data capacity of up to 500 sets for each parameter (GLP-compliant).
  • Support for USB communication.
  • Auto-power off feature effectively extends the battery service life.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
  • 1-3 points calibration with Standard Recognition.
  • Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
  • Temperature compensation type (none, linear, pure water).
Specification
Model
EC310F
Parameters
EC/Temp. (Resistivity/TDS/Sal.)
Conductivity
Range
0.000 μS/cm to 500 mS/cm
Resolution
0.001 μS/cm minimum,
various with range selection
Accuracy
±1.0% FS
Reference Temperature
20, 25 ºC
Calibration Points
Up to 3
Standard Recognition
84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity
Range
5.00 Ω·cm~20.00 MΩ·cm
Resolution
0.01 Ω·cm minimum
Accuracy
±1.0% FS
TDS
Range
0.00mg/L~300g/L
Resolution
0.01mg/L minimum, various with range selection
Accuracy
±1.0%FS
Salinity
Range
(0.00~8.00)%
Resolution
0.01%
Accuracy
±0.2%
Temperature
Range
-5 to 110 ºC, 23 to 230 ºF
Unit
ºC, ºF
Resolution
0.1
Relative Accuracy
±0.2
Measurement
Reading Mode
Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts
Reading, Stable, Locked
Temp. Compensation
ATC, MTC
Data management
Data Storage
500 results each
GLP Features
Yes
Inputs
Conductivity with Temp. Probe

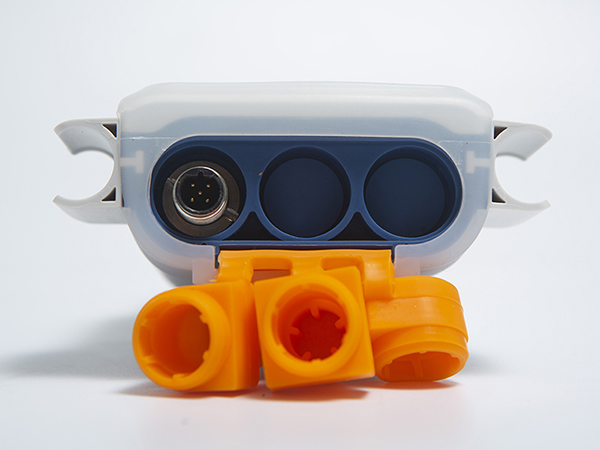

5-pin aviation connector
Outputs
USB
PC, printer
Display options
Backlight
Yes
Auto Shutdown
300, 600, 1200, 1800, 3600 sec., off
IP Rating
IP65
Date and Time
Yes
General
Power
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions
90×255×40 mm
Weight
400g (0.88 lb)

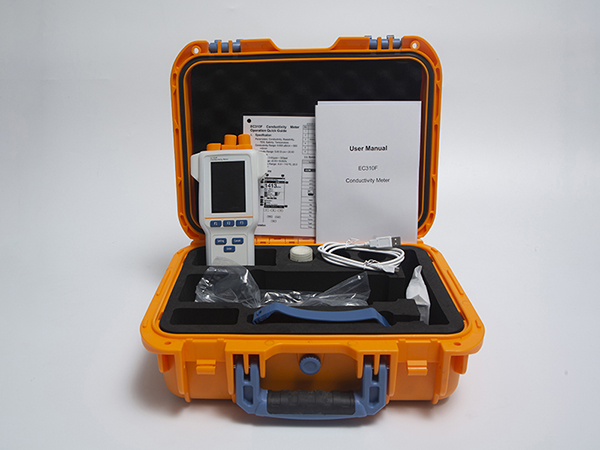

Packing Including
  • DJS-1VTC EC electrode
  • 1413μS/cm EC standard solution, 50ml, 1 vial
  • Electrode holder
  • Silicone rubber case
  • Wristbands
  • Carrying Case
