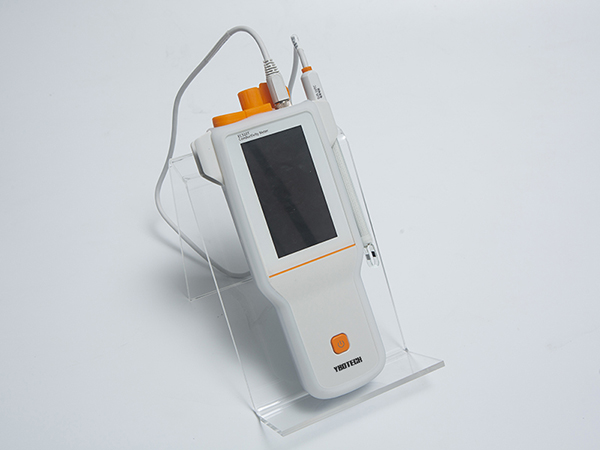

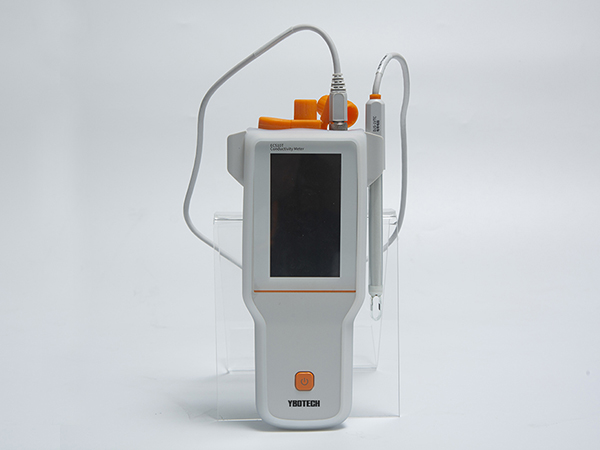

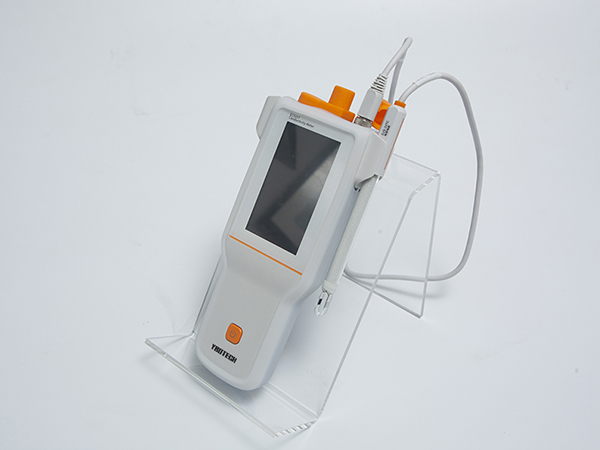

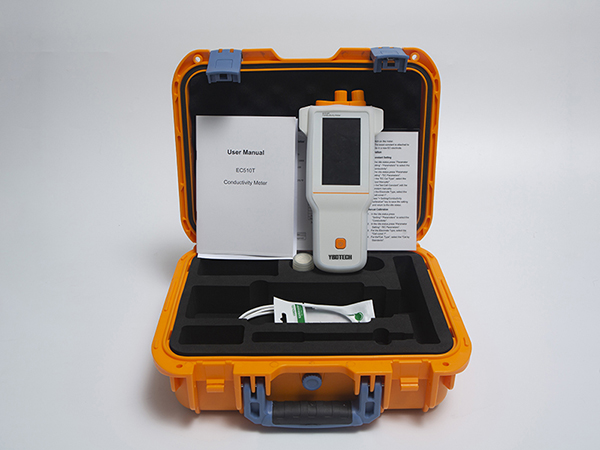

EC510T Conductivity Meter

YBOTECH EC510T Conductivity Meter is a portable device that can measure conductivity, Resistivity, TDS, Salinity and Temperature.

Color High contrast LCD touchscreen, 4.3 inches.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
1-5 points calibration automatically recognizes the standard solutions.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).

Specification

Model		EC510T
Parameters		EC/Temp.(Resistivity/TDS/Sal.)
Conductivity	Range	0.000 μS/cm to 2000 mS/cm
	Resolution	0.001 μS/cm minimum, various with range selection
	Accuracy	±0.5% FS
	Reference Temperature	5, 10, 15, 18, 20, 25 ºC
	Calibration Points	Up to 5
	Calibration Reminder	Yes
	Standard Recognition	10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm
Resistivity	Range	5.00 Ω·cm~100.00 MΩ·cm
	Resolution	0.01 Ω·cm minimum
	Accuracy	±0.5% FS
TDS	Range	0.000~1000 ppt
	Resolution	0.001 ppm minimum, changed with range
	Accuracy	±0.5%FS
Salinity	Type	NaCl%
	Range	(0.00~8.00)%
	Resolution	0.01%
	Accuracy	±0.1%
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
	GLP Features	Yes
	Log Management	Yes

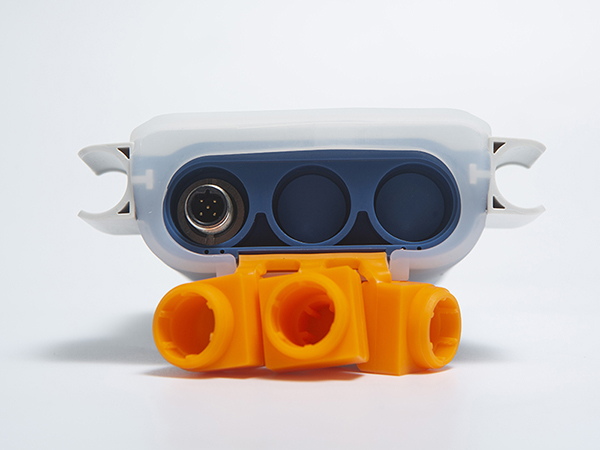

Inputs	Conductivity with Temp. Probe	5-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC
Outputs	RS 232	printer, scanner, auto-sampler
Display options	Backlight	Yes
	Auto Shutdown	1~60 min, off
	IP Rating	IP54
	Date and Time	Yes
General	Power	AC Adapter, 100-240V AC input, DC24V output
	Dimensions	220×195×68 mm
	Weight	950g (2.09 lb)
