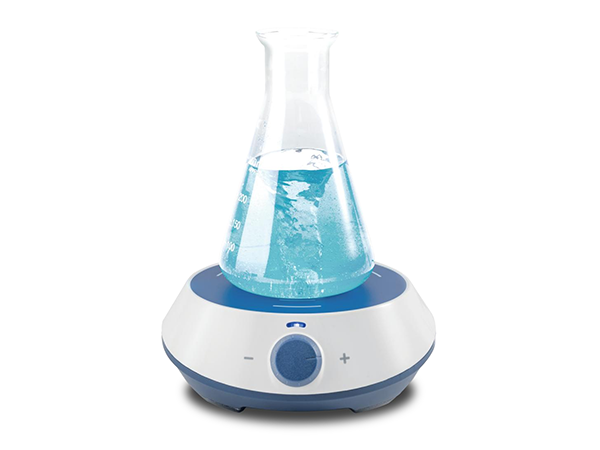

YBOTECH EcoStir magnetic stirrer with electrode holder has a reliable design and a powerful stirring ability. It is a basic and ideal tool for electrochemistry measurements or water & environment monitoring; drug or food analysis; liquid culture mixing, etc.
Main Feature
- Compact design with small footprint, 12V voltage available for mobile labs.
- Square work plate supports 1.5L stirring capacity.
- Holder with clamp for pH electrode or other sensor.
- Default PET top provides excellent chemical resistance.
- Extra colorful stickers satisfy DIY design by yourself.
- Maintenance free brushless DC motor.
- An economical choice of a reliable & durable magnetic stirrer with an electrode holder for Square Plate Magnetic Stirrer stable & powerful stirring ability.
Technical Specification
| Specifications | EcoStir (Round) | EcoStir (Square) |
| Work plate Dimension | φ120mm | 120×115mm |
| Work plate material | PET | |
| Motor type | Brushless DC motor | |
| Motor output power | 1.2W | |
| Power | 7.2W | |
| Voltage | 100-120/200-240V,50/60Hz | |
| Stirring positions | 1 | |
| Max. stirring quantity (H2O) | 1.5L | |
| Max. magnetic bar (length) | 40mm | |
| Speed range | 300-2000rpm | |
| Speed setting | scale | |
| Protection class | IP21 | |
| Dimension (W x D x H) | 150x145x50mm | 150x144x54mm |
| Weight | 0.3kg | |
| Permissible ambient temperature and humidity | 5-40°C,80%RH | |
