Electrophoresis Power Supply

Ultrassay® electrophoresis power supply are powerful and user-friendly devices that elevates the convenience of electrophoresis experiments to a new level. It features a LED/LCD screen for smooth input of custom programs, and offers four output interfaces for simultaneous use. And the device provides three operating modes—constant voltage, constant current, and constant power—to enhance flexibility and efficiency.

Applications

Ultrassay electrophoresis power supply covers the broadest range of experiments on the market, meeting all power needs for vertical & horizontal electrophoresis, high-throughput electrophoresis, and blotting. It supports applications such as SDS-PAGE, Native-PAGE, general protein, and DNA/RNA electrophoresis.

Product Specification

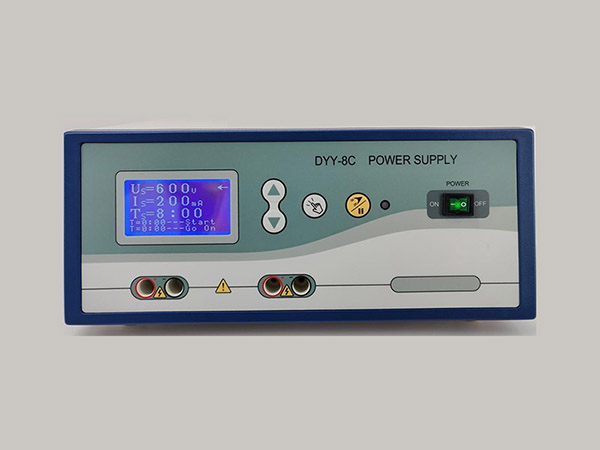

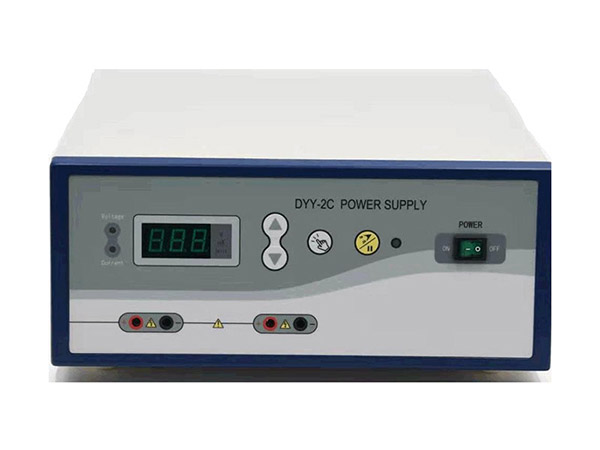

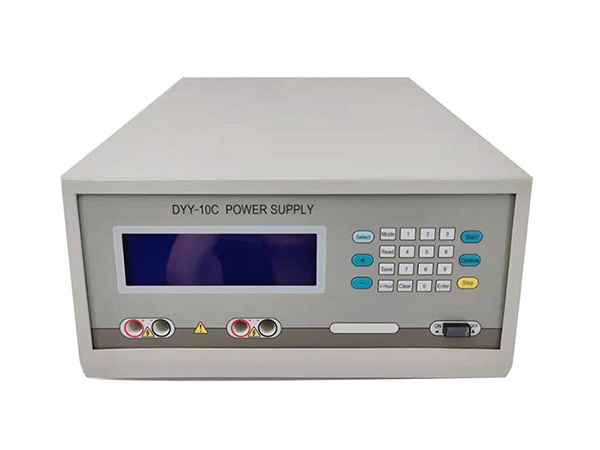

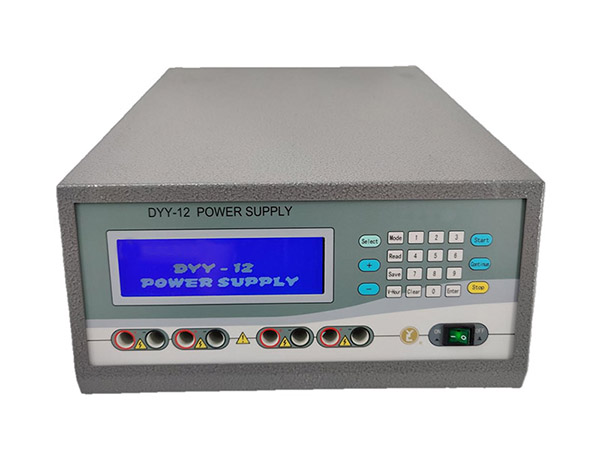

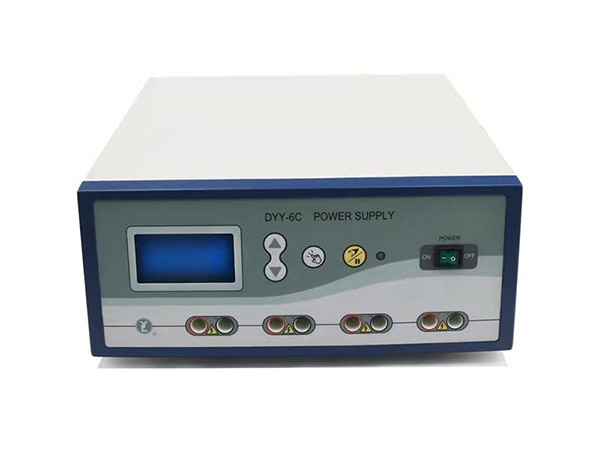

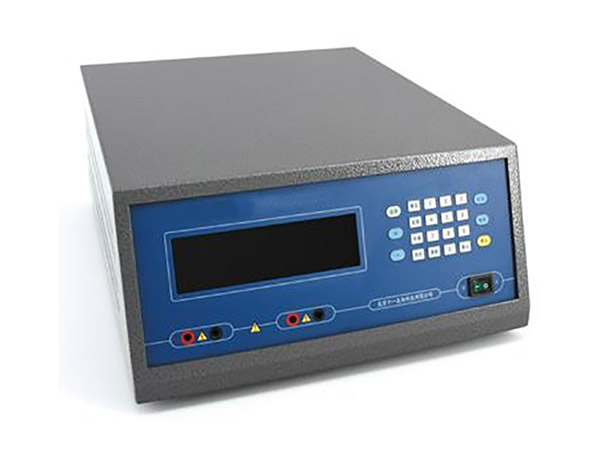

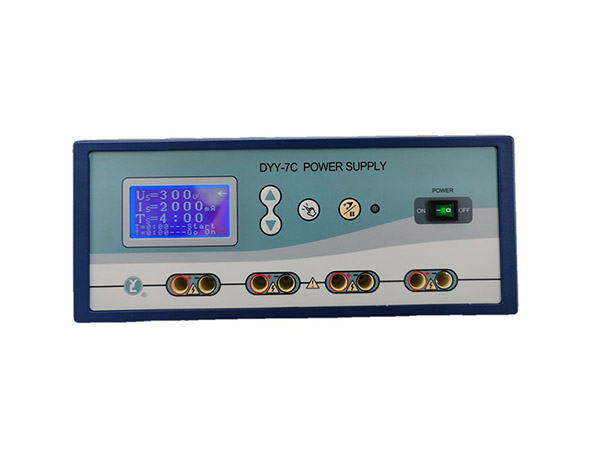

Model DYY-2C DYY-6C DYY-6D DYY-7C DYY-8C DYY-10C DYY-12 DYY-12C
Voltage 0-600V 6-600V 6-600V 2-300V 5-600V 10-3000V 10-3000V 20-5000V
Current 0-100mA 4-400mA 4-600mA 5-2000mA 2-200mA 3-300mA 4-400mA 2-200mA
Power 60W 240W 1-300W 300W 120W 5-200W 4-400W 5-200W
Type of output Constant voltage/constant current Constant voltage/constant current Constant voltage/constant current

/constant power

Constant voltage/constant current Constant voltage/constant current Constant voltage/constant current

/constant power

Constant voltage/constant current

/constant power

Constant voltage/constant current

/constant power

Display LED digital LCD Screen LCD Screen LCD Screen LCD Screen LCD Screen LCD Screen LCD Screen
Number of output jacks 2 sets 4 sets 4 sets 4 sets 2 sets 2 sets 4 sets 2 sets
Memory Function Yes Yes Yes Yes Yes Yes Yes Yes
Step / / 3 steps / / 9 steps 9 steps 9 steps
Timer Yes Yes Yes Yes Yes Yes Yes Yes
Volt-hour Control / / / / / Yes Yes Yes
Pause/resume function 1 group 1 group 10 groups 1 group 1 group 10 groups 10 groups 10 groups
Automatic recovery after power failure / / Yes / / / / /
Alarm Yes Yes Yes Yes Yes Yes Yes Yes
Low current maintain / / Yes / / / / /
Stable state Indicate Yes Yes Yes Yes Yes Yes Yes Yes
Overload detection Yes Yes Yes Yes Yes Yes Yes Yes
Short-circuit detection Yes Yes Yes Yes Yes Yes Yes Yes
No-load detection Yes Yes Yes / Yes Yes Yes Yes
Ground leak detection / / / / / Yes Yes Yes
Dimensions 315×290×128mm 315×290×128mm 246×360×80mm 315×290×128mm 315×290×128mm 303×364×137mm 303×364×137mm 303×364×137mm
Weight 5kg 5kg 3.2kg 5kg 5kg 7.5kg 7.5kg 7.5kg
