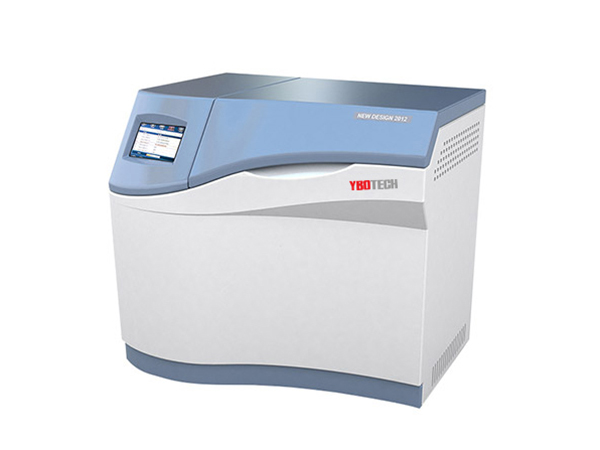

YBOTECH F22 automated fiber analyzer is used to resolve problems of over-consumption of work and time, improper fire control, easy-loss of the residue, the potential safety problem against the operators and etc, which are caused by crucible extraction method. For batch determination, this determinator is with obvious advantage of high efficiency, stabilization, and reagent saving.
Main Feature
- The color LCD touch-screen, which is strong functional, is equipped, simple interface for the user’s easy and convenient operation;
- Fully automatic digesting is designed, including automatic solvent inletting, heating, accurate temperature controlling, stirring, waste discharging, and cleaning can all be handled automatically, unattended operation.
- The F22 fully automated filter-bag fiber analyzer is used to resolve problems of over-consumption of work and time, improper fire control, easy-loss of the residue, the potential safety problem against the operators and etc, which are caused by crucible extraction method. For batch determination, this determinator is with obvious advantage of high efficiency, stabilization, and reagent saving.

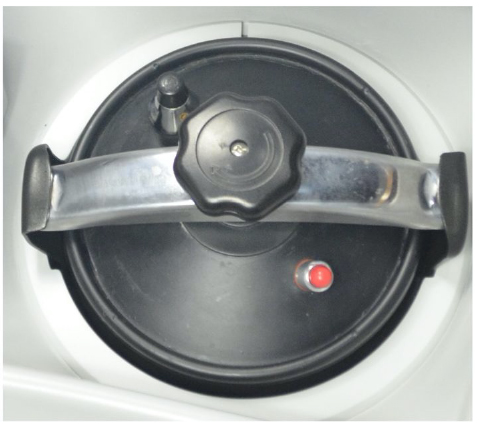

- YBOTECH fiber analyzer is adopted with the special design of high-pressure sealing, With a new small appearance, the analyzer is strong functional. Particularly the special reaction cylinder, digesting with integrated stirring method, which is of high stability and reliability, strong sample handling capacity, and obvious high efficiency, and is especially suitable for the large-workload end- users.
Application
- For crude fiber;
- For acid detergent fiber, neutral detergent fiber, lignin and insoluble dietary fiber.
Application Standard
- ISO 6865 & 92/89 EEC Crude Fiber in feed;
- ISO 16472 aNDF in animal feed;
- AOAC 2002.04 aNDF in feed;
- ISO 13906 ADF and ADL in animal feed.
Technical Specification
| Model | F22 |
| Temperature Range | Ambient temperature to 100℃ |
| Sample Volume/Bag | 0.2-5.0g |
| Measuring Range | 0.1% – 100% |
| Time Consumption/Run | 120 Minutes |
| Capacity/Batch | Up to 30 samples simultaneously |
| Capacity/Day | About 90–180 (under the condition of 8 hours working and with different fiber.) |
| Relative Deviation | ≤4% |
| Repeatability | ≤4% |
| Safety Requirement | Enclosed space, off-hand operation. |
| Installation Requirement | Routine laboratory environment, no need cooling water |
| Power Supply | AC220V 50Hz |
| Dimensions | 375 X 500 X 450(mm) |
| Weight | 25Kg |
Packing Includes
| No. | Description | Specification | Qty |
| 1 | F22 Fiber Analyzer | 1 PC | |
| 2 | Filter Bag | FB25 | 100 PC |
| 3 | Filter Head | 3 PCS | |
| 4 | Filter Bag Tray | 1 PC | |
| 5 | Dry Bag | 1 PC | |
| 6 | Weighing Cup | 1 PC | |
| 7 | Solvent Resistant Marking Pen | 1 PC | |
| 8 | Heating Sealer | S200 | 1 PC |
| 9 | Rubber Hose | Φ15 * Φ8mm | 2 Meters |
| 10 | Silicon Rubber Pipe | Φ12 * Φ8mm | 6 Meters |
| 11 | Pipe Clamp | Φ12 | 4 PCS |
| 12 | Pipe Clamp | Φ16 | 1 PC |
| 13 | Touch Pen | 1 PC | |
| 14 | Operation Manual | 1 PC | |
| 15 | Quality Certification | 1 PC | |
| 16 | Warranty Card | 1 PC |
