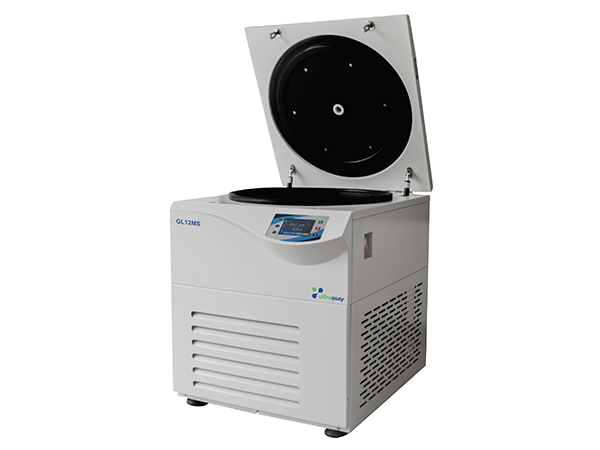

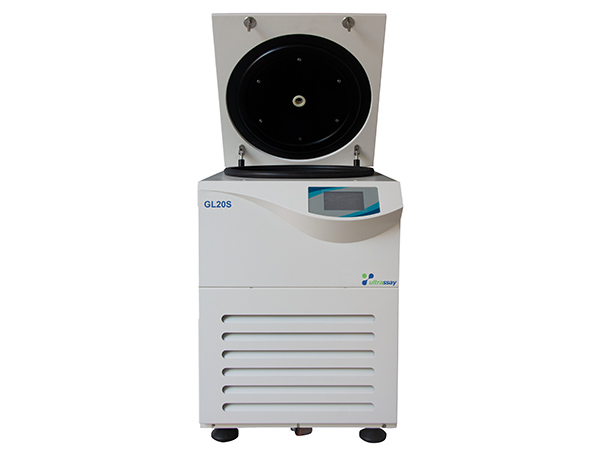

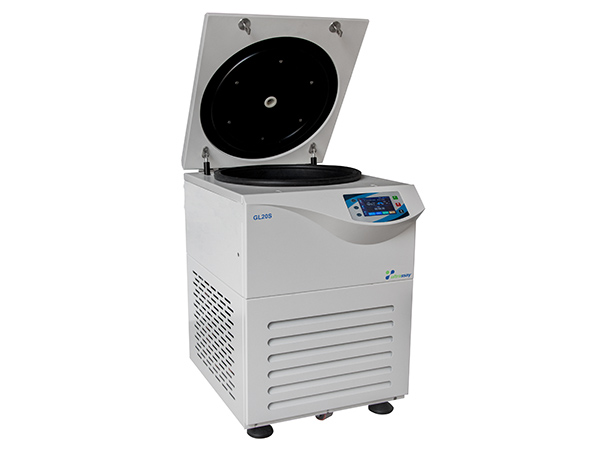

YBOTECH Floor Stand High Speed Refrigerated Centrifuges are widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.
Feature
- Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Imported compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
- Microprocessor control, LCD touch screen displays which indicates the temperature, speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
- 100 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect inner sleeve, 3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
Product Specification
| Model | GL10S | GL12S | GL20S | GL21MS |
| Max. Capacity | 6x1000ml | 4x1000ml | 4x800ml | 4x1000ml |
| Max. Speed | 10000rpm | 12000rpm | 20000rpm | 21000rpm |
| Speed Accuracy | ±20rpm | |||
| Max. RCF | 15730×g | 22650×g | 30910×g | 46140×g |
| Time Range | 0~99min | |||
| Temp. Range | -20~40℃ | |||
| Temp. Accuracy | ±1℃ | |||
| Display | 7” LCD Touch Screen | |||
| Noise | ≤ 65dBA | |||
| Acc/Dec | 10 Kinds | |||
| RPM/RCF Convert | Yes | |||
| Power Supply | AC 220V/380V 50HZ/60HZ | |||
| Dimension (mm) | 940x890x1000 | 780x675x830 | 720x540x830 | 800x740x930 |
| N.W. (kg) | 600 | 260 | 170 | 300 |
Available Rotor
| Order No. | Rotor | Rotor Max Speed
(r/min) |
Volume
(ml) |
RCF
(×g) |
| G20-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
| G20-2 | Microplate rotor | 4000 | 4×4×96 well | 2940 |
| G20-3 | Microplate rotor | 4000 | 2×4×96 well | 3210 |
| G20-4 | Microplate rotor | 4000 | 2×3×48 well | 2300 |
| G20-5 | Swing rotor | 4000 | 4×40×7ml vacuum tube | 3270 |
| G20-6 | 4000 | 4×40×5ml vacuum tube | 2890 | |
| G20-7 | 4000 | 4×28×10ml vacuum tube | 3130 | |
| G20-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
| G20-9 | Fixed Rotor | 16000 | 4×8PCR | 15760 |
| G20-10 | Fixed Rotor | 15000 | 6×8PCR | 21420 |
| G20-11 | Fixed Rotor | 16000 | 8×8PCR | 17480 |
| G20-12 | Fixed Rotor | 15000 | 12×8PCR | 22930 |
| G20-13 | Fixed Rotor | 15000 | 40×0.5ml | 22920 |
| G20-14 | Fixed Rotor | 21000 | 12×1.5ml | 30910 |
| G20-15 | Fixed Rotor | 16000 | 24×1.5ml | 23440 |
| G20-16 | Fixed Rotor | 14000 | 30×1.5ml | 20800 |
| G20-17 | Fixed Rotor | 13000 | 48×1.5ml | 17930 |
| G20-18 | Fixed Rotor | 16000 | 16×5ml | 22020 |
| G20-19 | Fixed Rotor | 16000 | 6×10ml | 21500 |
| G20-20 | Fixed Rotor | 15000 | 12×10ml | 22680 |
| G20-21 | Fixed Rotor | 13000 | 16×10ml | 19490 |
| G20-22 | Fixed Rotor | 13000 | 8×15ml | 17790 |
| G20-23 | Fixed Rotor | 11000 | 12×15ml | 14330 |
| G20-24 | Fixed Rotor | 5000 | 24×15ml | 3500 |
| G20-25 | Fixed Rotor | 5000 | 30×15ml | 3830 |
| G20-26 | Fixed Rotor | 14000 | 6×30ml | 19060 |
| G20-27 | Fixed Rotor | 13000 | 6×50ml (conical) | 18840 |
| G20-28 | Fixed Rotor | 13000 | 6×50ml (round) | 18730 |
| G20-29 | Fixed Rotor | 5000 | 12×50ml | 3860 |
| G20-30 | Fixed Rotor | 4000 | 24×50ml | 2970 |
| G20-31 | Fixed Rotor | 13000 | 4×85ml | 18940 |
| G20-32 | Fixed Rotor | 12000 | 4×100ml | 14850 |
| G20-33 | Fixed Rotor | 10000 | 6×100ml | 11380 |
| G20-34 | Fixed Rotor | 4000 | 12×100ml | 2970 |
| G20-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
| G20-36 | Swing Rotor | 15000 | 4×5ml | 19920 |
| G20-37 | Vertical rotor | 16000 | 16×5ml | 16450 |
| G20-38 | Vertical rotor | 14000 | 8×30ml | 19750 |
