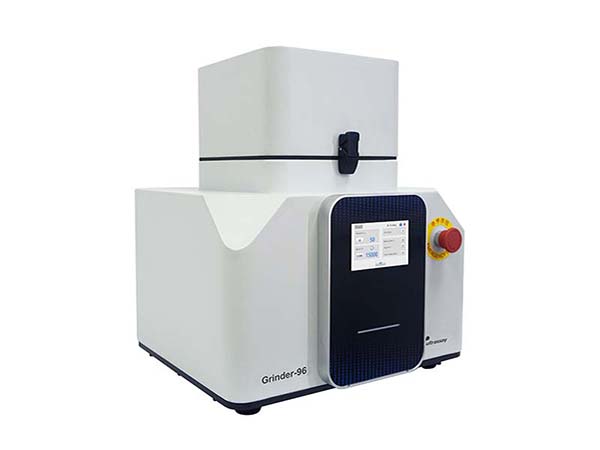

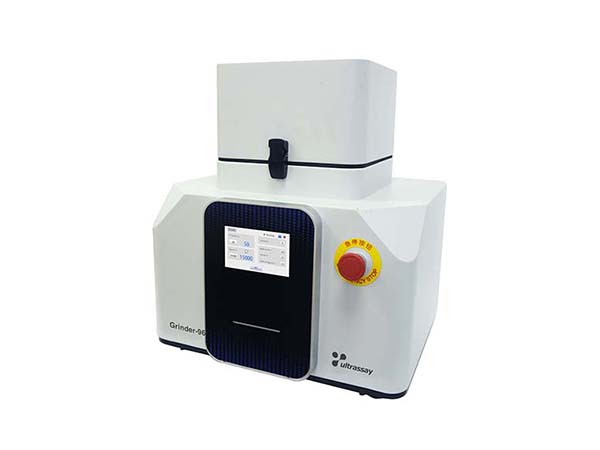

Grinder-96 Tissue Lyser

YBOTECH Grinder-96 Tissue Lyser grinds a broad variety of biological samples due to high frequency vertical vibration, which is controlled by frequency converter. Various adaptors for options accommodating tubes from 2ml to 50ml, commonly used for sample pretreatments in industries of biology, microbiology, medical analysis and etc. Touch screen and UI design are user-friendly and easy-to-operate, it will be a good assistant in a laboratory.

Features
  • Touch screen
  • Applied to various samples
  • Replaceable tube adaptors
  • Maintenance free, low noise
  • Reinforced motor with strengthened main shaft
  • Adjustable frequency, editable program
Technical Parameters
Model Grinder-96
Speed Range 900-2100 rpm
Frequency Range 30Hz-70Hz
Feed size According to tube size
Grinding beads diameter 0.1-30mm
Noise Level <55db
Size(W×D×H)  460x410x520 (mm)
Grinding beads material Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand
Capacity 32x2ml/24x2ml/48x2ml/64x2ml/96x2ml/24x5ml/8x15ml/4x25ml/2x50ml
Acceleration Time Within 2 sec
Deceleration Time Within 2 sec
Tube Holder Materials PTFE / Alloy steel / Aluminiun alloy
Final Fineness 0.1-30mm/~5µm
Safety Guard Emergency stop button
Voltage AC 200V-240V 50/60HZ
Weight 52kg
