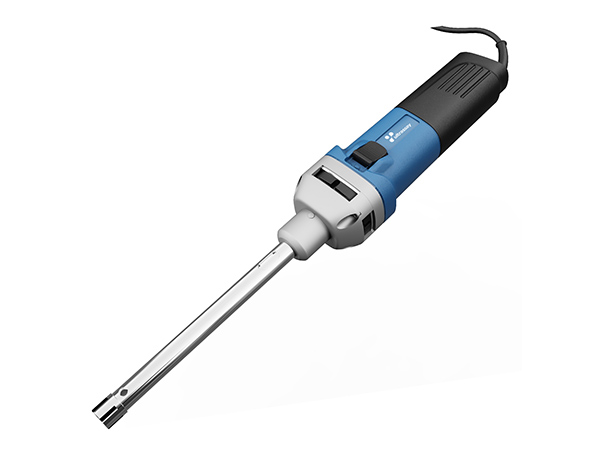

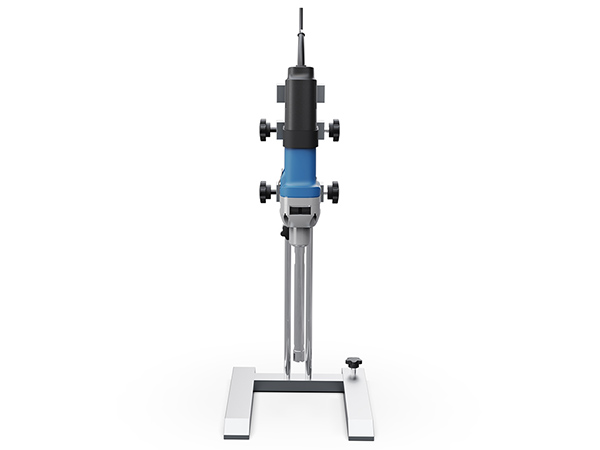

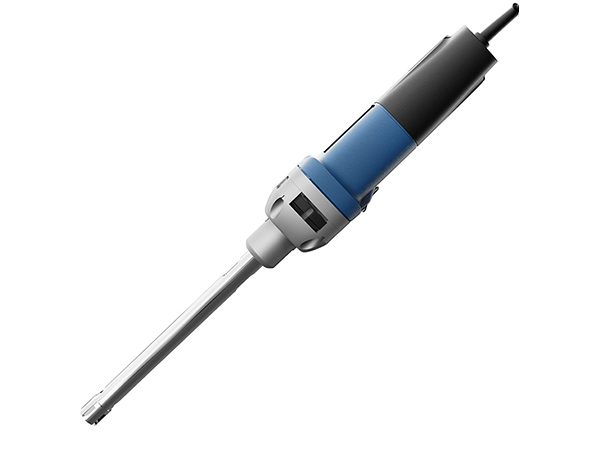

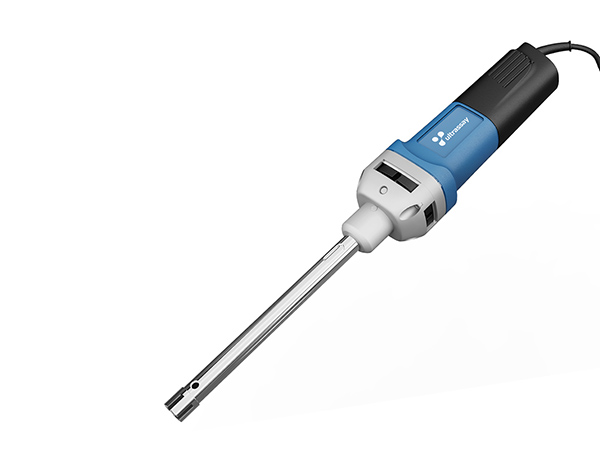

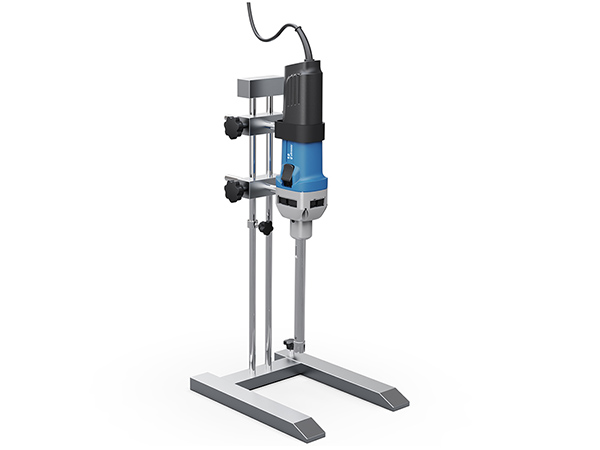

High Shear Homogenizer

Ultrassay D500 High Shear Homogenizer is applicable to various tasks from sample preparation to formulation study. The motor drives the rotor to rotate at high speed, and the sample is homogenized or dispersed by the gap between the rotor and stator, usually in a short period of time.

Main Feature
  • Viscosity up to 10,000 mPas
  • 6 modes of motor speed from 10,000 to 30,000 rpm
  • All-round safety guarantee for motor drive, overload protection and smooth operation
  • 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions
  • Easy dismantling for fast preparation
  • All shafts are interchangeable for easy dismantling and cleaning
Application

Widely applied for histocyte lysis, cell homogenization, emulsion, nanometer scale dispersion process in biology, pharmaceutical, genetic and pathology study, diary product or fruit homogenization, polymerization reaction, production of fragrance, cosmetics, textile auxiliary, food, ink, paints, asphalt, fine chemicals, agricultural chemicals, and analysis in mineral exploration, environmental protection and energy resource exploration.

  • Routine homogenization, emulsion, depolymerization, dispersion application
  • Disperse substance to form suspension and emulsion
  • Disperse pigment and resin
  • Disperse animal or human tissue into various solution
  • Facilitate the dissolve of solid substances
  • Sample preparation for quality control test
  • Animal or plant cell lysis
  • Emulsion, cream cosmetics, and food formulation study
  • Extraction of active pharmaceutical ingredient from pills and tablets
Technical Specification
Model D500
Speed 10000~30000rpm
Rotor speed range 22.7~36m/s
Speed level 6 levels
Sample processing volume range 10~40000mL
Maximum viscosity 10000mPas
Contact material 316L Stainless steel/PTFE
Sound pressure level 79dB(A)
Protection IP20
Voltage 110~120V 60Hz;

220~240V 50Hz/60Hz

Power 500W
Motor AC carbon brush motor
Dimension (after assemble) 340×300×600mm
Host weight 1.7kg
