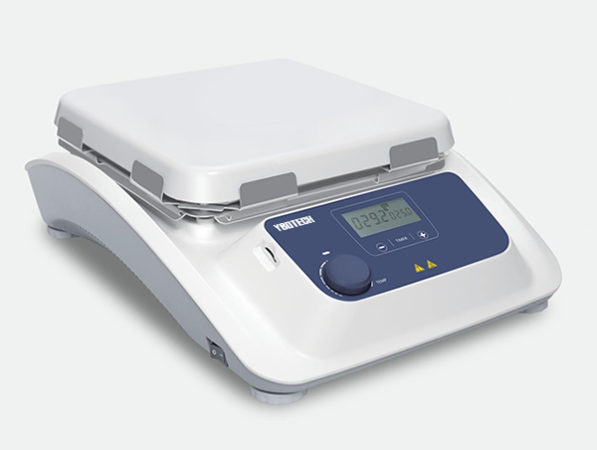

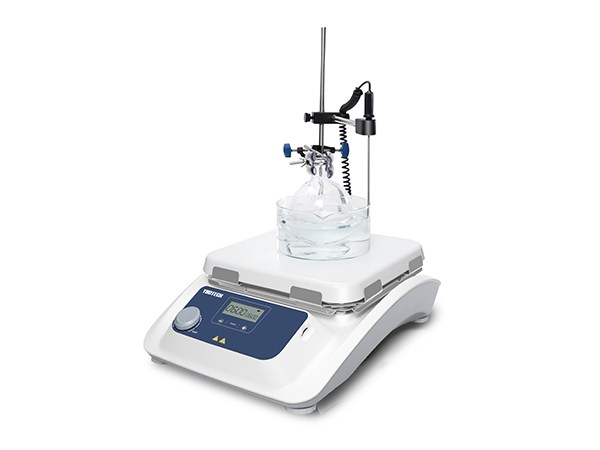

LCD Digital Hotplate
HP500-Pro
YBOTECH HP500-Pro Digital Hotplate is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
Main Feature
- LCD screen shows temperature, Max. temperature up to 500℃
- 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
- External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C
- The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
- Heating temperature: room temperature -500℃.
- Data connector : The SD card records the instrument’s running data in real time.
- Timing function: the running time of the instrument can be set.
Technical Specification
| Specifications | HP500-Pro |
| Work plate Dimension | 254x254mm (10 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Power | 1400W |
| Heating output | 1350W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity (H2O) | 0.4L x 10 |
| Max. magnetic bar (length) | 40mm |
| Speed range | 0-1100rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-500℃, increment 1℃ |
| Over heat Protection | 540℃ |
| Temperature display accuracy | ±1℃ (<100℃)±1%(>100℃) |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Timer function | 1min-99h59min |
| Protection class | IP21 |
| Dimension [W x D x H] | 328x424x138mm |
| Weight | 7.2kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
