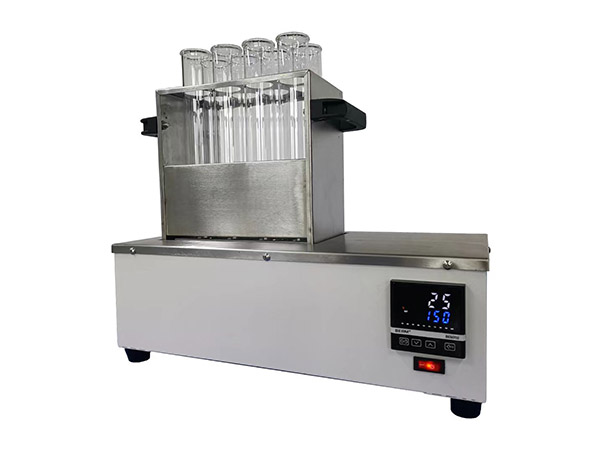

YBOTECH KND-L Aluminum Block digester is designed based on the classic wet digestion principle for sample digestion and conversion. It is mainly used in agriculture, forestry, environmental protection, geology, petroleum, chemistry, food sectors, as well as in universities and research departments for the digestion of samples such as plants, seeds, feed, soil, and ores before chemical analysis. It is the ideal accessory for Kjeldahl nitrogen analyzers.
Main Feature
- This series utilizes infrared radiation heating technology with stainless steel heating tubes, offering fast heating and long lifespan.
- The KND-L series aluminum alloy heating module features aerospace-grade coating technology, making it both aesthetically pleasing and durable, with a design temperature of 450°C.
- Equipped with a liquid crystal display temperature controller, it includes timed shutdown and alarm functions, employing PID intelligent control technology for high temperature accuracy and minimal fluctuations, making it simple to learn.
- The instrument’s work surface and test tube rack are made from welded brushed stainless steel, providing some corrosion resistance.
Technical Specification
| Model | KDN-8L | KDN-10L | KDN-20L |
| Sample Well | 8 | 10 | 20 |
| Well Diameter | Φ42.5x25mm | ||
| Heating Block | Aluminum | ||
| Design Temperature | 450℃ | ||
| Temp. Accuracy | ±1℃ | ||
| Heating Rate | 6~10℃/min | ||
| Display | 4-inch touch screen | ||
| Timer | 1~999 mins | ||
| Power Supply | 220V/50Hz | ||
| Power Consumption | 1KW | 1.4KW | 2.1KW |
| Tube Rack | 8 wells x 1 | 10 wells x 1 | 20 well x 1 |
| Tube | 300ml x 8 pcs | 300ml x 10 pcs | 300ml x 20 pcs |
