YBOTECH 62L Large Capacity Water Bath is applicable for distillation, concentration, drying and thermostatic heating of medical units, universities and colleges, scientific research units and laboratories of industrial and mining enterprises like chemical printing and dyeing enterprises and pharmaceutical enterprises.
Feature
- The enclosure of the product is formed and machined by using high-quality steel plate. Static electric spraying process is adopted on the surface, which is sturdy and durable. The inner container is finished by the stainless steel stretching.
- The liner and upper cover are made of high-quality stainless steel plate, featuring strong corrosion resistance.

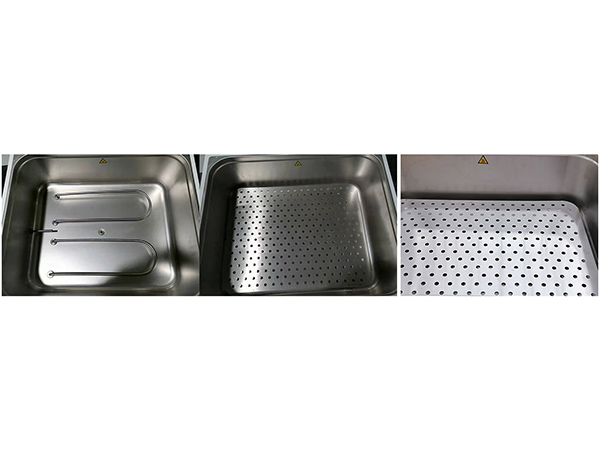

- U-shaped heating pipe is adopted for direct heating in water. The temperature rise is quick and the thermal loss is small.
- Single-row digital display or intelligent temperature controller boasts simple operation and favorable application effect.
Product Specification
| Model | YWT2000IVL | |
| Technical Specification | Temp. Range | RT+5 ~ 100℃ |
| Temp. Resolution | 0.5℃ | |
| Temp. Uniformity | ±1.0℃ | |
| Structure | Water Tank | Stainless Steel |
| Outer Shell | Cold rolling steel | |
| Upper Cover | Stainless Steel | |
| Controller | Heater | Stainless steel heating tube |
| Temp. control Mode | PID Controller | |
| Temp. Display | Digital display | |
| Timer | 0 ~ 999 min | |
| Operation | Fixed value operation, timing function, auto stop | |
| Sensor | NTC | |
| Additional | Deviation correction, menu keys lock, power-off/failure memory | |
| Safety Device | Over temp. alarm | |
| Configuration | Water Tank Size | 620x500x200mm |
| Exterior Size | 650x530x330mm | |
| Packing Size | 760x640x430mm | |
| Volume | 62L | |
| Power Supply | AC220V, 50/60Hz | |
| N.W./G.W. | 17/25kg | |
| Accessories | No | |
