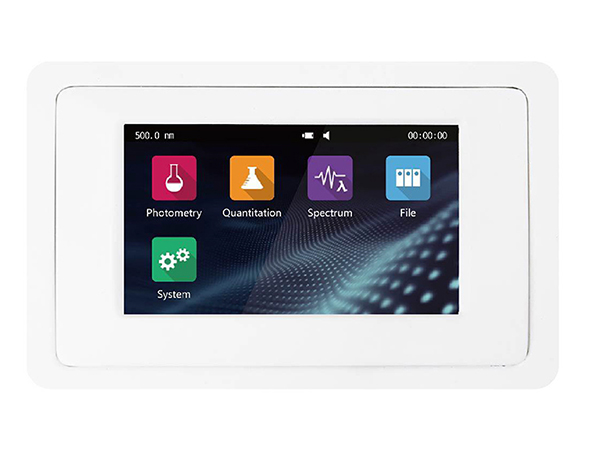

As a part of Precision Series, ultrassay™ m3/m4 Split Double Beam UV/Vis Spectrophotometer is a user-friendly instrument with advanced performance. With its stray lightless than 0.05%T, it is highly accurate and reliable. It provides several basic functions, such as photometry test, quantitation test and spectrum scanning. Optionally, It can be connected with computers through USB interface and controlled by the included Easy UV 1.0 software.
Feature
Photometry Measurement
Measure absorbance and transmission at any defined wave length.
Quantitation
By measuring reference samples and establish standard curve, to determine unknow samples. Support built-in and customized fornulation to establish standard curve.

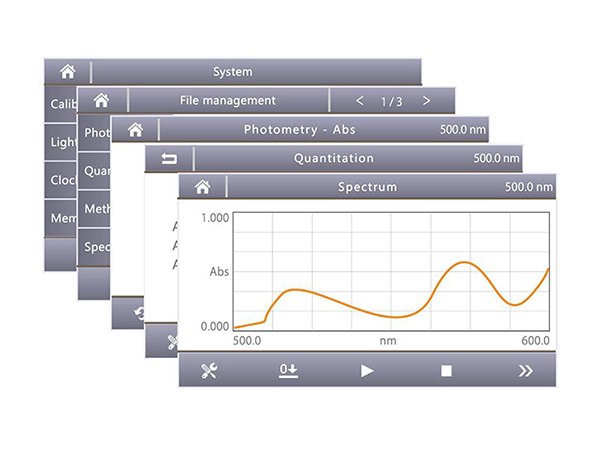

Wavelength Scanning
Determine full wave length absorbance and transmission at defined wave length interva, generate the graph and serach for peaks and valleys, analyzer the graph by built-in methods.
Application Extension in Computer
The application can be extended by using computer operation. Such as lunimosity determinatioon, multiple wavelength measurement, quantitative analysis, dynamic determinatioon, DNA/Protein deternination and spectral measurement.
Product Specification
| Model | M3 | M4 | M5 | M6 | M7 | M8 | M9 |
| Optical System | Split Double Beam | Double Beam | |||||
| Light Source | Flashing Xenon Lamp | ||||||
| Wavelength Range | 190 ~ 1100nm | ||||||
| Spectrum Bandwidth | 4nm | 2nm | 1.8nm | 1.0nm | 1.8nm | 1nm | 0.5/1/2/4/5 Auto Adjustable |
| Spectrum Scanning | Yes | ||||||
| Display | 5 inch Color Touch Screen | 8 inch Color Touch Screen | 10.1 inch Color Touch Screen | ||||
| Operation System | / | Microsoft Windows | |||||
| Output | USB, Serial Port, Bluetooth (Optional) | USB, Bluetooth,WIFI, HDMI | USB, Ethernet, HDMI, VGA, WIFI (Optional), Bluetooth (Optional) | ||||
| Languate | 6 Languages (English, German, French, Spanish, Portuguese, Chinese/Russian) | 10 Languages (English, German, French, Spanish, Portuguese, Italian, Chinese, Russian, Japanese, Korean) | |||||
Packing List
| Part No. | SN | Description | Qty |
| M3/M4 | 1 | Instrument | 1set |
| 2 | User’s manual | 1pc | |
| 3 | Cuvette glass,10mm | 4pcs | |
| 4 | Fuse (3.15A/250V) | 2pcs | |
| 5 | Power cable (national standard) | 1pc | |
| 6 | Dustcover | 1pc | |
| MEAS: | 456 (W) x 360 (D) x 185 (H) mm | ||
| N.W.: | 10.7KGS | ||
| G.W.: | 13.7KGS | ||
