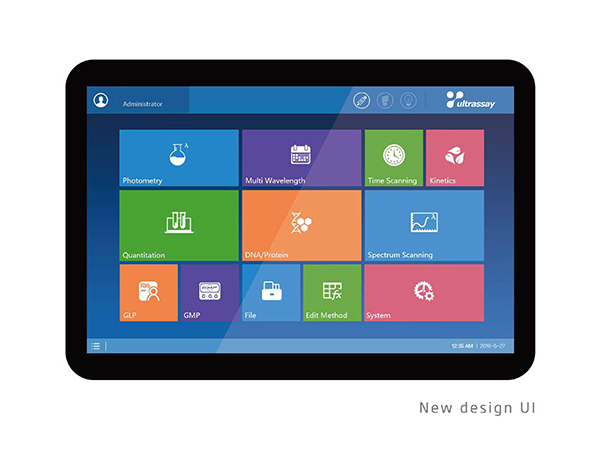

ultrassay™ M5/M6 Flashing Xenon Lamp Split Double Beam UV/VIS Spectrophotometer is a user-friendly instrument with advanced performance. With its stray lightless than 0.05%T, it is highly accurate and reliable. It provides several basic functions, such as photometry test, quantitation test and spectrum scanning. Optionally, It can be connected with computers through USB interface and controlled by the included Easy UV 1.0 software.

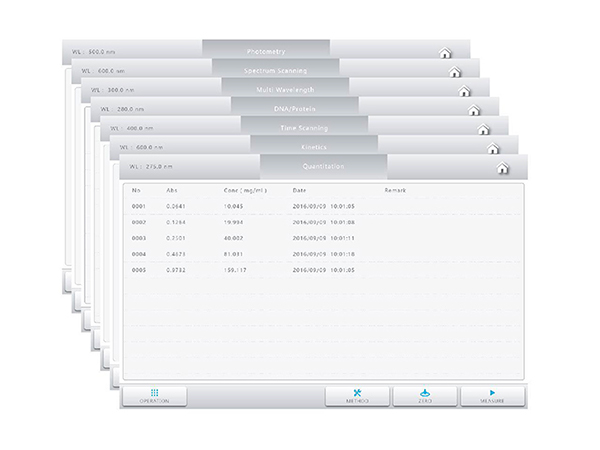

Photometry Measurement
Measure absorbance and transmission at any defined wave length.
Multi-wavelength Measurement
Measure absorbance and transmission at multiple wave-length and analyze the results by built-in methods.
Time Scanning
Determine real-time absorbance and tranmission at any defiend wave length.
Kinetics
Determine absorbance at any time interval and defined wavelength. It can be used to monitor real-time enzyme reactioon and calculate enzyme activity according to the results. The reaction rate of samples can be calculated by setting the interval time.
Quantitation
By measuring reference samples and establish standard curve, to determine unknow samples. Support built-in and customized fornulation to establish standard curve.
DNA/Protein Determination
According to the sample type, chose suitable method to determine DNA, RNA and protein concentration.
Wavelength Scanning
Determine full wave length absorbance and transmission at defined wave length interva, generate the graph and serach for peaks and valleys, analyzer the graph by built-in methods.
Customized Methods
Users can adjust the calcualtion methods upon own prequirement and use it in corresponding determining module.
Model | M3 | M4 | M5 | M6 | M7 | M8 | M9 |
Optical System | Split Double Beam | Double Beam | |||||
Light Source | Flashing Xenon Lamp | ||||||
Wavelength Range | 190 ~ 1100nm | ||||||
Spectrum Bandwidth | 4nm | 2nm | 1.8nm | 1.0nm | 1.8nm | 1nm | 0.5/1/2/4/5 Auto Adjustable |
Spectrum Scanning | Yes | ||||||
Display | 5 inch Color Touch Screen | 8 inch Color Touch Screen | 10.1 inch Color Touch Screen | ||||
Operation System | / | Microsoft Windows | |||||
Output | USB, Serial Port, Bluetooth (Optional) | USB, Bluetooth,WIFI, HDMI | USB, Ethernet, HDMI, VGA, WIFI (Optional), Bluetooth (Optional) | ||||
Languate | 6 Languages (English, German, French, Spanish, Portuguese, Chinese/Russian) | 10 Languages (English, German, French, Spanish, Portuguese, Italian, Chinese, Russian, Japanese, Korean) |
Part No. | SN | Description | Qty |
M5/M6 | 1 | Instrument | 1set |
2 | User’s manual | 1pc | |
3 | Cuvette glass,10mm | 4pcs | |
4 | Fuse (3.15A/250V) | 2pcs | |
5 | Power cable (national standard) | 1pc | |
6 | Dustcover | 1pc | |
MEAS: | 456 (W) x 360 (D) x 185 (H) mm | ||
N.W.: | 10.7KGS | ||
G.W.: | 13.7KGS |
Request for quotation
