M7/M8/M9 Flashing Xenon Lamp Double Beam UV/VIS Spectrophotometer

ultrassay™ M7/M8/M9 Flashing Xenon Lamp Double Beam UV/VIS Spectrophotometer is a user-friendly instrument with advanced performance. With its stray lightless than 0.05%T, it is highly accurate and reliable. It provides several basic functions, such as photometry test, quantitation test and spectrum scanning.

Feature

Photometry Measurement

Measure absorbance and transmission at any defined wave length.

Multi-wavelength Measurement

Measure absorbance and transmission at multiple wave-length and analyze the results by built-in methods.

Time Scanning

Determine real-time absorbance and tranmission at any defiend wave length.

Kinetics

Determine absorbance at any time interval and defined wavelength. It can be used to monitor real-time enzyme reactioon and calculate enzyme activity according to the results. The reaction rate of samples can be calculated by setting the interval time.

Quantitation

By measuring reference samples and establish standard curve, to determine unknow samples. Support built-in and customized fornulation to establish standard curve.

DNA/Protein Determination

According to the sample type, chose suitable method to determine DNA, RNA and protein concentration.

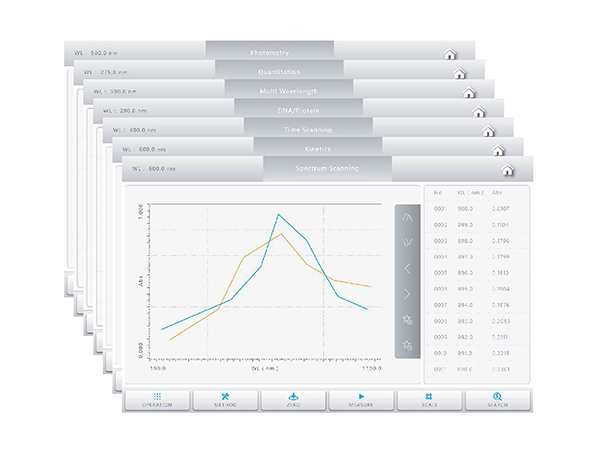

Wavelength Scanning

Determine full wave length absorbance and transmission at defined wave length interva, generate the graph and serach for peaks and valleys, analyzer the graph by built-in methods.

Customized Methods

Users can adjust the calcualtion methods upon own prequirement and use it in corresponding determining module.

Product Specification
Model M3 M4 M5 M6 M7 M8 M9
Optical System Split Double Beam Double Beam
Light Source Flashing Xenon Lamp
Wavelength Range 190 ~ 1100nm
Spectrum Bandwidth 4nm 2nm 1.8nm 1.0nm 1.8nm 1nm 0.5/1/2/4/5 Auto Adjustable
Spectrum Scanning Yes

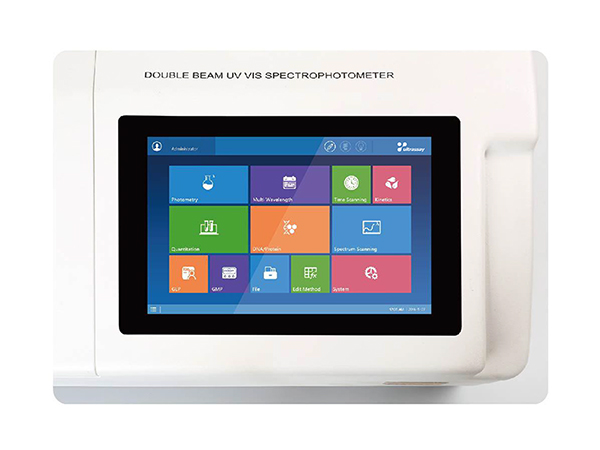

Display 5 inch Color Touch Screen 8 inch Color Touch Screen 10.1 inch Color Touch Screen
Operation System / Microsoft Windows
Output USB, Serial Port, Bluetooth (Optional) USB, Bluetooth,WIFI, HDMI USB, Ethernet, HDMI, VGA, WIFI (Optional), Bluetooth (Optional)
Languate 6 Languages (English, German, French, Spanish, Portuguese, Chinese/Russian) 10 Languages (English, German, French, Spanish, Portuguese, Italian, Chinese, Russian, Japanese, Korean)
Packing List
Part No. SN Description Qty
M5/M6 1 Instrument 1set
2 User’s manual 1pc
3 Cuvette glass,10mm 4pcs
4 Fuse (3.15A/250V) 2pcs
5 Power cable (national standard) 1pc
6 Dustcover 1pc
MEAS: 456 (W) x 360 (D) x 185 (H) mm
N.W.: 10.7KGS
G.W.: 13.7KGS

Related suggestion

Request for quotation

Name *
Fill out this field
E-mail *
Please enter a valid email address.
Phone *
Fill out this field
Country
Fill out this field
Company name
Fill out this field
Leave a message *
Fill out this field
Packing List
Part No. SN Description Qty
M7/M8/M9 1 Instrument 1set
2 User’s manual 1pc
3 Cuvette quartz, 10mm 2pcs
4 Cuvette glass,10mm 4pcs
5 Power cable (national standard) 1pc
6 Dust cover 1pc
