Ultrassay® Magic Multifunction Imaging system provides high performance with ease of use for visible light (RGB) and far red/near infrared (FR/NIR) fluorescence and chemiluminescence detection and all general gel documentation applications. They adopt electronic lifting platforms to adjust the best capture area for diverse sizes of the different samples. The removable PC, which is an optional accessory, runs quickly and feasibly, and avoids any after sales risks caused by embedded Windows Pad.

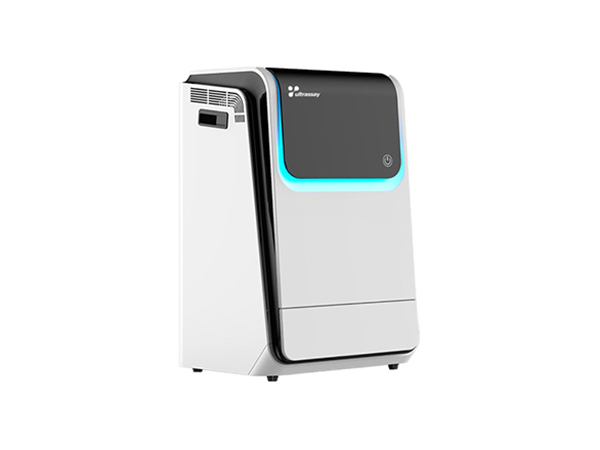

Ultrassay® Magic Multifunction Imaging System
Feature
Super sensitive cooled digital camera
High Sensitivity, High resolution, High performance for long exposure time up to 30 mins (UB-Magic 100) and 60 mins (UB-Magic 523).
Electronic lifting platform
Electronic Lifting Platform for diverse sizes of different samples
Various LED light sources
UV transmission, White transmission, Blue transmission, Epi-White and Epi-RGB light sources are optional.
Upgrade to fluorescence module
Upgrade to fluorescence module available (Incl. Visible RGB and NIR).
Application
- Chemilluminescence Imaging, ECL Western Blotting;
- Fluorescence Imaging, Fluorescent Western Blotting;
- Gel Doc Application;
- Protein gel, SDS Pages.
Product Specification
| Model | UB-Magic 100 | UB-Magic 523 | |
| Cooled Digital Camera |
Sensor | Back illuminated CMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0 Megapixels | 6.0 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 × 4.54 μm | |
| Temperature | -60 ºC below ambient (-30 ºC regulated) | ||
| Dynamic Range | 4.8 OD | ||
| Pixel Density | 16bit (65536 Grey scales) | ||
| Bining Mode | 1×1, 2×2, 4×4, 5×5, 6×6, 8×8 | 1×1, 2×2, 4×4, 5×5, 6×6, 8×8, 12×12, 16×16, 24×24 | |
| Lens | Electronic Lens | F0.95 as standard (optional F0.8) Auto focus | |
| View Area | Standard 18.5x16cm, Optional 22x18cm | ||
| Samples | Chemi Imaging | Electronic Lifting Platform for diverse sizes of western blotting membranes | |
| Gel Documentation | UV transilluminator (Area 21x26cm), Blue transilluminator (optional) | ||
| Protein Gels | White LED transilluminator (Area 19x26cm) | ||
| Optional Module | Epi-UV, RGB and NIR fluorescent detection | ||
| Power Supply | 110~220V, 50/60Hz | ||
| Overall Size | 45×39×71cm | ||
| Weight | 40kg | ||
| Software | Capture | UBEP Capture Software | |
| Analysis | UBEP Analysis Software | ||
| Optional PC | Removable PC with 13.1 Inch Touch Screen, RAW 4GB/SSD 256GB, WIN10 | ||
