MiniHCL100/MiniHC100/MiniH100
Portable and option to power by automobile power adapter

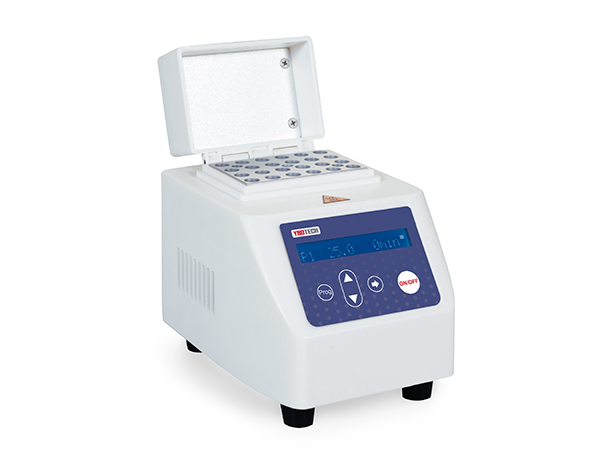

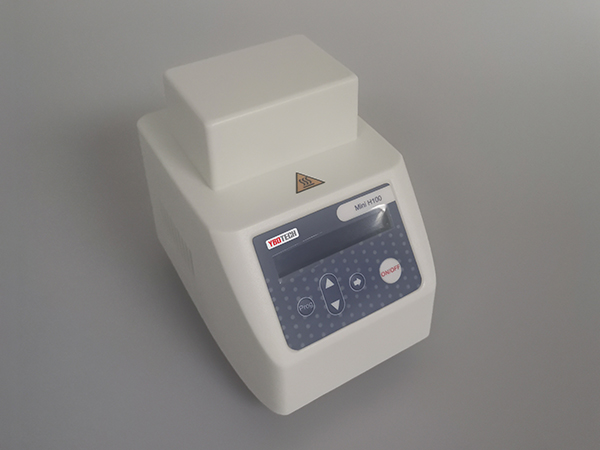

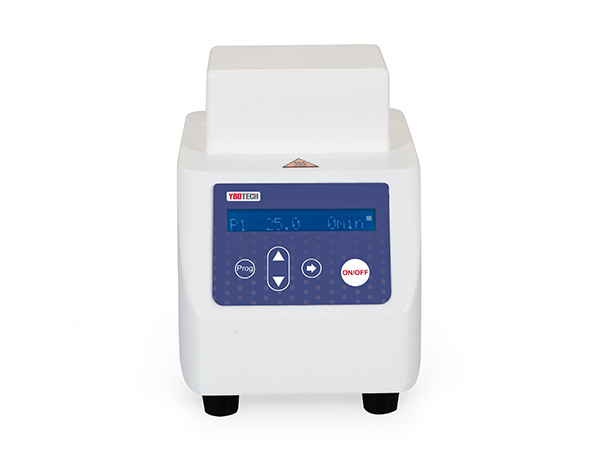

Mini Dry Bath
YBOTECH Mini Dry Bath provides precise temperature for various experiments. Thermo mix also has mixing function, and widely used in various fields such as molecular biology and cell biology, including gene synthesis, gene purification, gene cloning, gene expression, protein expression analysis , enzyme reaction, bacterial growth and so on.
Main Feature
- Mini, lightweight, safe with LCD display
- Digital control over both temperature and time
- Built-in user re-calibration function guarantees long term temperature accuracy
- Overheating protection
- Optional cooling function

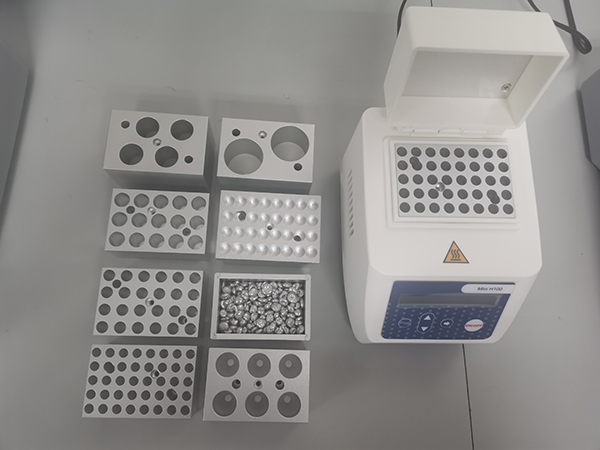

- Interchangeable blocks for a wide variety of test tube sizes
- Mini HCL100 with hot lid to prevent water condensing on the tube cap
Application
Useful for rapid and uniform heating of biological samples in applications like preservation, denaturation of nucleic acids and proteins, and many other applications.
Technical Specification
| Specifications | Mini HCL100 | Mini HC100 | Mini H100 |
| Temp. setting range | 0~100℃ | 0~100℃ | 25~100℃ |
| Temperature range | Room temperature+23~100℃ | Room temperature+23~100℃ | Room temperature+5~100℃ |
| Temperature control accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Temperature display accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| Minimum time taken for heating (25℃+100℃) | ≤20min | ≤20min | ≤20min |
| Minimum time for cooling (20℃-0℃) | ≤25min | ≤25min | – |
| Max. Heating Rate | 8℃/min | 8℃/min | 6.5℃/min |
| Max. Cooling Rate | 3℃/min | 3℃/min | – |
| Power | 60W | 60W | 60W |
| Time setting range | 0-999min/0-999sec | 0-999min/0-999sec | 0-999min/0-999sec |
| Program Memory | 9(2steps for each) | 9(2steps for each) | 9(2steps for each) |
| Display | LCD | LCD | LCD |
| Temperature self-calibration | Support | Support | Support |
| USB interface | Support | Support | Support |
| Error code display | Support | Support | Support |
| Voltage,Frequency | 110/220V,50/60HZ | 110/220V,50/60HZ | 110/220V,50/60HZ |
| External Dimension | 110x162x140mm | 110x162x140mm | 110x162x140mm |
| Weight | ≤1kg | ≤1kg | ≤1kg |
| Operating temperature | 10-40℃ | 10-40℃ | 10-40℃ |
| Operating humidity | ＜80%RH | ＜80%RH | ＜80%RH |
