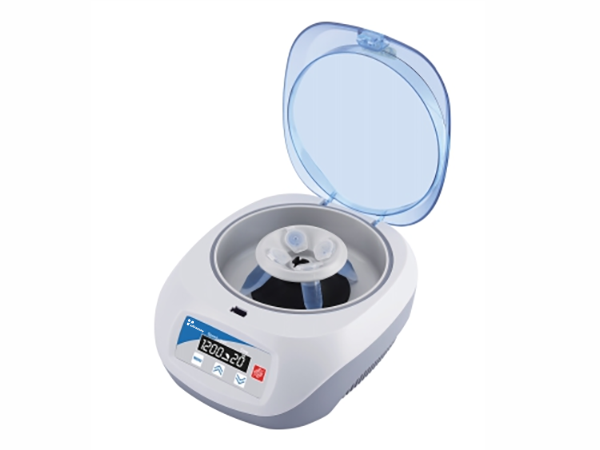

MiniL-7G/ MiniL-12G Micro Centrifuge

  1. MiniL micro centrifuge is widely used in laboratory and hospital.
  2. This model can fit in 5ml, 2ml, 1.5ml, 0.5ml and 0.2ml tubes.
  3. The handheld centrifuge is very suitable for microtubule filtration and fast centrifugation, the micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.
  4. Light weight, small size and beautiful design.
  5. Easily control, super speed protection.
  6. LCD display
Technical Specification
Product number MiniL-7G MiniL-12G
Input power AC100-250V/50/60Hz
Power fuse PPTC / self-recovery fuse / no need to replace
Input power (W) 45W
Control method ST16 bit MCU/PWM/speed regulation;
Display method Black and white LCD
Motor DC24V/DC permanent magnet motor
Effective centrifuge time 1-99min./1-59sec.
Speed (r/min.) 500~7000rpm±5% 500~12000rpm±5%
Speed increase 500rpm
Maximum relative centrifugal force (×g) 3286×g 9660×g
Misoperation/fault alarm Voice prompt + display code
Size: L × W × H (mm) 194×229×120
Weight (no rotor) 2Kg
Noise at maximum speed ≤43dB(A) ≤47dB(A)
Fastest acceleration time ≤12s
Fastest deceleration time ≤16s
Protection level IP21
Allowable ambient temperature / relative humidity 5-40℃/80%
Testing standard   EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2
Available Rotors

MiniL-7G

Product number Rotary number (Rotor) Capacity

(ml × tube number)

Maximum speed (r/min.) Max Rcf

Test tube type



MiniL-7G-A-1 #1 Angle-rotor 1.5/2.2×12+PCR0.2×8×4 row 7000 3232 PP cone bottom cover
MiniL-7G-A-2 #2 Angle-rotor PCR 0.2×12×4 row 7000 2210 PP cone bottom cover
MiniL-7G-A-3 #3 Angle-rotor 5×4 7000 3286 EP cone bottom cover
MiniL-7G-A-4 #4 Angle-rotor 5/1.8/1.1×4 7000 3180 PP can be screwed

Please note that #3 Angle-rotor and #4 Angle-rotor are optional.

MiniL-12G

Product number Rotary number (Rotor) Capacity (ml × tube number) Maximum speed (r/min.) Max Rcf

Test tube type



MiniL-12G-A-1 #1 Angle-rotor 1.5/2.2×12+PCR0.2×8×4 row 12000 9500 PP cone bottom cover
MiniL-12G-A-2 #2 Angle-rotor PCR 0.2×12×4 row 12000 5960 PP cone bottom cover
MiniL-12G-A-3 #3 Angle-rotor 5×4 12000 9660 PP cone bottom cover
MiniL-12G-A-4 #4 Angle-rotor Capillary blood volume tube × 12 12000 8371 Diameter 1.5mm×40
MiniL-12G-A-5 #5 Angle-rotor 5/1.8/1.1×4 7000 3180 PP can be screwed
