LCD Digital Magnetic Hotplate Stirrer
Three heating models for selecting (fast heating, standard heating and stable heating)
MS-H-PROA

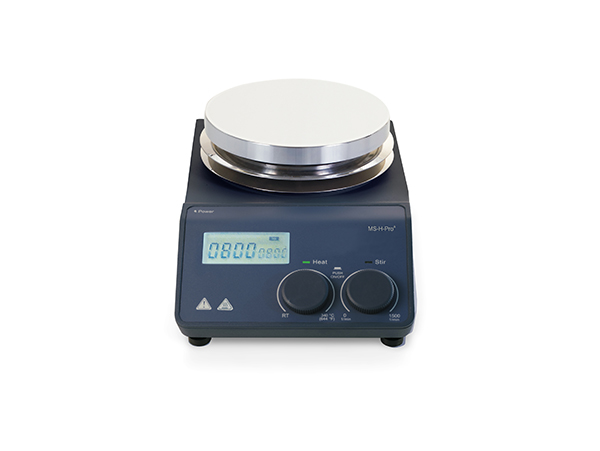

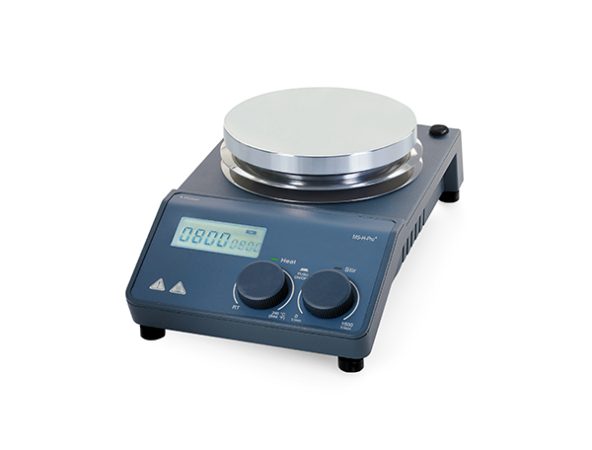

YBOTECH MS-H-PROA Magnetic Hotplate stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
Main Feature
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- Wide range timer function from 1 min to 99h 59min (MS-H-ProT only)
- High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time)

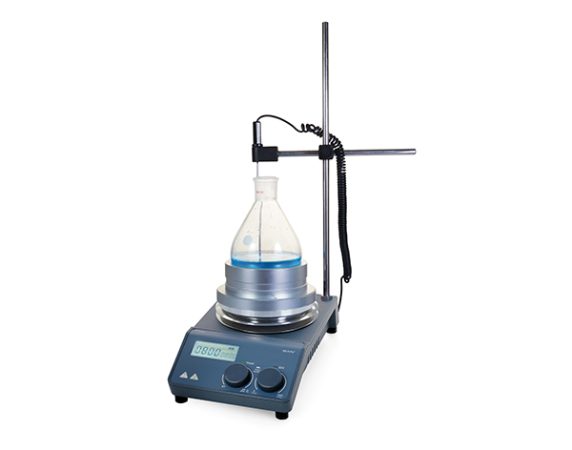

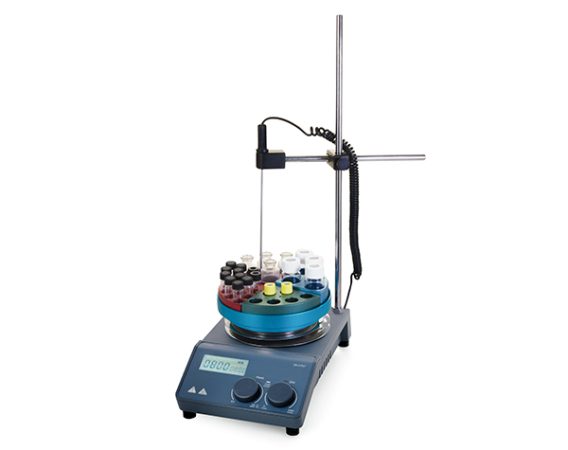

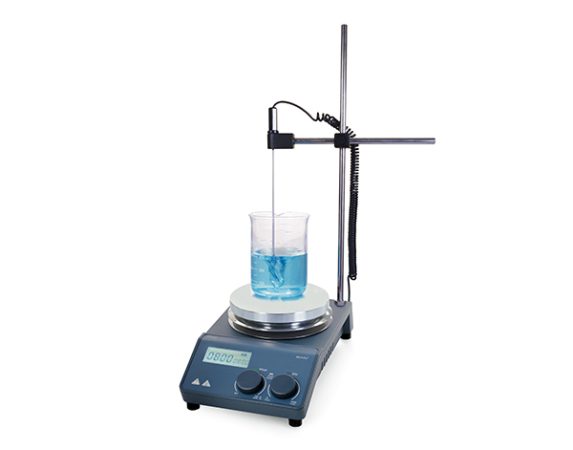

- External temperature control is possible by connecting the temperature sensor (PT 1000) with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistant performance
- Remote function provides PC control and data transmission

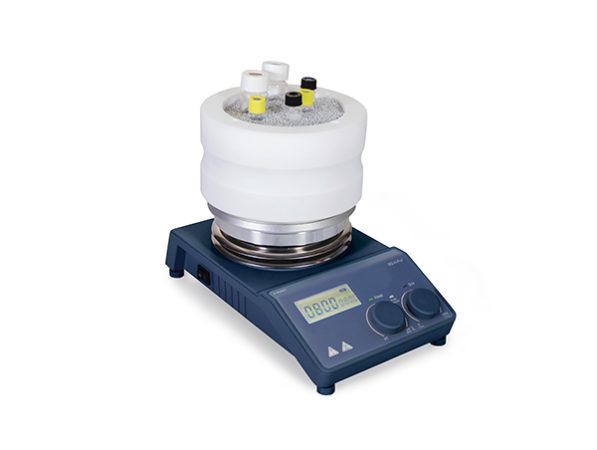

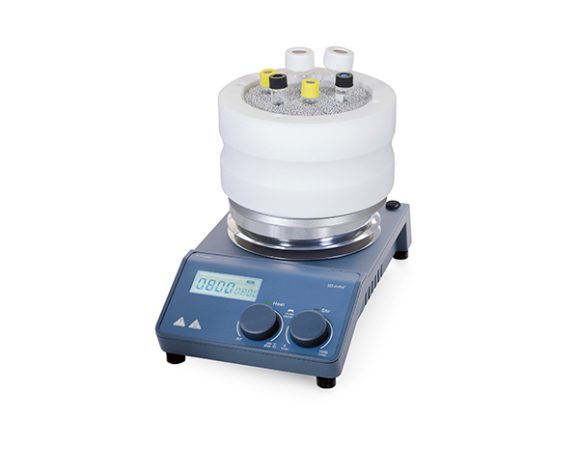

- Wide variety of accessories available to choose
Security
- International safety certification: CE, CTÜVuS, FCC and other product safety cert,certifications issued by TUV Rheinland;
- Safety circuits provide overheating protection;
- “HOT” warning flashes if the work plate temperature is above 50°C;
- Brushless DC motor is maintenance free and exposion-proof;
- Fully enclosed aluminum alloy housing with good heat dissipation performance and reliable protection capability.
Technical Specification
| Specifications | MS-H-ProA | MS-H-PRO+ | MS-H-PROT | MS-H-S |
| Work plate Dimension | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) |
| Work plate material | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating |
stainless steel cover with ceramic coating |
stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | |||
| Motor rating input | 18W | |||
| Motor rating output | 10W | |||
| Power | 650W | 550W | 550W | 530W |
| Heating output | 600W | 500W | 500W | 500W |
| Voltage | 100-120/200-240V 50/60Hz | |||
| Stirring positions | 1 | |||
| Max. stirring quantity (H2O) | 20L | |||
| Max. magnetic bar (length) | 80mm | |||
| Speed range | 100-1500rpm | 0-1500rpm | ||
| Speed display | LCD | Scale | ||
| Temperature display | LCD | Scale | ||
| Heating temperature range | Room temp.- 340°C | |||
| Over heat Protection | 420°C | |||
| Temperature display accuracy | ±0.1°C | – | ||
| External temperature sensor | PT1000 (accuracy ±0.2°C) | – | ||
| Timer function | – | – | 1min to 99h59min | – |
| Protection class | IP21 | |||
| Dimension [W x D x H] | 280x160x100mm | 160x280x100mm | 160x280x100mm | 160x280x100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH | |||
