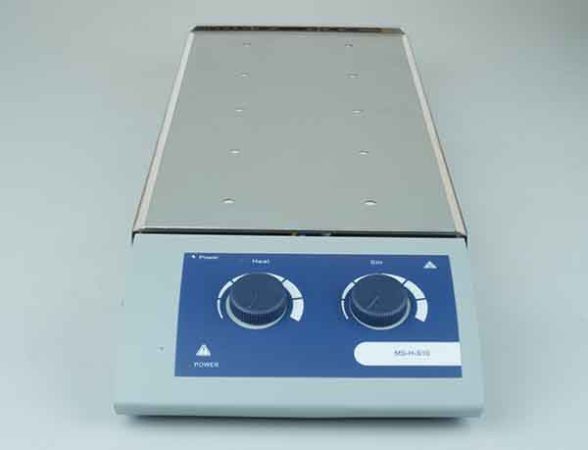

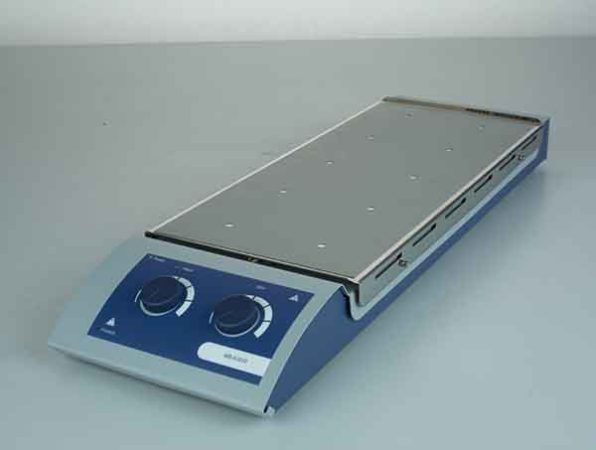

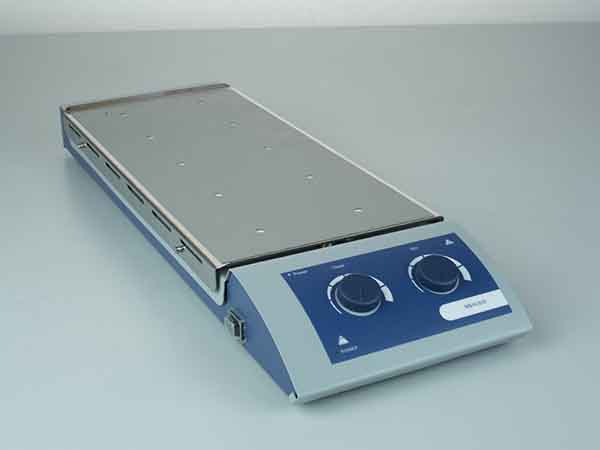

10-Position Magnetic Hotplate Stirrer
MS-H-S10
YBOTECH MS-H-S10 Magnetic Hotplate stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
It is widely used in chemical synthesis, physical and chemical analysis, bio pharmaceuticals etc.
Main Feature
- Maintenance-free brushless DC motor °C
- Maximum speed 1100rpm
- Maximum temperature of work plate up to 120℃
- Stainless steel work plate, Covered with silicone cushion, provide excellent of heating uniformity and skid resistance
Security
- International safety certification: CE, CTÜVuS, FCC and other product safety cert,certifications issued by TUV Rheinland;
- Safety circuits provide overheating protection;
- “HOT” warning flashes if the work plate temperature is above 50°C;
- Brushless DC motor is maintenance free and exposion-proof;
- Fully enclosed aluminum alloy housing with good heat dissipation performance and reliable protection capability.
Technical Specification
| Specifications | MS-H-S10 |
| Work plate Dimension | 180x450mm |
| Work plate material | Stainless steel covered with silicone cushion |
| Motor type | Brushless DC motor |
| Motor rating input | 12W |
| Motor rating output | 4W |
| Power | 490W |
| Heating output | 470W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 10 |
| Max. stirring quantity (H2O) | 0.4L x 10 |
| Max. magnetic bar (length) | 40mm |
| Speed range | 0-1100rpm |
| Speed display | Scale |
| Temperature display | Scale |
| Heating temperature range | Room temp.-120℃ |
| Over heat Protection | 140°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Timer function | – |
| Protection class | IP21 |
| Dimension [W x D x H] | 182×622×65mm |
| Weight | 3.2kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
