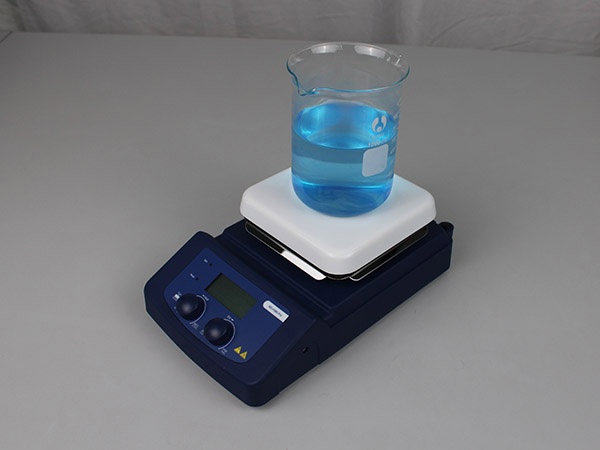

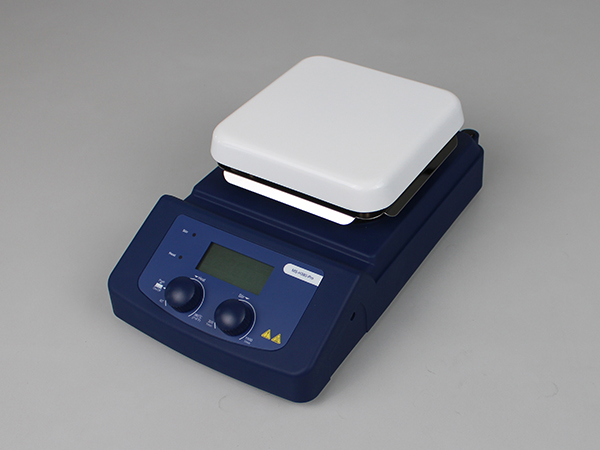

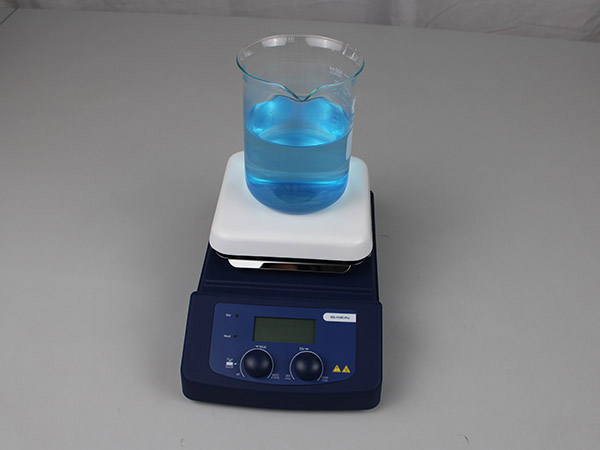

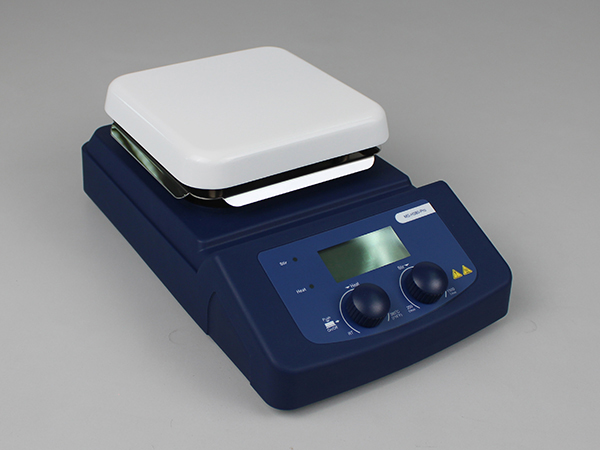

YBOTECH MS-H380-Pro magnetic stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
Main Feature
- Max. heating temperature is 380°C
- High resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance free
- Aluminum cover with ceramic work plate, allows for immediate heat transfer

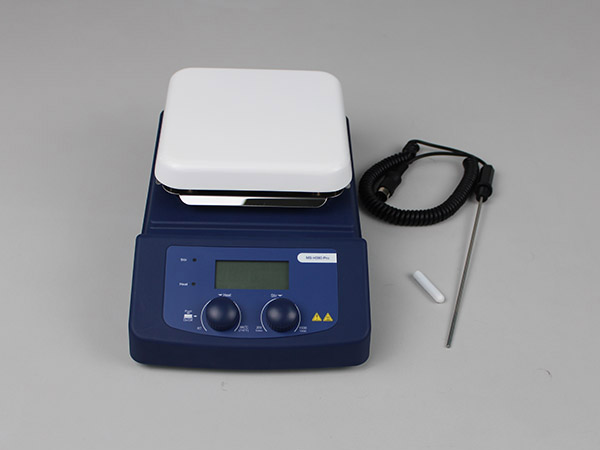

- External temperature control is possible with temperature sensor PT1000
- Digital temperature control with max. temperature at 380°C
- Digital speed control with max. speed up to 1500rpm
- Max. stirring quantity of H2O at 5L
Technical Specification
| Specifications | MS-H380 Pro |
| Work plate Dimension | 140x140mm |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Motor rating input | 2.4W |
| Motor rating output | 1.8W |
| Power | 510W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 5L |
| Max. magnetic bar[length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temp.- 380°C |
| Over heat Protection | 420°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Control accuracy of sensor | ±20rpm |
| Protection class | IP21 |
| Dimension [W x D x H] | 320×180×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
