MS-P Series Magnetic Stirrer

YBOTECH MS-P Series Magnetic Stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.

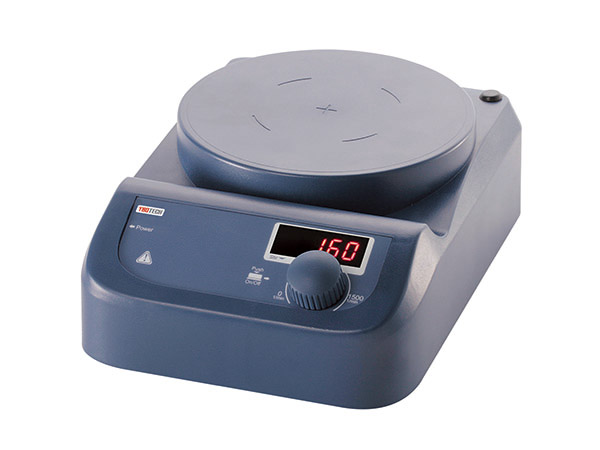

MS-PA

LED Digital Magnetic Stirrer

MS-PB

Magnetic Stirrer

Main Feature
  • Digital speed control within the range of 0-1500rpm
  • Maximum stirring quantity of H2O at 3L
  • LED display shows stirring speed (MS-PA)
Technical Specification
Specification MS-PA MS-PB
Work plate Dimension (W x D) Ø135mm (5 inch) Ø135mm (5 inch)
Work plate material Nylon+GF Nylon+GF
Motor type Brushless DC motor Brushless DC motor
Stirring positions 1 1
Max. stirring quantity (H2O) 3L 3L
Max. magnetic bar[length] 50mm 50mm
Speed range 200-1500rpm resolution±1rpm 0-1500rpm resolution±1rpm
Speed,time, Temperature display Scale Scale
Protection class IP42 IP42
Motor Input Power 5W 5W
Motor Output Power 3W 3W
Power 15W 10W
Voltage Frequency 100-120/200-240V 50/60Hz
Dimension (WxDxH) 150x260x80mm 150x260x80mm
Weight 1.8KG 1.8KG
Permissible ambient temperature and humidity 5-40℃, 80%RH
