YBOTECH MS Series Magnetic Stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
MS6-Pro
LCD Digital Magnetic Stirrer

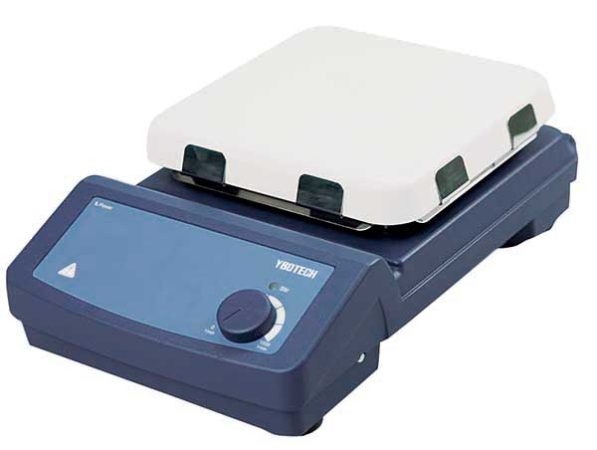

MS7-S
7″ Square Magnetic Stirrer
MS-S
Magnetic Stirrer
Main Feature
- High resolution LCD displays actual stirring speed
- Brushless DC motor is maintenance free
- Aluminum covered ceramic coating,corrosion resistant and easy to clean
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O up to 20L
Technical Specification
Specification | MS7-5 | MS-S | MS6-Pro |
Work plate Dimension [W x D] | 184x184mm (7 inch) | Ø135mm (5 inch) | 140x140mm |
Work plate material | Glass ceramic | Stainless steel cover with ceramic | Aluminum cover with ceramic coating |
Motor type | Shaded pole motor | Brushless DC motor | Brushless DC motor |
Stirring positions | 1 | 1 | 1 |
Max. stirring quantity, [H2O] | 10L | 20L | 5L |
Max. magnetic bar[length] | 80mm | 80mm | 40mm |
Speed range | 100-1500rpm resolution±1rpm | ||
Speed,time, Temperature display | Scale | Scale | LCD |
Protection class | IP21 | IP21 | IP21 |
Motor Input Power | 15W | 8W | 2.4W |
Motor Output Power | 1.5W | 10W | 1.8W |
Power | 30W | 30W | 10W |
Voltage Frequency | 100-120/200-240V 50/60Hz | ||
Dimension [WxDxH] | 215x360x112mm | 160x280x85mm | 320x180x108mm |
Weight | 7.18kg | ||
Permissible ambient temperature and humidity | 5-40℃,80%RH |
