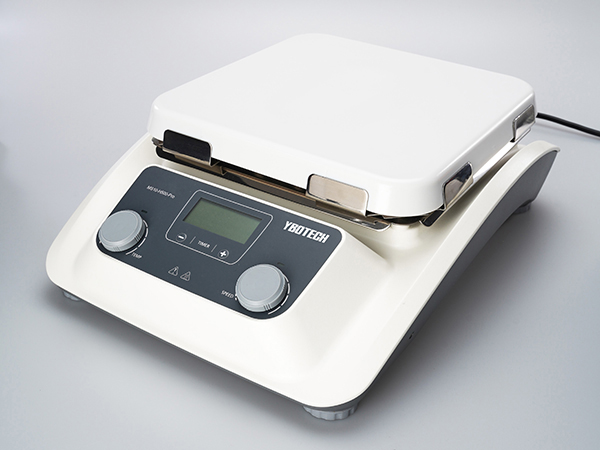

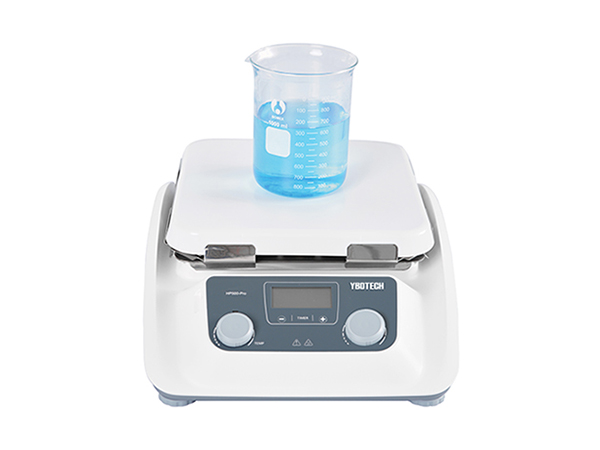

LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
MS10-H500-Pro
YBOTECH MS10-H500-Pro Magnetic Hotplate Stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.
Main Feature
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerfull magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
- LCD display for precise monitoring of speed and temperature. External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
- Digital speed control of 100 ~ 1500rpm
- Max. heating plate temperature 500℃
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Data connector: The SD card records the instrument’s running data in real time.
- Timing function: the running time of the instrument can be set.
Technical Specification
| Specifications | MS10-H500 Pro |
| Work plate Dimension | 254x254mm (10 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1400W |
| Heating output | 1350W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity (H2O) | 30L |
| Max. magnetic bar (length) | 80mm |
| Speed range | 0-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temp.- 500°C |
| Over heat Protection | 540°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| Control accuracy of sensor | ±20rpm |
| Protection class | IP21 |
| Dimension [W x D x H] | 328x424x138mm |
| Weight | 7.2kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
