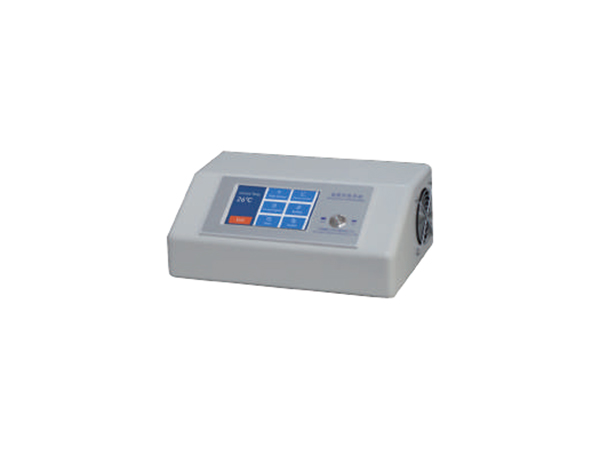

YBOTECH Multi-function Graphite Digester is adopted with the economic high purity graphite heating method and the anti-oxidation processing. Comparing to that of the aluminum block, the price of the graphite digester is more acceptable to most of the laboratories.
Main Feature
- Sample soaking→ Digestion→ Acid removal is completed with one key, easy and fast with large sample throughput.
- The high-density graphite heating module has high temperature, good uniformity and small temperature buffer, and the design temperature is as high as 350℃.
- The shell is made of 316 stainless steel coated with Teflon, corrosion resistant and beautiful.
- The temperature control system uses 5″ color touch screen with Chinese and English language, simple and easy to operate.
- Tabular format input method is used for formula input, fast, logical and error-free.
- 0-40 segment program can be selected and set freely.
- Single point heating and curve heating modes are available.
- Intelligent PID temperature control, highly accurate, reliable and stable.
- Segmented power supply and anti-blackout restart function are used to avoid potential risks.
Technical Specification
Model |
YBX-54S |
YBX-36S | YBX-08S | YBX-10S |
YBX-20S |
Sample Hole |
54 |
36 | 8 | 10 |
20 |
Diameter of Hole |
Φ32*50mm |
||||
Heating Block Material |
Graphite |
||||
Design Temperature |
350℃ |
400℃ |
|||
Temp. Accuracy |
±1℃ |
||||
Heating Rate |
8~15℃/min |
||||
Display |
5.5″ color touch screen, 1-40 segment programmed heating/single point heating |
5.5″ color touch screen |
|||
Formula Management |
9 groups |
||||
Timed Shutdown |
1-999min., set freely |
||||
Power Supply |
AC220V/50HZ |
||||
Heating Power |
4KW |
3KW | 0.75KW | 1KW |
2KW |
