Ybotech Feyond-A300/A400/A500 Multi-Mode Microplate Reader can meet your various detection needs for microplates. We offer a variety of microplate reader solutions including absorbance, fluorescence, luminescence, time-resolved fluorescence, and fluorescence polarization to meet your specific workflow needs. We also offer a range of special, modular, and upgradeable detection accessories to enhance your detection experience.
Feature
Model | Feyond-A300 | Feyond-A400 | Feyond-A500 |
Absorbance Monochromater | Yes | Yes | Yes |
Fluorescence-filter | Yes | Yes | Yes |
Time-resolved fluorescence | Yes | Yes | |
Fluorescence polarization-filter | Yes | ||
Luminescence | Yes | Yes | Yes |
U-Nano Plate | Yes | Yes | Yes |
Injector | optional | optional | optional |
Wavelength selection is done by using an advanced monochromator system. Any wavelength betwen 200 to 1000nm can be selected. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow indentification of the optimal measurement wavelength for a new assay.
- Long life xenon lamp which can be used for 10^9
- Fast reading mode only need time 15s for 96-well whole plate
- Can be used for spectral scanning endpoint and kinetic detection
Feyound series luminescence microplate readers show excellent sensitivity and wide dynamic range in both glow and flash based assays. The PMT enhances the maximum sensitivity of weak luminescence signals, prebents oversaturation of high signals, effectively improves the detection range of luminescence. The optimized light path minimizes signal corsstalk between holes and ensures the accuracy of experimental results. The precise dal-channel injector ensures assay performance even when assaying high-density 384-well plates.
Feyound series luminescence microplate readers show excellent sensitivity and wide dynamic range in both glow and flash based assays. The PMT enhances the maximum sensitivity of weak luminescence signals, prebents oversaturation of high signals, effectively improves the detection range of luminescence. The optimized light path minimizes signal corsstalk between holes and ensures the accuracy of experimental results. The precise dal-channel injector ensures assay performance even when assaying high-density 384-well plates.
Time-resolved fluorescence is base on lanthanide elements as dyes. When excited, the emission time is much longer than that of ordinary fluorescence of excitation light and scattered light.
Time-resolved fluorescence has high sensicivity, strong specificity, good stability, and short operation flow. It is suitable for ultra-micro analysis in biology and medicine, hormone detection, viral hepatitis marker detectin, target cell marker detection, and drug screening.
The optimized optical path design of Feyond-A500 combined with the performance of the fast switching polarizer can effectively reduce the detection deviatin. The 10-inch lower computer touch screen can improve the flexibilityof experimental parameter setting. This function is often used to detect the interaction between small molecules and macromolecules, such as the determinationof drugs and hormones, tyrosine kinase detection, receptor/ligand research, protein/polypeptide interactions, DNA/protein interactions, etc.
Multi-mode microplate reader provides powerful independent instrument control software, Through the 10-inch high-resolution touch screen, you can perform board layout, parameter setting and data analysis operations. The intuitive interface, simple operation, and abundant functions will significantly improve the efficiency of your experiment.
- Uer permission are devided into four levels, with clear permissions
- The users have independent accounts and pass words to ensure the safety and confidentiality of experimental results.
![](https://www.ybotech.com/wp-content/uploads/2022/09/User-Authority-Classification-300a.jpg)
- Intuitive selectioon of function modes, easy parameter setting
- Programs and results are stored independently, making it easy to be found the required applications
![](https://www.ybotech.com/wp-content/uploads/2022/09/Intuitive-Interface-Display-300a.jpg)
- Provide multiple data processing methods including blank subtractioon, standad curve creation, qualitative analysis, quality control, kinetics and spectral analysis.
- Algorithm customization: according to your assays needs, can customize the required algorithm
![](https://www.ybotech.com/wp-content/uploads/2022/09/Powerful-Data-Analysis-and-Process-300a.jpg)
- The software has with a shared library, which can store the program, results and standard curves for sharing them with others.
- The profram and standard curve can be created in real time to a QR code, and the required content can be imported only by scanning the code with the instrument.
![](https://www.ybotech.com/wp-content/uploads/2022/09/Liberalized-User-Communication-300a.jpg)

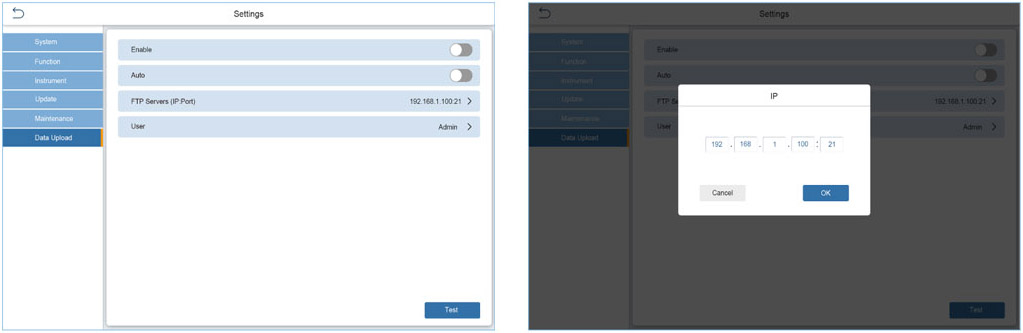

- Upload the data directly to a computer with a FTP server, and users canview the data results at any time in the authorize folder.
![](https://www.ybotech.com/wp-content/uploads/2022/09/FTP-File-Transfer-Protocol-300a.jpg)
Feyond-A300/Feyond-A400/Feyond-A500 Multi-Mode Microplate Reader
Technical Specification
Model | Feyond-A300/Feyond-A400/Feyond-A500 Multi-Mode Microplate Reader |
Absorbance | |
Excitation light source | Xenon lamp |
Detector | PD |
Wavelength accuracy | 2 nm |
Half width (FWHM) | 0.2 nm |
Detection limit | <2.5 nm |
Wavelength range | 200-1000 nm, 1 nm step |
Measuring range | 0-4 OD |
Resolution | 0.0001 OD |
Accuracy@450nm | 96-precision mode: ± (1.0 %+0.003 Abs) @(0.0-2.0 Abs] ±2.0 % @(2.0-3.0 Abs] |
Repeatability@450nm | CV < 1.0 % or SD < 0.003 fast (0.0-3.0Abs] CV < 0.5 % or SD < 0.003 accurate (0.0-3.0Abs] |
Stray light | 0.1 % @220 nm |
Linear@450nm | R²≥0.999@[0.0-3.0Abs] |
Reading time | 96-well plate: fast <15 s |
Luminescence | |
Detector | PMT |
Detection limit | 15 amol/hole; 5 amol/hole (photon PMT) |
Linear dynamic range | 6 logs |
Crosstak | ≤0.005% |
Wavelength range | 200-850 nm |
Fluorescence | |
Reading mode | Top reading |
Excitation light source | Xenon lamp |
Detector | PMT |
Wavelength range | EX:200-1000 nm;EM:270-850 nm |
Filter EX/EM | 3 groups: EX470/EM525, EX523/EM564, EX624/EM692 (other wavelengths can be replaced) |
Detection limit | 1 pM |
Linear dynamic range | 6 logs |
TRF | |
Wavelength range | EX:200-1000 nm;EM:270-850 nm (Feyond-A400/Feyond-A500) |
Detection limit | 0.05 pM (Feyond-A400/Feyond-A500) |
FP | |
Wavelength range | 300-850 nm (Feyond-A500) |
Detection limit | 5mP (Feyond-A500) |
