LCA.B Series Pressure Steam Sterilizer (Class B)

YBOTECH LCA.B series pulse vacuum pressure steam sterilizer/autoclave is designed and manufactured in a state-of-the-art facility in compliance with strict international standards to ensure safe re-use of sterilized equipment.

It is designed for fast, efficient sterilization of heat and moisture stable materials, suitable for lumen instruments, textile, rubber, liquid, implant, prions to be sterilized, widely used in hospital CSSD, OR, medical centers, laboratory, biological engineering as well as pharmaceutical plant.

Main Feature
  • Rectangular-shaped chamber and integral jacket
  • Siemens PLC control system, touch screen displaying
  • Built-in printer with USB port
  • Three pulsation models: Negative, Cross and Positive pressure pulsation
  • Self-diagnostic showing problems and assuring easy maintenance
  • Automatic adjustment system for the drainage temperature
  • Water-saving noise reduction system
  • Optional automatic drainage devices in jacket and chamber
  • Optional supply system detection and alarm system
  • Optional remote monitoring and remote software upgrade system
  • Optional communication interface to connect CSSD quality tracing system
  • Multiple self-protection feature ensuring machine work in safety
Technical Parameters
Chamber design pressure -0.1/0.3MPa Accuracy 0.1Kpa
Generator design pressure 1.0 MPa Sterilization temperature control accuracy ±1℃
Design tempreture 150℃ Temperature uniformity ±1℃
Maximum operating temperature 139℃ Negative pressure pulsating vacuum -80~0KPa
Maximum operating pressure 0.25MPa Across the pressure pulsation -80~0KPa
Chamber relief valve 0.28MPa Positive pressure pulse 0~9 times
Jacket relief valve 0.28 MPa Maximum vacuum -96 KPa
Technical Specification
Model Chamber volume Chamber dimension (WxHxD)mm Overall dimension (WxWxH)mm Net weight Steam consumpution Kg/Cycle Water consumption Kg/Cycle Power supply
LCA.B120L 120L 450×450×650 950×970×1850 500kg 10 60 10KW,AC 380V/220V, three phase
LCA.B150L 150L 450×450×750 1050×1350×1700 520kg 12 80 10KW,AC 380V/220V, three phase
LCA.B180L 180L 450×450×900 1250×1190×1700 590kg 12 90 12KW,AC 380V/220V, three phase
LCA.B250L 250L 550×550×845 1200×1290×1850 750kg 16 120 15KW,AC 380V/220V, three phase
LCA.B300L 300L 550×550×1000 1350×1290×1850 800kg 18 140 24KW,AC 380V/220V, three phase
LCA.B450L 450L 652×690×1000 1350×1400×1950 850kg 22 180 30KW,AC 380V/220V, three phase
LCA.B600L 600L 652×690×1350 1710×1400×1950 1200kg 35 320 36KW,AC 380V/220V, three phase
LCA.B800L 800L 652×690×1800 2150×1400×1950 1350kg 47 400 48KW,AC 380V/220V, three phase
LCA.B1200L 1200L 680×1180×1500 2000×2110×2110 2300kg 65 600 10KW,AC 380V/220V, three phase
LCA.B1500L 1500L 680×1180×1800 2360×2110×2110 2450kg 80 750 12KW,AC 380V/220V, three phase
LCA.B2000L 2000L 900×1390×1620 1950×2750×2200 3000kg 100 900 15KW,AC 380V/220V, three phase
LCA.B2500L 2500L 900×1390×2020 2300×2750×2200 3600kg 120 1100 24KW,AC 380V/220V, three phase
LCA.B3000L 3000L 900×1390×2400 2700×2750×2200 3800kg 150 1300 30KW,AC 380V/220V, three phase

Note:Vertical sliding model for chamber volume ≤800L,horizontal sliding model for chamber volume>800L

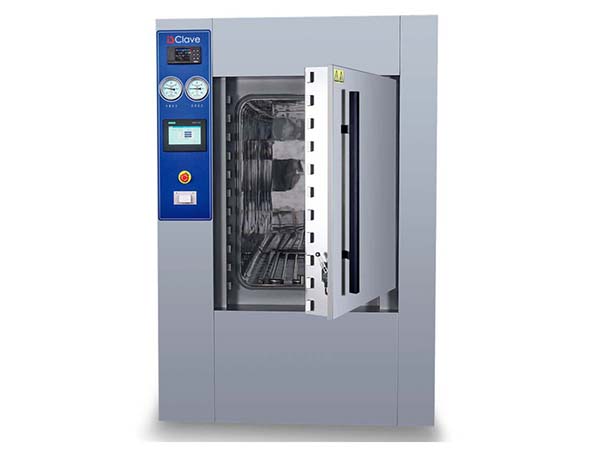

Product Show
