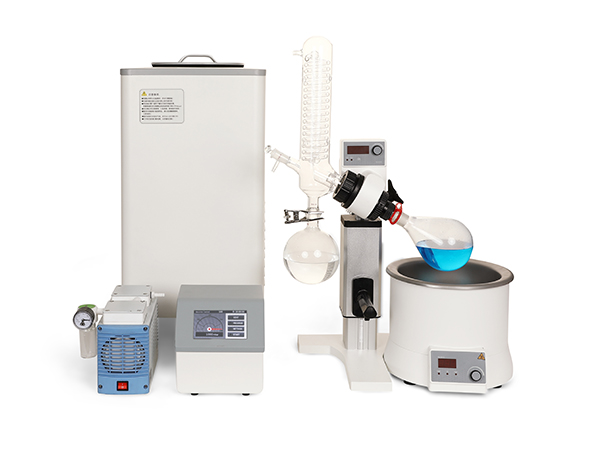

YBOTECH RE100-S Rotary evaporator is used for standard distillation, crystallization, product concentration, powder drying, and separation of one or several solvents. Rotary evaporators are now being used in more and more laboratory kitchens as well. There is a wide variety of accessories available for the rotary evaporator including vacuum pumps, vacuum controllers, temperature sensors, and glassware. For pilot plants and industrial use, most scientists require Large-Scale 20 liter Rotary Evaporators. The relationship between the pressure and vapor temperature of a selection of solvents should be considered when distilling. The temperature difference between the vapor temperature and cooling medium should be at 20C to result in sufficient condensation. The temperature difference between the heating bath and vapor temperature should be at 20C to reach a sufficient distillation rate.
Main Feature

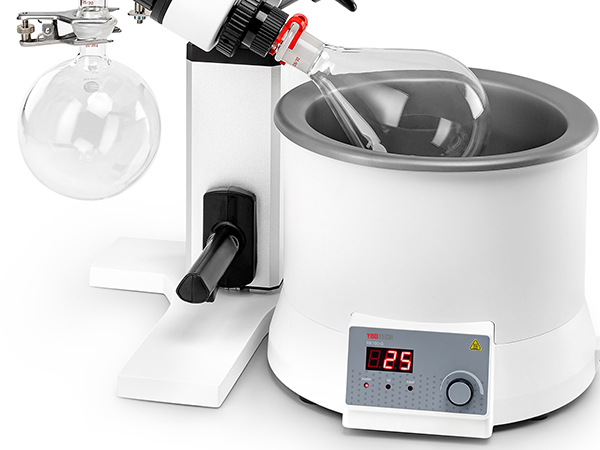

- 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
- Water/oil heating mode can be changed only through a switch.
- Manual lift combined with auxiliary lift for precise positioning of the glassware.
- PID control ensures high temperature accuracy at ±1C (water).
- Overheating protection temperature at 220°C
- Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
- Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.

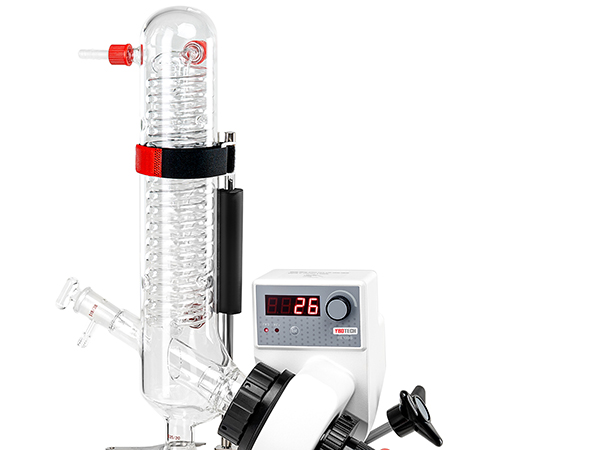

- Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.

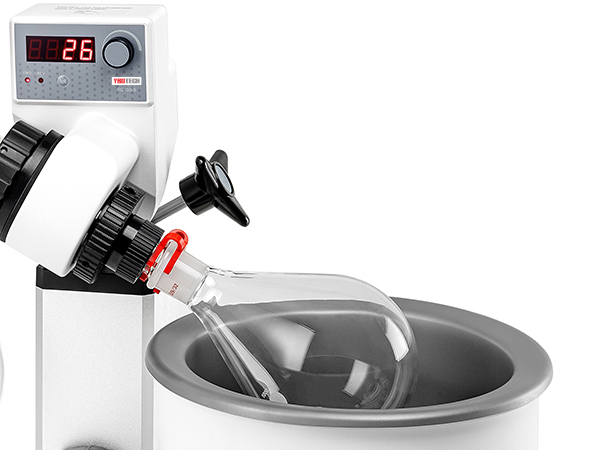

- Ejection mechanism ensures easy exchange of evaporating flask
- Adjustable immersion angle
- Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
- Remote function provides PC control and data transmission.
- Compatible with the entire range of RE100-Pro glassware.
Technical Specification
| Specifications | RE100-S |
| Motor Type | Brushless DC motor |
| Speed Range | 20-200rpm |
| Display | LED (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1010 W |
| Stroke Displacement | Manual 110mm + auxiliary100mm |
| Interval Time Setting Range | 1~999s |
| Dimension [D×W×H] |
Main Unit: 440×320×450mm
Heating Bath: 300x300x240mm
|
| Weight | Main Unit: 7kg Heating Bath: 3kg |
| Permissible Ambient Temperature | 5~40 ℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100~120/200~240V 50/60 Hz |
| Power | 1100 W |
