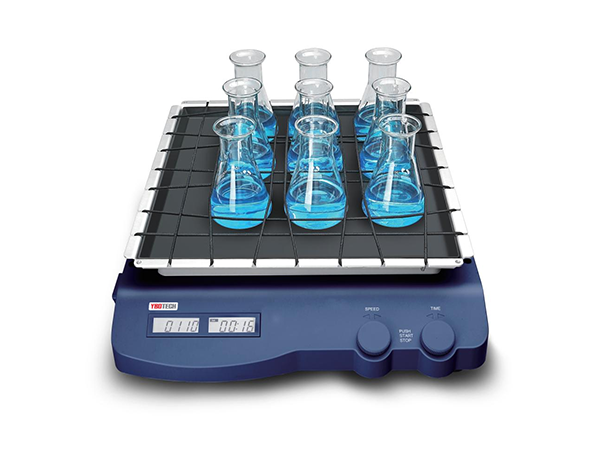

Fixed Plate LCD Digital Orbital Shaker
SK-O330-M
YBOTECH SK-O330-M is a piece of laboratory equipment used to mix, blend, or agitate substances in a tube or flask by shaking them. It is mainly used in the fields of chemistry and biology. A shaker contains an oscillating board that is used to place the flasks, beakers, or test tubes. Although the magnetic stirrer has lately come to replace the shaker, it is still the preferred choice of equipment when dealing with large volume substances or when simultaneous agitation is required.
Main Feature
- Double-screen display for time and speed respectively
- Compact footprint
- Provides smooth and uniform shaking
- Two options：
9.8kg（O330-M）and speed range 70-400rpm,
3.1kg（O180-S）and speed range 40-200rpm - Continuous or timer operation mode
- Maintenance- free brushless DC motor
- Over speed detection and protection
Application
Orbital Shaker is ideal for applications like bacterial suspension, solubility studies, growth of bacteria and yeast, extraction procedures, washing procedures, diagnostics tests, hybridization, general mixing, staining & destaining, mixing, and extracting.
It is suitable for almost any vessel from micro-centrifuge tubes through petri dishes and microplates to conical flasks.
Technical Specification
| Specifications | SK-O330-M |
| Orbital diameter | 10mm |
| Max. load capacity (with platform) | 3kg |
| Motor type | Brushless DC motor |
| Motor input power | 20W |
| Motor output power | 15W |
| Power | 25W |
| Time settings range | 1min-19h59min |
| Speed range | 70-400rpm |
| Speed display | LCD |
| Timer display | LCD |
| Voltage | 100-240V,50/60Hz |
| Protection class | IP21 |
| Dimension [W x D x H] | 420×370×100mm |
| Weight | 9.8kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
| Data connector | RS232 |
