- Resistivity(25°C):10-16MΩ.cm
- Salt rejection 95-99% (with new RO membrane)
- Conductance:<0.1us/cm
- TDS (RO Water): <10ppm
- 2 water outlets: RO water, deionized water
SML Deionized Water System

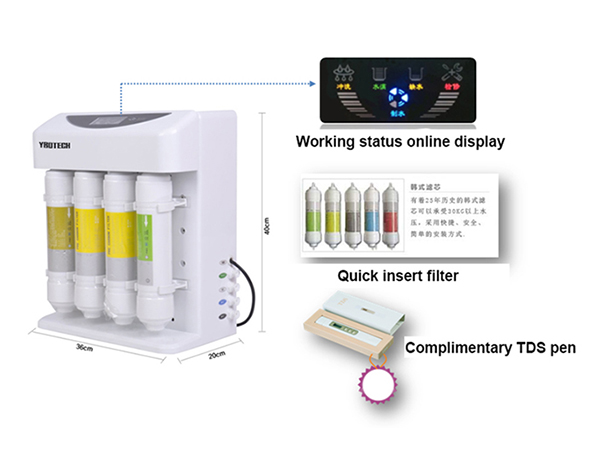

Feature
- Korean appearance, exquisite and slim, small size, can be inside lab cabinet.Quick-insert filters make replacement easy and convenient.
- Design of exposed filter cartridges make consumables replaced easily.
- Microcomputer automatically control, backlight LED large LCD screen.
- Visualized operating status, real-time display flushing, water making, water full& lack and maintenance status, with sound and light alarm function,
- Transparent window, simple&graceful, detachable panel, convenient maintenance.
- Newest environmentally friendly materials. With a portable test pen.
Application
Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt.
Process
Filter function
- First stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.
- Second stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.
- Third stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.
- The fourth stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.
- The fifth stage: Deionization purification column × 2, remove most of the heavy metals and trace elements in the water, and the water quality meets the national laboratory water first-grade water standard.
Specification
Model | SML-DI-10 | SML-DI-15 | SML-DI–20 | SML-DI-30 |
Output | 10L/H | 15L/H | 20L/H | 30L/H |
Production speed | 1.5-2 L/min (with pressure barrel) | |||
Water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO Water Parameter | ||||
Ion rejection rate | 97%-99% (when using a new RO membrane) | |||
Organic matter rejection rate | >99% when MW>200 Dalton | |||
Particle and bacterial rejection | > 99% | |||
Application | Clean glassware | |||
DI Water Parameter (ASTM TYPE II Grade Water) | ||||
Resistivity (25℃) | 10~16 M Ω. Cm @ 25 ℃ | |||
Heavy metal ion | < 0.1 μS/cm | |||
Application | Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber. | |||
Electrical requirements | 100-240V, 50/60Hz, 48-72W | |||
The system configuration | Host machine (including 1 set of purification column) +TDS pen + accessory bag |
Consumables
No | Filter element | Replace Cycle | Remark |
2 | 11″ PP cotton filter | About 3-6 month | |
3 | 11″ activated carbon filter | About 3-6 month | |
4 | 75 GPD RO membrane | About 1-2 years | |
5 | 100 GPD RO membrane | About 1-2 years | |
6 | 11″ Deionization purification column | About 1000 liter |
