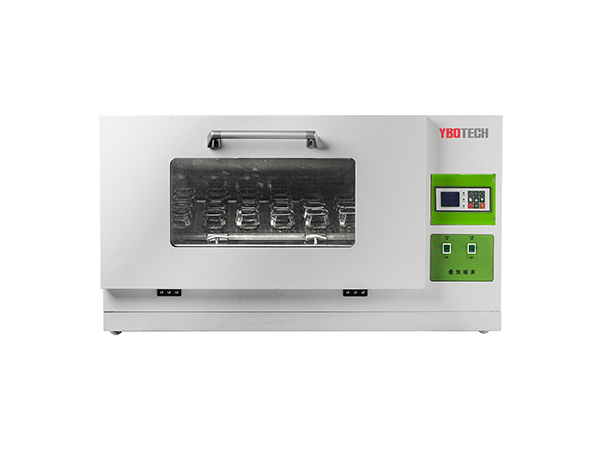

Stackable Shaking Incubator

Ybotech Stackable Shaking Incubator is a special constant temperature culture device for the cultivation and breeding of molds and microorganisms. It is especially suitable for scientific research and production in the fields of bioengineering, chemical engineering, medical research, agriculture and forestry sciences, aquatic products, animal husbandry, and environmental protection.

Feature
  • Three-layer stacked combination, with the smallest footprint to provide users with the maximum use of space.
  • PID microcomputer intelligent temperature control instrument, accurate temperature control.
  • Over-temperature alarm function and automatic power-off function in abnormal situation.
  • With power failure recovery function, to avoid data loss caused by power failure and crash.
  • Polished stainless-steel chamber, powder coating steel housing.
  • With observation window, convenient at any time without opening the door in all angles to observe the internal situation of the box.
  • Each layer is independently controlled, each layer can run at the same time at different temperatures and speeds, or according to the need to run a layer, two or three layers.
  • User-friendly design, the lower two layers for the lower flip-type door, the third layer for the upper flip-type door; the tray can be freely withdrawn, convenient for loading and unloading shaking bottles.
  • Selected imported high-quality compressor, non-fluorine environmental protection refrigerant, low noise, good refrigeration effect, to ensure that the equipment at low temperatures for a long time under stable operation.
  • Large screen LCD display, menu operation interface, simple and easy to understand, easy to operate.
  • Auto-stop operation when door opened.
  • UV sterilization
  • Password protection of operating.

Options:

  • Touch screen.

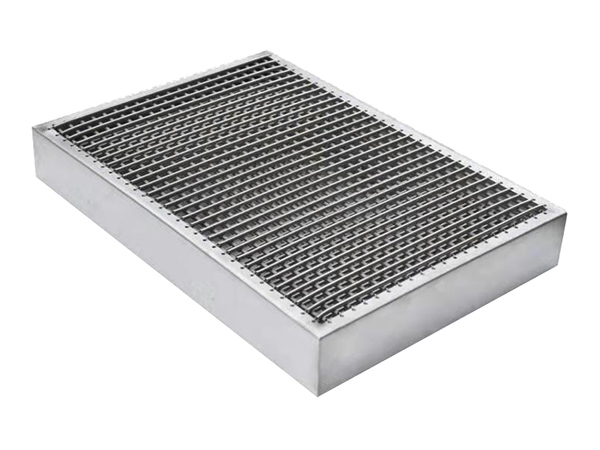

  • Universal spring rack.

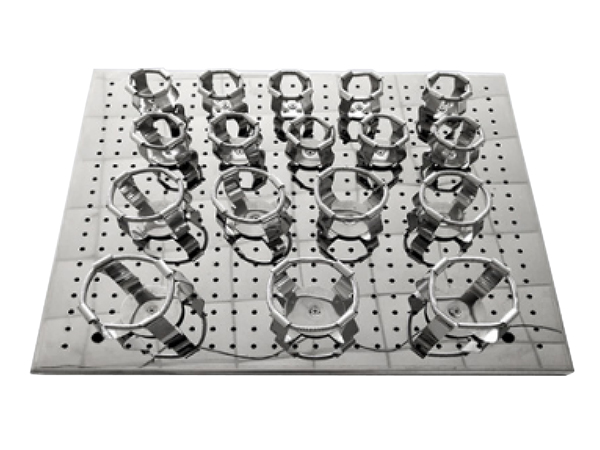

  • Flask rack.
Product Specification

Model

YYZ-D2401 YYZ-D2402

YYZ-D2403

Volume

245L

245L×2

245L×3

Shaking Speed (rpm)

60~280

Speed Accuracy (rpm)

±1

Swing Amplitude (mm)

Φ28

Temp. Range

RT4°C~60°C

Temp. Accuracy

±0.1°C

Temp. Uniformity

±1°C

Flask Rack (Standard)

500ml×24

500ml×24×2

500ml×24×3

Max. Capacity

250ml×36

1000ml×15

2000ml×8

250ml×36×2

1000ml×15×2

2000ml×8×2

250ml×36×3

1000ml×15×3

2000ml×8×3

Tray Size

770×450mm

770×450mm×2

770×450mm×3

Power (W)

2700

Timing range

1-9999min

Digital display mode

LCD

Power Supply

AC220V~240V±10%  50~60HZ

Overall dimensions (mm)

1320×840×650

1320×840×1300

1320×840×2046
