ETC821D Thermal Cycler Plus

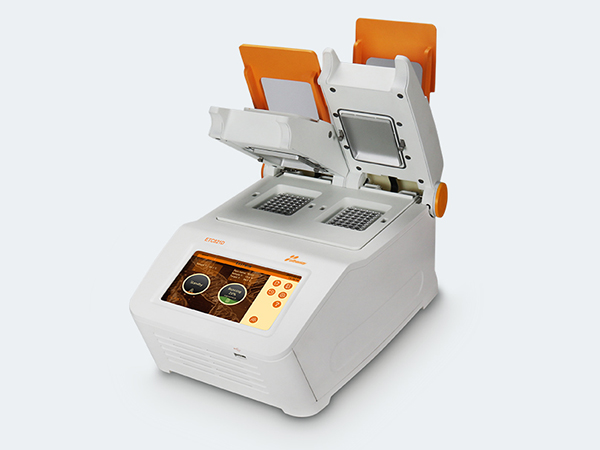

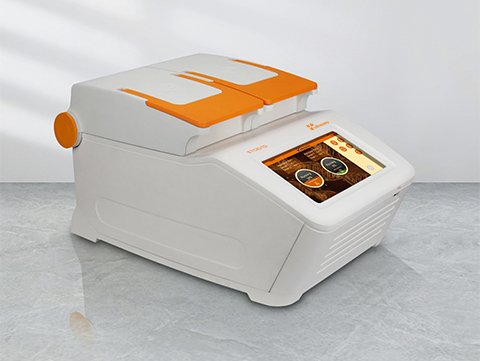

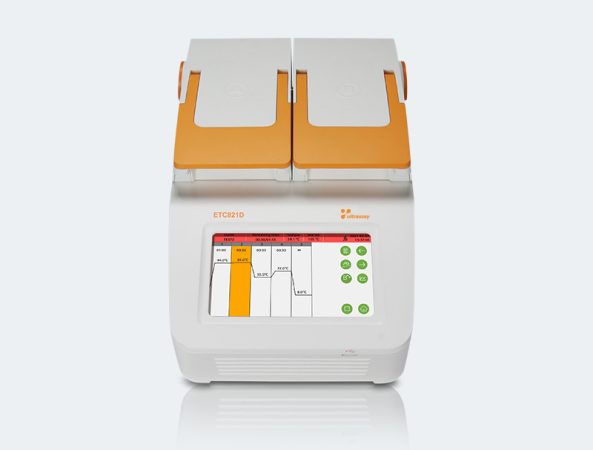

Ultrassay ETC821D Thermal Cycler Plus is a Double-block model meticulously built on the basis of the classic ETC821 model. The instrument adopts a Double-block module design and can run two different PCR programs independently. It is especially suitable for small throughput such as teaching and scientific research PCR experiment.

PCR, Polymerase Chain Reaction, is a method for enzymatic synthesis of specific DNA fragments in vitro. It consists of high temperature denaturation, low temperature annealing (renaturation) and suitable temperature extension. The cycle is carried out, and the target DNA can be rapidly amplified. It has the characteristics of high specificity, high sensitivity, simple operation and time saving. Thermal cycler is the device for rapid amplification of genes. Based on Peltier technology, it realizes the rapid, accurate and automatic circulation of reagent temperature, thus realizing the full automation of the PCR process. It can be used not only in basic research such as gene isolation, cloning and nucleic acid sequencing, but also in clinical diagnosis of diseases.

gradeOne machine with multiple uses

Double-block module design can run different programs independently

Two 48-well*0.2ml modules can be set up separately to run programs, independently and in parallel, flexible to meet the various needs of users for PCR experiments.

gradeThe experiment is more secure

Ultra-long life Peltier

  • Using Marlow series Peltier , higher quality and longer life.
  • The early warning function of the working status of the Peltier, which automatically evaluates the health status of Peltier, and provides maintenance recommendations, so that you will be confident in the smooth completion of the experiment and will know the reliable use of the instrument.
gradeIntelligent operation experience

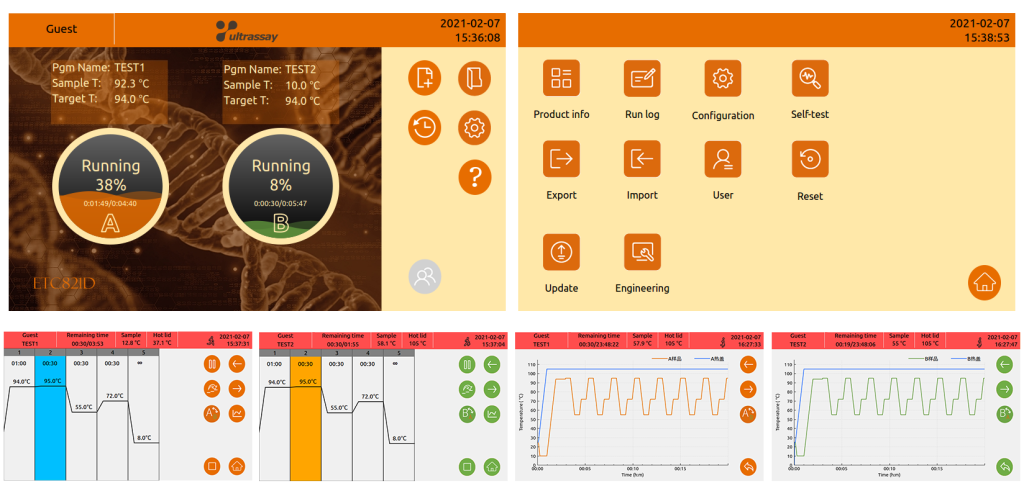

Minimal software interface, powerful system functions

  • Windows style operation interface, easy to use for software operation.
  • One-click data import and export, U disk upgrade, efficient and convenient conversion between stations.
  • Personal file management system, separate protection of program data.
  • A variety of interfaces can be switched at needs for browsing, observation, maintenance to research.
gradeInherited classic features

Professional temperature control, excellent performance

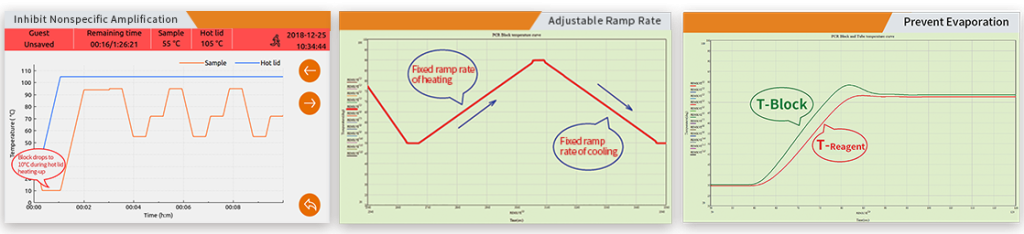

  • Intelligent suppression of non-specific amplification
  • Perfect constant rate temperature change
  • Intelligent suppression of reagent evaporation in small volumes
Basic Parameters of ETC821 Thermal Cycler Pro
Model ETC821D
2 Block 2*0.2ml*48 wells, Aluminum
3 Applicable Consumables 2*48 wells, Single pipe, 8 pipes, no skirt board, half skirt borad
4 Input Power 100-240V~50/60Hz, 600VA
5 Dimension (L*W*H) Product size: 427*288*227 mm      Carton size: 540*450*385mm
6 Weight 9.5kg
Block Performance Parameter of ETC821D Thermal Cycler Plus
7 Temperature control accuracy ≦ ±0.1°C
8 Block temperature precision ≦ ±0.1°C
9 Block temperature uniformity ≦ ±0.3°C @ 55°C
10 Max. ramp rate ≥ 5°C/s
11 Avg. ramp rate ≥ 2°C/s
12 Temperature Control Technology 3 Peltier independently control. Distributed auxiliary heating on block edge.
Features of ETC821D Thermal Cycler Plus
13 Block control mode Block/Tube (Reagent volume setting)
14 Block temperature range 0-105°C
15 Hot lid temperature range 30-105°C, ON/OFF
16 Time setting range 1s-9h0m0s, means forever
17 Auto hot lid Yes, Auto setting temperature of the hot lid according tothe PCR parameter.
18 Real-time curve Yes, Displays dynamic temprature curve ofblock and hot lid.
19 Gradient range/span 12 columns of gradient/30-99/1-42, jut set the leftmost and righmost column temperaatures, others are auto computed
20 Temperature touch down Yes,  ±0.1 – ±10°C/Cycle
21 Time touch down Yes,  ±1 – ±120s/Cycle
22 Waiting for operating Yes, auto pause and hold temperature waiting for user operation according to program.
23 Cycles setting range 1-150X, Non cross dual nest loops available.
24 Adjustable ramp rate Yes, 0.1-3.5°C/s
25 Step setting range 1-100
26 Memory capacity Max 1000 folders, each folder includes max 1000 files.
27 Wizard Template Yes, The wizard template guides editing and prompt errors.
Files management of ETC821D Thermal Cycler Plus
28 Administrator Create user account, set password, software upgrade, system reset.
29 Guest No password
30 User Create accounts as needed, Data will be protected independently.
31 Read-poly protection Yes. File name stuffix # makes files read-only.
32 Run log Yes, Including programs, running times and operations.
33 Run history Yes
34 Editing during runtime Yes. Other applications can be edited during run.
35 File template Provide programmable templates.
36 USB interface Yes, Files can be imported / exported with one click, Easy exchange files between PCR machines, Software upgrade.
More features of ETC821D Thermal Cycler Plus
37 Display 7 ‘’WVGA 64000, LED backlight, high sensitive touch screen.
38 User friendly interface Yes, Dynamic temperature and color background, animation running status, breathing light indication, buzzing prompt.
39 Screen lock Fr large users, in order to prevent the machine from being mis-operated by others in the experiment, the operator can lock the screen so that the click on the screen will not respond until it is unlocked with a password.
40 Easy interfaces switch Simple main interface, operating interface, dynamic curve, engineering interface.
41 Inhibit Non-specific amplification Yes, Before running the cycle program, the block is cooled to 10°C until the hot lid temperature get set value during hot lid warming up.
42 Tube mode Yes, Precise control according to reagents volume.
43 Adaptive lid Auto adapts to various heights of tubes (high tube, low tube, flat top tube and dome tube)
44 Smart gradient Yes, Dynamic power control ensures that the temperature of each column reaches the target synchronously.
45 Self-test when power on Yes
46 Auto report after running Yes
47 Self-diagnosis and report Yes
48 Soaking after running Yes
49 Memory function of power-down Yes
50 Total time / Remain time prediction Yes
51 Peltier life warning Yes, Automatically assess Peltier’s health status and give maintenance suggestions.
52 Screen calibration Yes
53 Block temperature calibration Yes, Engineering mode only.
54 Key tone On/off
55 Screen brightness adjustment Yes
56 System Includes system configuration, self-test, factory setting, software upgrade, engineering interface (Engineering mode only)
57 Help Product features, software features, quick guides, error codes, contact information.
58 Interface language Chinese / English switch freely.
