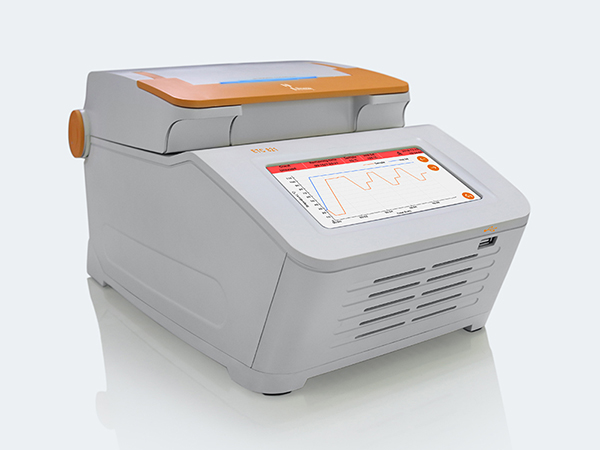

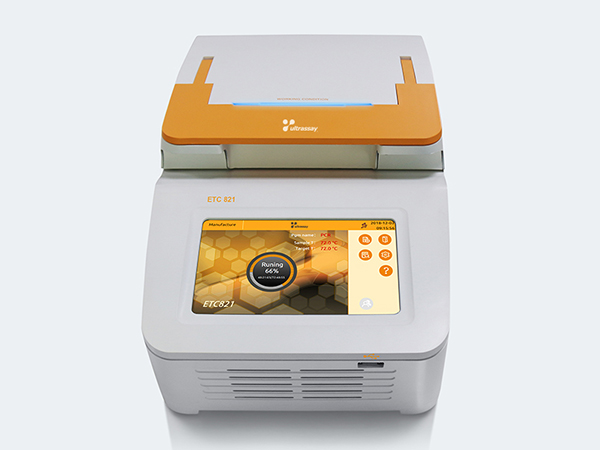

ETC821 Thermal Cycler Pro

Ultrassay ETC821 Thermal Cycler Pro is a beautiful and smart thermal cycler, While inheriting the classical features, more intelligent, humanized and practical technological elements are added to provide a very smooth sense of operation.

PCR, Polymerase Chain Reaction, is a method for enzymatic synthesis of specific DNA fragments in vitro. It consists of high temperature denaturation, low temperature annealing (renaturation) and suitable temperature extension. The cycle is carried out, and the target DNA can be rapidly amplified. It has the characteristics of high specificity, high sensitivity, simple operation and time saving. Thermal cycler is the device for rapid amplification of genes. Based on Peltier technology, it realizes the rapid, accurate and automatic circulation of reagent temperature, thus realizing the full automation of the PCR process. It can be used not only in basic research such as gene isolation, cloning and nucleic acid sequencing, but also in clinical diagnosis of diseases.

Inquire
Brochure Download
gradePersonal Documents Management System

●Personal password    ●Personal interface   ●Personal template   ●Personal file   ●Personal log

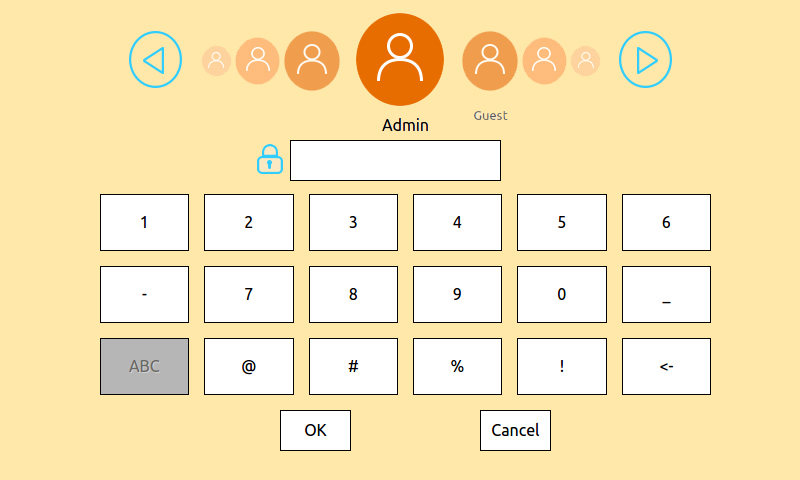

Users can create personal accounts and set personal passwords to protect data individually. Only you or your authorized person can use the program to prevent others from modifying or mistakenly removing programs.

gradeSwitchable multi-interface

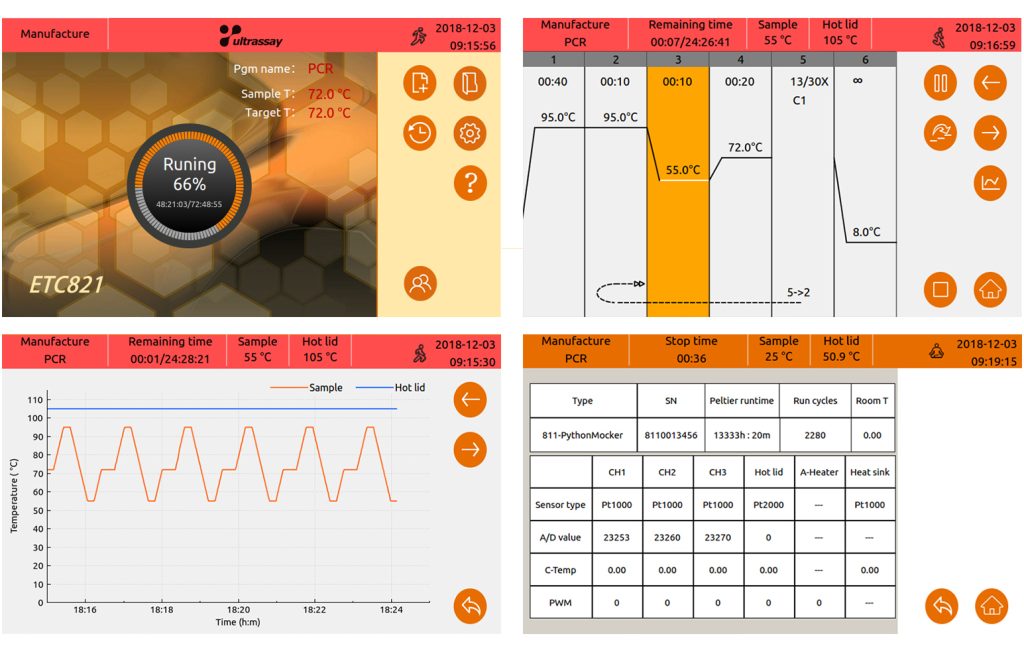

● Concise main interface    ● Dynamic step    ● Dynamic curve   ● Engineering interface
Switch interface to meet various needs such as browsing, observation, maintenance, and research.

gradeSmart sense of operation

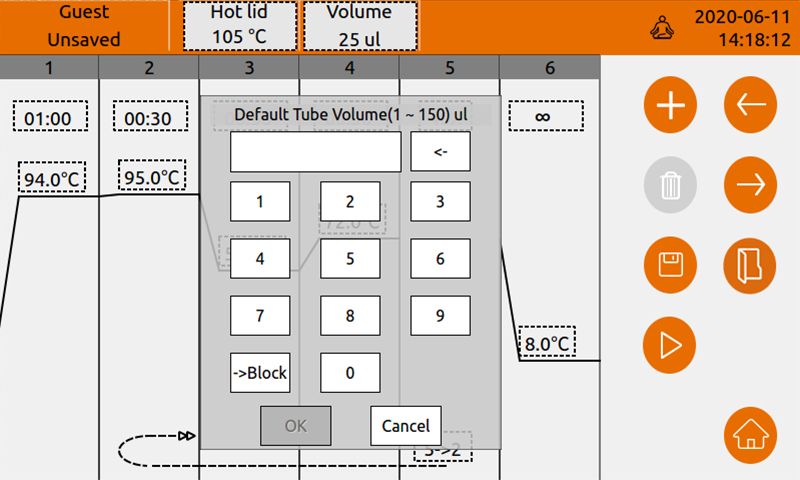

● Windows style interface    ● Programming on template    ● Guided setup    ● Dynamic color    ● Animation runner    ● Auto hot-lid ●Used file list

gradeMaintenance reminder

The PC series of long life thermal module will bring more than 30% life extension to the machine than the previous generation.

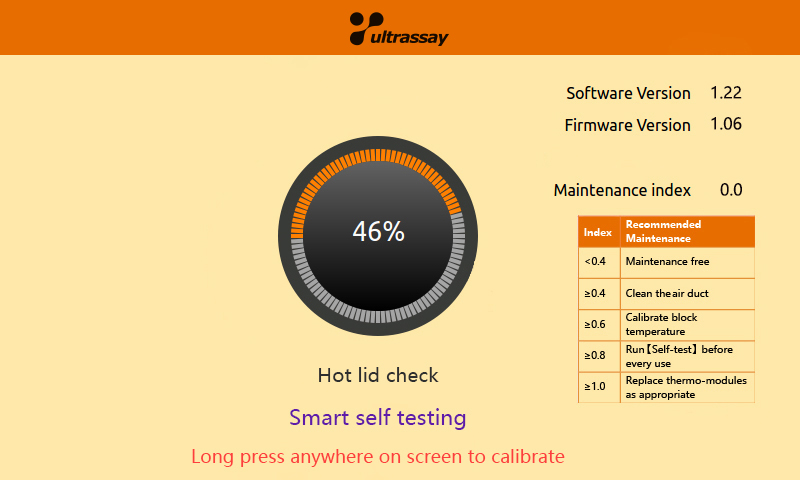

Maintenance reminder function automatically evaluates Peltier’s operation status and maintenance index according to the frequency of use of the instrument, and gives maintenance suggestions, so that you can grasp the reliability of the instrument, which is conducive to the successful completion of the experiment.

gradeSelected components, quality first without compromise.

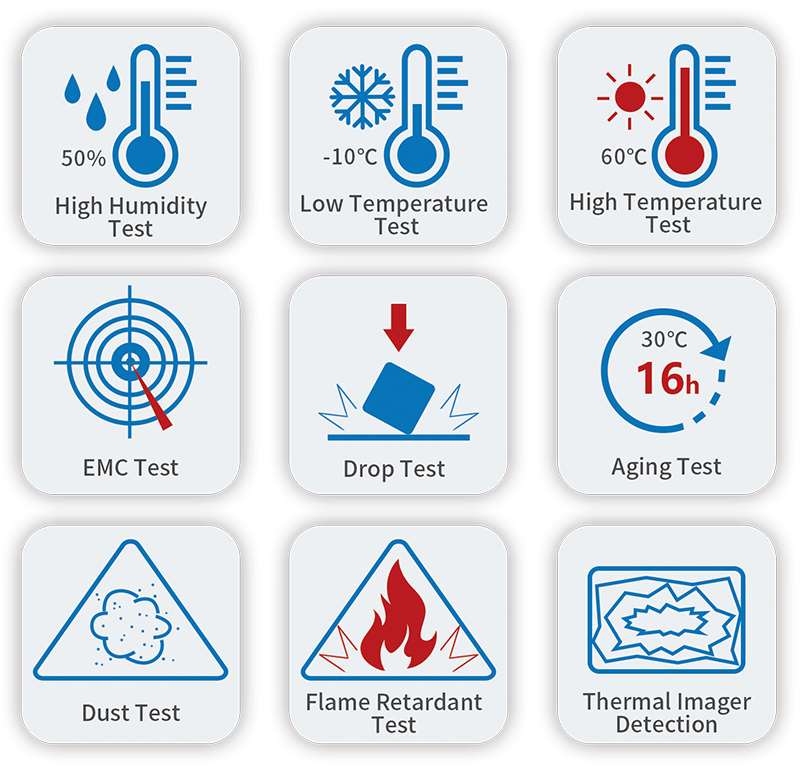

gradeStrict Quality Control
Basic Parameters of ETC821 Thermal Cycler Pro
1 Model ETC821 ETC821-384 ETC821-***
2 Block 0.2ml*96 Aluminum 384 Aluminum In-situ or flat
3 Applicable Consumables 96 Microplate (non-skirt/semi-skirt, except full skirt)Single/8-strip/12-strip tubes (tall/short/flat/dome tubes) 384 Microplate Customizable
4 Input Power 100-240V～50/60Hz, 600VA
5 Dimension (L*W*H) Product size: 427*288*227 mm      Carton size: 540*450*385mm
6 Weight Net Weight: 9.6kg        Gross weight: 14.5kg
Block Performance Parameter of ETC821 Thermal Cycler Pro
7 Temperature control accuracy ≦ ±0.1°C
8 Block temperature precision ≦ ±0.1°C
9 Block temperature uniformity ≦ ±0.3°C @ 55°C
10 Max. ramp rate ≥ 5°C/s
11 Avg. ramp rate ≥ 2°C/s
12 Temperature Control Technology 3 Peltier independently control. Distributed auxiliary heating on block edge.
Features of ETC821
13 Block control mode Block/Tube (Reagent volume setting)
14 Block temperature range 0-105°C
15 Hot lid temperature range 30-105°C, ON/OFF
16 Time setting range 1s-9h0m0s, means forever
17 Auto hot lid Yes, Auto setting temperature of the hot lid according tothe PCR parameter.
18 Real-time curve Yes, Displays dynamic temprature curve ofblock and hot lid.
19 Gradient range/span 12 columns of gradient/30-99/1-42, jut set the leftmost and righmost column temperaatures, others are auto computed
20 Temperature touch down Yes,  ±0.1 – ±10°C/Cycle
21 Time touch down Yes,  ±1 – ±120s/Cycle
22 Waiting for operating Yes, auto pause and hold temperature waiting for user operation according to program.
23 Cycles setting range 1-150X, Non cross dual nest loops available.
24 Adjustable ramp rate Yes, 0.1-3.5°C/s
25 Step setting range 1-100
26 Memory capacity Max 1000 folders, each folder includes max 1000 files.
27 Wizard Template Yes, The wizard template guides editing and prompt errors.
Files management of ETC821 Thermal Cycler Pro
28 Administrator Creat user account, set passwordd, software upgrade, system reset.
29 Guest No password
30 User Create accounts as needed, Data will be protected independently.
31 Read-pnly protection Yes. File name stuffix # makes files read-only.
32 Run log Yes, Including programs, running times and operations.
33 Run history Yes
34 Editing during runtime Yes. Other applicatioons can be edited during run.
35 File template Provide programmable templates.
36 USB interface Yes, Files can be imported / exported with one click, Easy exchange files between PCR machines, Software upgrade.
More features of ETC821 Thermal Cycler Pro
37 Display 7 ‘’WVGA 64000, LED backligh, high sensitive touch screen.
38 User friendly interface Yes, Dynamic temperature and color background, animation running status, breathing lighindication, buzzing prompt.
39 Screen lock Fr large users, in order to prevent the machine from being misoperated by others in the experiment, the operator can lock the screen so that the click on the screen will not respond until it is unlocked with a password.
40 Easy interfaces switch Simple main interface, operating interface, dynamic curve, engineering interface.
41 Inhibit Non-specific amplification Yes, Before running the cycle program, the block is cooled to 10°C until the hot lid temperature get set value during hot lid warming up.
42 Tube mode Yes, Precise control according to reagents volume.

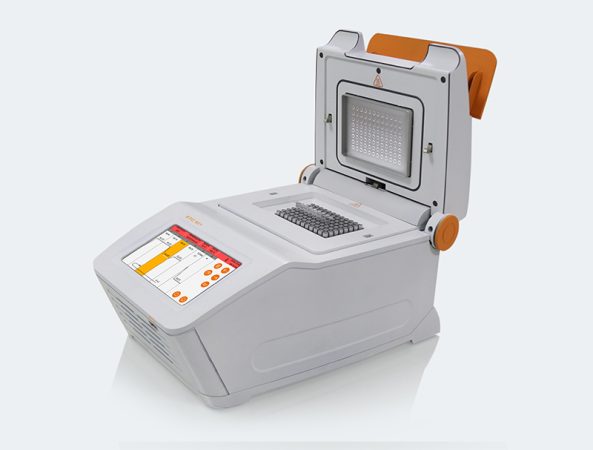

43 Adaptive lid Auto ada[pts to various heights of tubes (hightube, low tube, flat top tube and dome tube)
44 Smart gradient Yes, Dynamic power control ensures that the temperature of each column reaches the target synchronously.
45 Self-test when power on Yes
46 Auto report after running Yes
47 Self-diagnosis and report Yes
48 Soaking after running Yes
49 Memory function of power-down Yes
50 Total time / Remain time prediction Yes
51 Peltier life warning Yes, Automatically assess Peltier’s health status and give maintenance suggestions.
52 Screen calibration Yes
53 Block temperature calibration Yes, Engineering mode only.
54 Key tone On/off
55 Screen brightness adjustment Yes

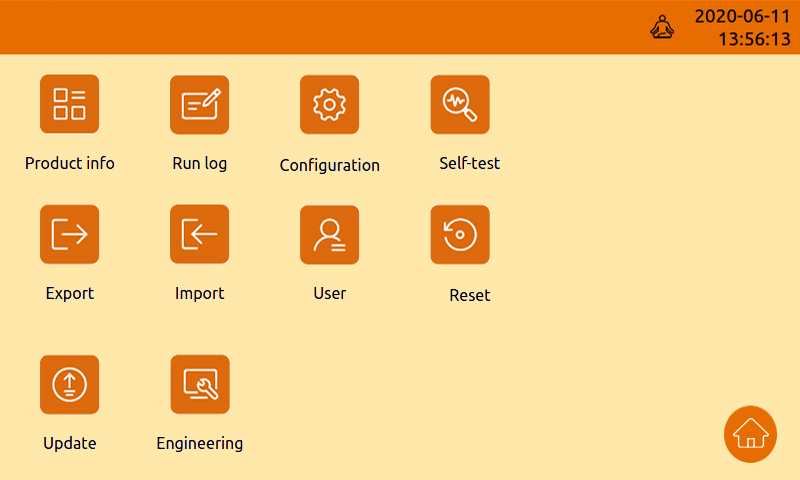

56 System Includes system configuration, self-test, factory setting, software upgrade, engineering interface (Engineering mode only)
57 Help Product features, software features, quick guides, error codes, contact information.
58 Interface language Chinese / English switch freely.
