As low as -5℃
Precise temperature control for heating and cooling between -5℃-110℃.

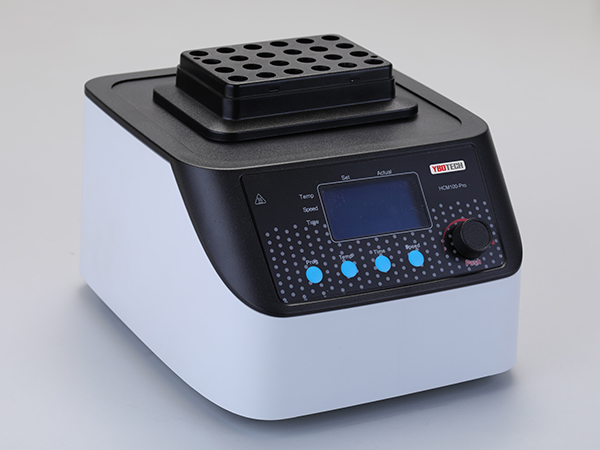

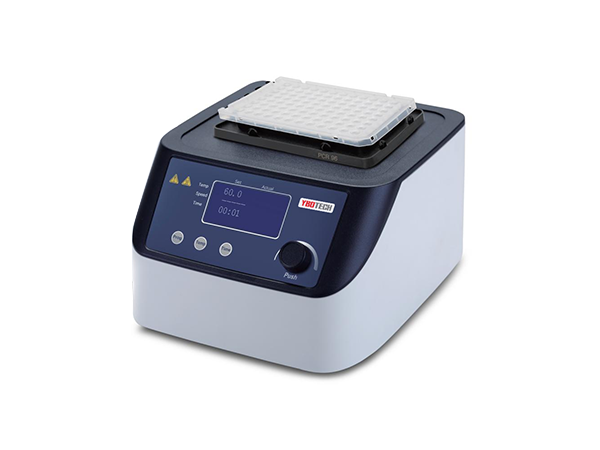

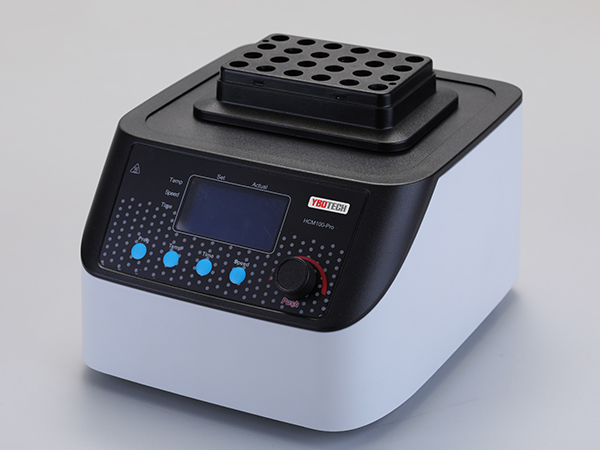

Thermo Mixer
YBOTECH Thermo Mixer provides precise temperature for various experiments. Thermo mix also has mixing function, and widely used in various fields such as molecular biology and cell biology, including gene synthesis, gene purification, gene cloning, gene expression, protein expression analysis , enzyme reaction, bacterial growth and so on.
Main Feature
- Fully programmable
- Precise temperature control for heating and cooling
- Real-time display of speed, temperature and time
- Excellent mixing (200-1500rpm)
- Quick interchange of blocks without tools and automatic block recognition
- Compatible with most popular tubes
- Block equipped with a lid for heat preservation
- Temperature self-calibration
- Compact, programmable and overheating protection for safe sample handling
- Precise temperature control for heating and cooling -5℃ to 110℃ for all major lab applications
- Interchangeable sample blocks available
- Most common application includes reagent warming/cooling, DNA extractions, enzymatic reactions and reactions that need to processed at or near room temperature.
Application
Precise and efficient heating/cooling and mixing is applicable for many applications such as Gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, and others.
Technical Specification
| Specifications | HCM100-Pro | HM100-Pro | HC110-Pro |
| Functions | Heating,cooling&mixing | Heating&mixing | Heating&mixing |
| Temperature range | RT15~100℃ | RT~100℃ | RT25~110℃ |
| Temp. setting range | 0~100℃ | 15~100℃ | 5~110℃ |
| Temperature control accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Temperatureuniformity | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Power | 200W | 200W | 200W |
| Time setting range | 0min~99h30min | 0min~99h30min | 0min~99h30min |
| Max. Heating Rate | 5.5℃/min | 5.5℃/min | 5.5℃/min |
| Max. Cooling Rate | 5℃/min (100℃-room temp) 0.5℃/min (below room temp) |
– | 2.5℃/min (100℃-room temp) 0.5℃/min (below room temp) |
| Mixing speed | 200~1500rpm | 200~1500rpm | – |
| Mixing orbit | 3mm | 3mm | – |
| Display | TFT | TFT | TFT |
| Program Memory | 9 | 9 | 9 |
| Overheating protection | 150℃ | 150℃ | |
| Voltage,Frequency | 110/220V,50/60HZ | 110/220V,50/60HZ | 110/220V,50/60HZ |
| External Dimension | 200x235X120mm | 200x235X120mm | 200x235X120mm |
| Weight | 7.3kg | 7.3kg | 7.3kg |
| Operating temperature | 10-40℃ | 10-40℃ | 10-40℃ |
| Operating humidity | ＜80%RH | ＜80%RH | ＜80%RH |
