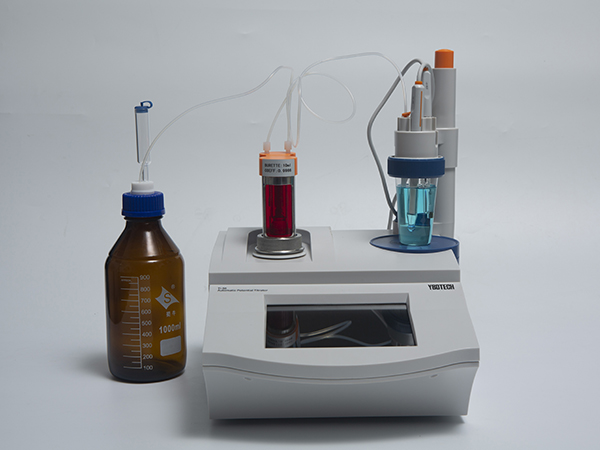

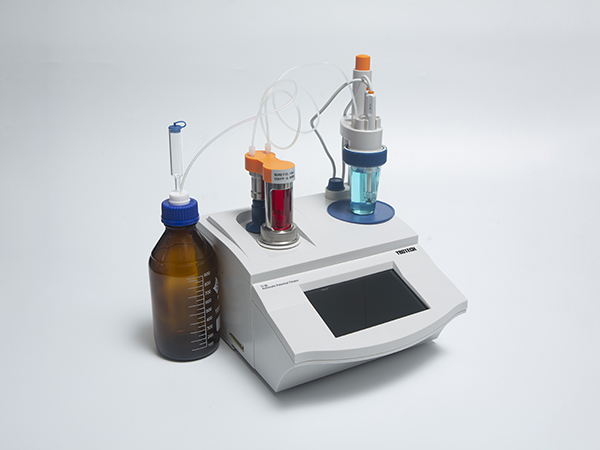

YBOTECH Ti-50 Automatic Potential Titrator.

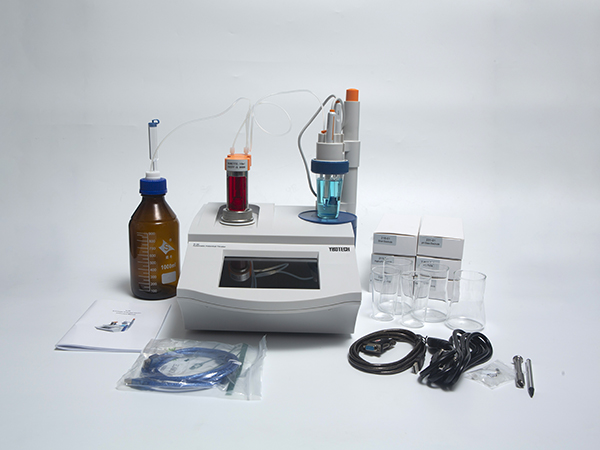

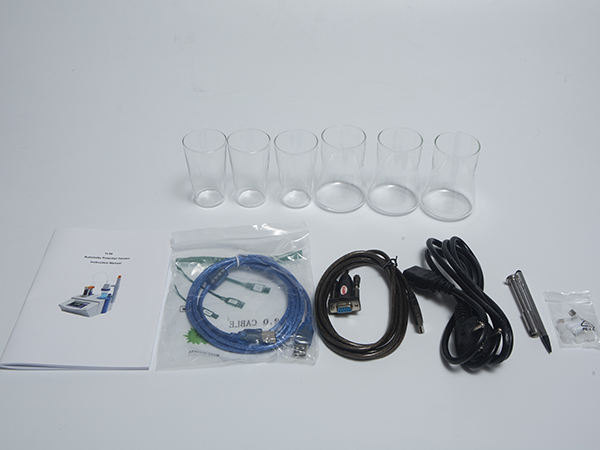

Packing Includes
- 10ml burette
- 232-01 referenc electrode
- 213-01 platinum electrode
- 216-01 silver electrode
- 217-01 referenc electrode
- 231-01 pH indicator electrode
- T-818-B-6 Temperature probe
- NIST pH standard solution(4.01, 7.00, 10.01), 50ml/vial
General Features

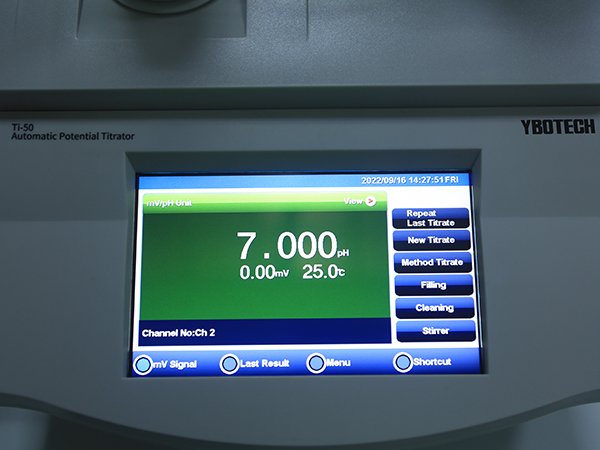

- 7” colorful touchscreen and smart guide system.
- Titration methods, curves and results are displayed in detail.
- 1 extra burette driver can be installed (optional).
- Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
- Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
- Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
- pH calibration and measurement are supported.
- Up to 100 user-defined methods and 10 user-defined shortcuts.
- Auto calculation with pre-defined formula.
Specification
| Model | Ti-50 | |
| Burette | Repeatability | 0.20% |
| Accuracy | 10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml | |
| Resolution | 10ml Burette: 1/20000; 20ml Burette: 1/10000 | |
| Mechanical Unit | Resolution | 1/30000 |
| Measuring Unit | Range | (-1999.0~1999.0) mv, (0.00~14.00)pH |
| Resolutions | 0.1mV, 0.01pH | |
| Accuracy | pH: ±0.01pH mv: ±0.03%FS | |
| Fluctuation | (±0.3mV±1bit) /3h | |
| Temp. Compensation | Range | (-5.0~105.0) ºC |
| Resolutions | 0.1 ºC | |
| Accuracy | ±0.3 ºC | |
| General | Power Supply | AC Adapter, 100-240V AC input, DC24V output |
| Dimension (mm)& Weight (kg) | 340×400×400; 10 | |
