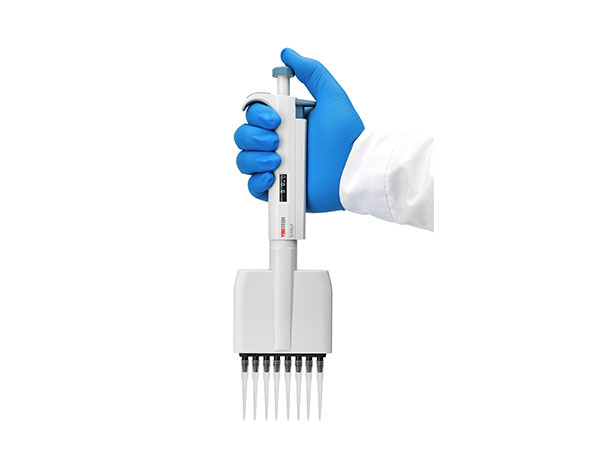

YBOTECH TopPette Multi-channel is commonly used in chemistry, biology and medicine to transport a measured volume of liquid, often as a media dispenser. Pipettes come in several designs for various purposes with differing levels of accuracy and precision, from single piece glass pipettes to more complex adjustable or electronic pipettes. Many pipette types work by creating a partial vacuum above the liquid-holding chamber and selectively releasing this vacuum to draw up and dispense liquid. Measurement accuracy varies greatly depending on the instrument.
Main Feature
- 8 and 12 channel pipettes are available for standard 96-well plate
- Dispensing head rotates for optimum pipetting convenience
- Individual piston and tip cone assemblies allow easy repair and maintenance
- Compound material tip cone design allows visual seal verification
- Can be used with universal style pipette tips
Technical Specification
| 8-channel Adjustable Pipettes | ||||||
| Volume Range | Increment | Test Volume (μl) | Accuracy error | Precision error | ||
| % | μl | % | μl | |||
| 0.5-10μl | 0.1μl | 10 | 1.50% | 0.15 | 1.50% | 0.15 |
| 5 | 2.50% | 0.125 | 2.50% | 0.125 | ||
| 1 | 4.00% | 0.04 | 4.00% | 0.04 | ||
| 5-50μl | 0.5μl | 50 | 1.00% | 0.5 | 0.50% | 0.25 |
| 25 | 1.50% | 0.375 | 1.00% | 0.25 | ||
| 5 | 3.00% | 0.15 | 2.00% | 0.1 | ||
| 50-300μl | 5μl | 300 | 0.70% | 2.1 | 0.25% | 0.75 |
| 150 | 1.00% | 1.5 | 0.50% | 0.75 | ||
| 50 | 1.50% | 0.75 | 0.80% | 0.4 | ||
| 12-channel Adjustable Pipettes | ||||||
| Volume Range | Increment | Test Volume（μl） | Accuracy error | Precision error | ||
| % | μl | % | μl | |||
| 0.5-10μl | 0.1μl | 10 | 1.50% | 0.15 | 1.50% | 0.15 |
| 5 | 2.50% | 0.125 | 2.50% | 0.125 | ||
| 1 | 4.00% | 0.04 | 4.00% | 0.04 | ||
| 5-50μl | 0.5μl | 50 | 1.00% | 0.5 | 0.50% | 0.25 |
| 25 | 1.50% | 0.375 | 1.00% | 0.25 | ||
| 5 | 3.00% | 0.15 | 2.00% | 0.1 | ||
| 50-300μl | 5μl | 300 | 0.70% | 2.1 | 0.25% | 0.75 |
| 150 | 1.00% | 1.5 | 0.50% | 0.75 | ||
| 50 | 1.50% | 0.75 | 0.80% | 0.4 | ||
