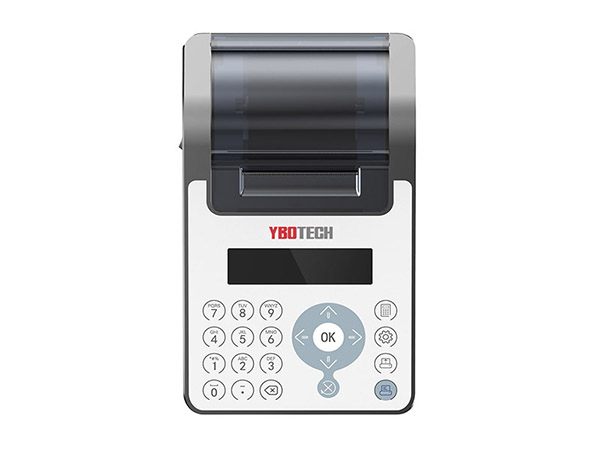

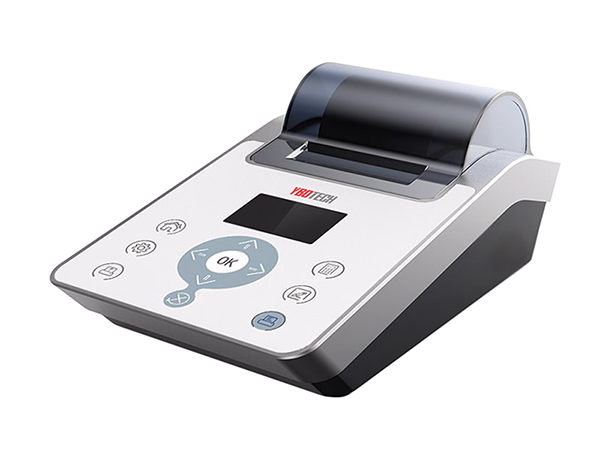

TX-180 Balance Printer

YBOTECHTX-180 Balance Printer, which has a streamlined appearance and an outstanding cost effective, completely meets the quality requirements of the chemical and pharmaceutical industry and GLP, GMP standard certification. From the most basic printing needs, to the wealth of applications, the TX-180 Balance Printer provides users with a flexible choice.

Inquire

Brochure Download

Feature

High-value
Beautiful, powerful and high reliability.
Fully compatible

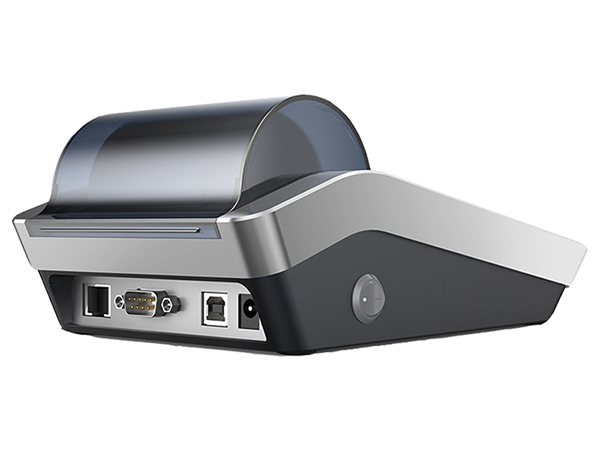

RJ45/RS232/USB interface for connection to virtually all balances/scales and other laboratory instruments.
Complete Keypad
Convenient and fast Input, support barcode scanner.
Large display
Information is readily available and supports multiple languages.
Audit trail
Record experiment results, user login,operation behavior/events, meet strict quality management requirements.
Dot matrix / thermal selectable.

Specification

Printing method: Impact dot
Inking: Ink ribbon (EPSON ERC-22 or ERC-09)
Printing format: 24 digits / line (5 × 7 dot matrix)
Character size: 1.7mm (W) × 2.6mm (H) ASCII
Paper: Regular paper 57.5mm width, 50mm in diameter
Printer mechanism durability: 1.5 million lines
Operation temperature range: 0-50°C
Input voltage: DC 12V (1.5A)
Interface: RS-232C
Gross weight (with packaging): 500g approx.

Physical dimensions

Product Specification

Model	TX-180	TX-181	TX-182	TX-183
Printing Method	Impact dot matrix	Impact dot matrix	Impact dot matrix	Thermal
Paper	Normal	Normal	Normal	Thermal paper Label paper
Display	128×64	256×64	256×64	256×64
Build-in clock	Y	Y	Y	Y
Digital/Character Key		Y	Y	Y
Name, Lot No., ID…	Y	Y	Y	Y
Barcode printing				Y
Barcode scanner support		Y	Y	Y
Data export			Y	Y
GLP compatible	Y	Y	Y	Y
Tare/G/N mode	Y	Y	Y	Y
Statistical	Y	Y	Y	Y
Formulation		Y	Y	Y
Curve printing		Y	Y	Y
“Minimum weight”		Y	Y
Authority management	2 level	2 level	3 level	2 level
Audit trail			Y
