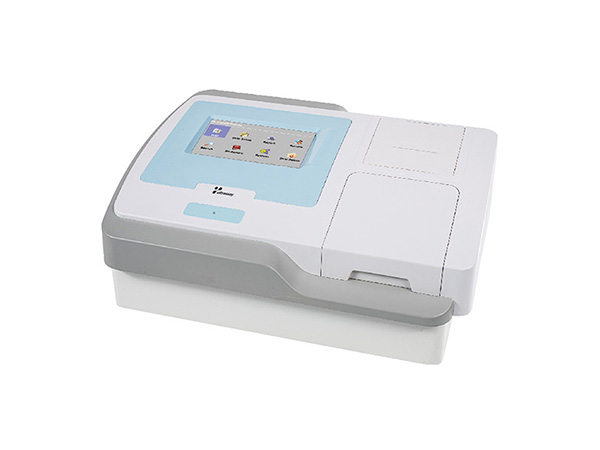

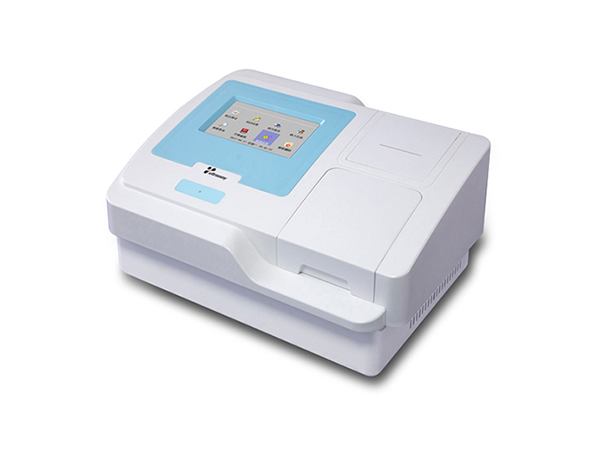

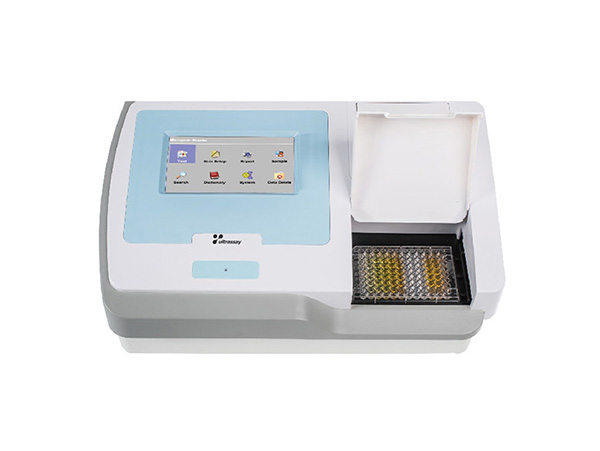

Ultrassay UB-DR-200Bc microplate reader is a high-quality microplate reader based on a Silicon Photodiode Filters with a wavelength range of 400~800 nm. It can be used for spectral scanning, endpoint method and kinetic detection. Suitable for 96-well plates and 384-well plates with and without lids.
Features
- New design and advanced operation system
- Touch screen with 7’ inch color LCD display
- 8 Channels optical fiber scanning
- Single or dual wavelength measurements
- Performing 12 different tests just in one plate
- Multiplicate report formats of patient information
- Auto Lamp adjustment and auto calibration
- Stable memory stores up to 200,000 test datas, 500 test projects
- User-friendly software, easy to programme and can update software online
- Easily connect to PC, Provide UltraDx ELISA Reader software
Technical Specification
| Light Source | 8V/50W Controlled tungsten halogen lamp |
| Wavelength Range | 400nm ~ 800nm |
| Standard Filters | 405, 450, 492, 630nm & 4 optional |
| Reading Range | 0.000 ~ 4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤ 0.2% |
| Stability | ±0.003A |
| Reading Speed | Single Wavelength ≤3s; Double Wavelenth ≤6s |
| Shaking | Linear Shaking, 3 speeds |
| Printer | Built-in Thermal printer, optional external printer |
| Interface Connection | USB-A, USB-B, RS-232 |
| Power Supply | 100 ~ 240V, 50 ~ 60Hz |
| Dimension | 475(L) x 350(W) x 210(H)mm |
| Net Weight | 11.5kg |
